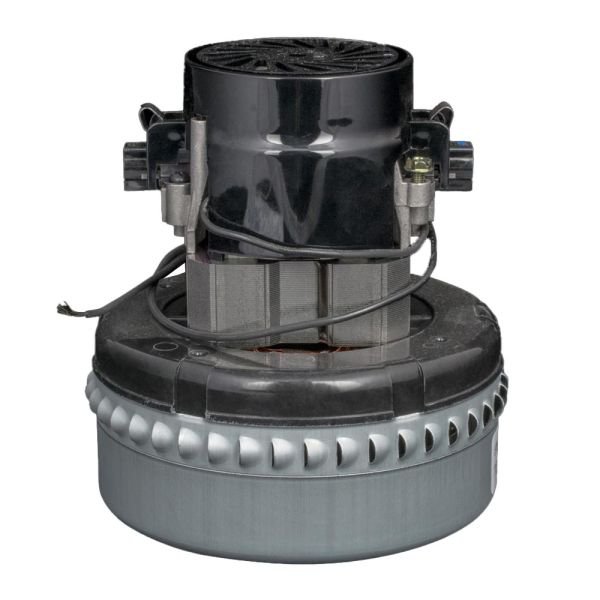

Ametek-Lamb 116336 Central Vacuum Motor

Product may vary from image displayed.
Attention Consumer

10 Reasons to Replace Your Power Unit
Instead of your Central Vacuum Motor

This genuine Ametek-Lamb 116336 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 116336 motor and would rather upgrade your system please call us at 1-800-322-2965.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33326-1
  • Motor Stages 2

Recommendation: *When purchasing a new motor, we highly recommend buying a spare set of carbon brushes and changing your motor carbon brush every 2-3 years.

Easy Ordering
As Simple As 1-2-3
Product Quantity
Final Price
  • Customer Reviews (0)
  • Question & Answers (0)

Customers Also Purchased These Related Items

Read about the Ametek-Lamb 116336 Central Vacuum Motor

 Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 116336 is the Replacement Motor for the Following Central Vacuum Models

  • AirVac 180
  • AirVac 180A
  • AirVac 550
  • AirVac VM180A
  • AirVac AV550
  • AirFlo CFM2
  • AirFlo CFM3
  • Beam 660
  • Broan CV-180
  • Broan CV-181
  • Broan V180C
  • Brute 99226
  • Brute 99225
  • C.V. Int CV7
  • C.V. Int CV07
  • C.V. Int CVS07
  • C.V. Int CVS07DP
  • DustCare 2000
  • DustCare 3000C
  • Fasco 851DM

Ametek-Lamb 116336 is also the Replacement Motor for the Following Additional Models

  • Fasco 840
  • Fasco 853
  • Fasco 852SVDM
  • MD B2
  • MD E3
  • NuTone CV570
  • WalVac 234
  • WalVac 325
  • WalVac 330
  • WalVac 350
  • WalVac 834

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30 day return policy.

Specifications of the Ametek-Lamb 116336 Central Vacuum Motor

  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33326-1
  • Motor Stages 2
  • Motor Speeds 1
  • Motor Type Series Universal
  • Motor Frequency 50/60Hz
  • Motor Fan Diameter 5.700
  • Fan System Style Bypass
  • Air Discharge Peripheral
  • Motor Low Temp 32.000
  • Motor High Temp 104.000
  • Motor Bearing Ball/Sleeve
  • Motor Comm Bracket Material Aluminum
  • Motor Fan Bracket Material Plastic
  • Motor Insulation Class A
  • Motor Fan Shell Coat none
  • Motor Duty Cycle Intermittent
  • Motor Electrical Connection Lead Wires
