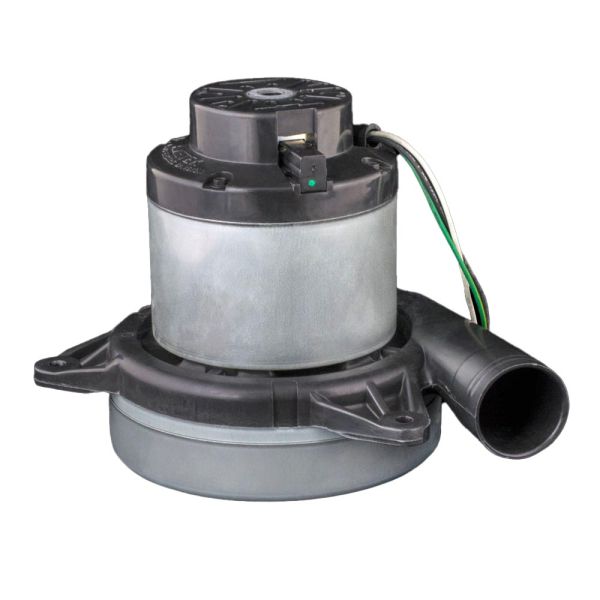

Ametek-Lamb 117467 Central Vacuum Motor

Product may vary from image displayed.

Recommendation: Click Here for 10 Reasons to Replace Your Power Unit, Instead of your Central Vacuum Motor

This genuine Ametek-Lamb 117467 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 117467 motor and would rather upgrade your system please call us at 1-800-322-2965.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33410-2
  • Motor Stages 2
Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product Quantity
Final Price
  • Customer Reviews (0)
  • Question & Answers (0)

Customers Also Purchased These Related Items

Read about the Ametek-Lamb 117467 Central Vacuum Motor

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 117467 Replacement Motor for the Following Central Vacuum Models

  • AstroVac MK-V
  • AstroVac SR-22
  • AstroVac SR-50
  • AstroVac SR-60
  • AstroVac SR-72
  • Beam 287
  • Beam 287S/SP
  • Beam 287C
  • Beam 294
  • Beam 297
  • Beam 297S
  • Beam 297SP
  • Beam 297C
  • Beam SR-72
  • Beam 310
  • Beam 875
  • Beam 875B
  • Beam 2875
  • Beam 2875A
  • Beam 387

Ametek-Lamb 117467 Replacement Motor for the Following Additional Models

  • Beam 387A
  • Budd 5807
  • Budd 1602
  • Budd 1914P
  • Budd 1914S
  • Budd 25807P
  • Budd 25807S
  • Eureka CV1200
  • Eureka CV900
  • Modern Day SV 110V
  • NuTone CV550
  • Vacumaid H-1
  • Vacumaid P-118
  • Vacumaid P-128
  • Vacumaid PX-120
  • Vacumaid S2000
  • WalVac 425

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30 day return policy.

Specifications of the Ametek-Lamb 117467 Central Vacuum Motor

  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33410-2
  • Motor Stages 2
  • Motor Speeds 1
  • Motor Type Series Universal
  • Motor Frequency 50/60Hz
  • Motor Fan Diameter 7.200
  • Fan System Style Bypass
  • Air Discharge Tangential
  • Motor Low Temp 32.000
  • Motor High Temp 104.000
  • Motor Bearing Ball
  • Motor Comm Bracket Material Plastic
  • Motor Fan Bracket Material Plastic
  • Motor Insulation Class A
  • Motor Fan Shell Coat none
  • Motor Duty Cycle Intermittent
  • Motor Electrical Connection Lead Wires

Available Downloads for the Ametek-Lamb 117467 Central Vacuum Motor

Download Part List
