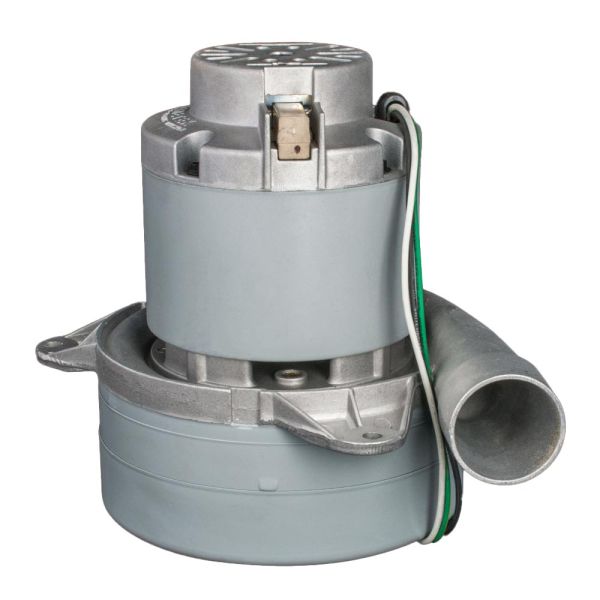

Ametek-Lamb 117500-12 Central Vacuum Motor

More Views
Product may vary from image displayed.
Attention Consumer

10 Reasons to Replace Your Power Unit
Instead of your Central Vacuum Motor

This genuine Ametek-Lamb 117500-12 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 117500-12 motor and would rather upgrade your system please call us at 1-800-322-2965.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 833450-57
  • Motor Stages 3

Recommendation: *When purchasing a new motor, we highly recommend buying a spare set of carbon brushes and changing your motor carbon brush every 2-3 years.

Easy Ordering
As Simple As 1-2-3
Product Quantity
Final Price
  • Customer Reviews (0)
  • Question & Answers (0)

Customers Also Purchased These Related Items

Read about the Ametek-Lamb 117500-12 Central Vacuum Motor


Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 117500-12 Replacement Motor for the Following Central Vacuum Models:

  • Airking AKCVQZ99
  • AirVac AV700
  • AirVac AV4500
  • AirVac AV5500
  • AirVac ZX7000
  • Aqua Air 150
  • Aqua Air 250
  • Beam 397
  • Beam 397B
  • Beam 397C
  • Beam 875B
  • Beam 2250
  • Beam 2250F
  • Beam 397A
  • Beam 2250
  • Beam 2250A
  • Beam 2250B
  • Beam 2250C
  • Eureka 2301
  • Eureka CV1851A
  • Ametek-Lamb 117500-12 Replacement Motor for the Following Additional Models
  • Eureka CV2301A
  • Eureka CV2301B
  • Eureka CV2301BF
  • Eureka CV2301C
  • Eureka CV2301D
  • Eureka CV3331B
  • Hayden SV90
  • Hoover 5640
  • Dust Care DCC4
  • Hayden 9000
  • NuTone CV556
  • WalVac 465
  • Frigidaire FGCV319SQ

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30 day return policy.

Specifications of the Ametek-Lamb 117500-12 Central Vacuum Motor

  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 833450-57
  • Motor Stages 3
  • Motor Speeds 1
  • Motor Type Series Universal
  • Motor Frequency 50/60Hz
  • Motor Fan Diameter 7.200
  • Fan System Style Bypass
  • Air Discharge Tangential
  • Motor Low Temp 32
  • Motor High Temp 104
  • Motor Bearing Ball
  • Motor Comm Bracket Material Aluminum
  • Motor Fan Bracket Material Aluminum
  • Motor Insulation Class A
  • Motor Fan Shell Coat none
  • Motor Duty Cycle Intermittent
  • Motor Electrical Connection Lead Wires

Available Downloads for the Ametek-Lamb 117500-12 Central Vacuum Motor
