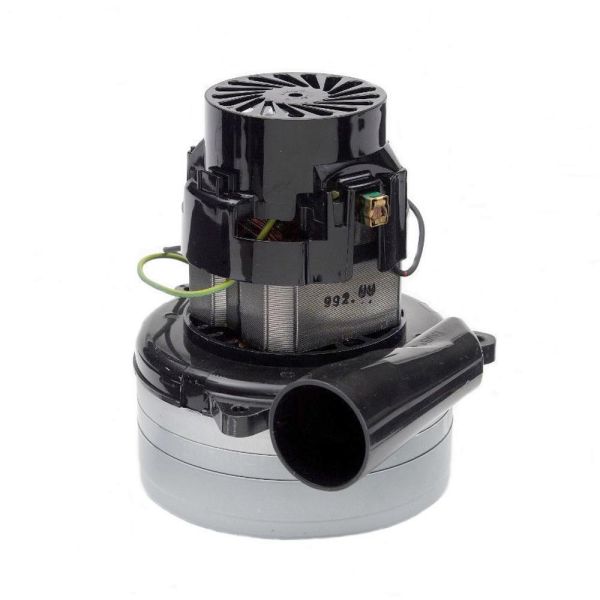

Ametek-Lamb 119956 Central Vacuum Motor

More Views
Product may vary from image displayed.
Attention Consumer

10 Reasons to Replace Your Power Unit
Instead of your Central Vacuum Motor

$99.00
This genuine Ametek-Lamb 119956 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 119956 motor and would rather upgrade your system please call us at 1-800-322-2965.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33505-1
  • Motor Stages 2

Recommendation: *When purchasing a new motor, we highly recommend buying a spare set of carbon brushes and changing your motor carbon brush every 2-3 years.

Easy Ordering
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Product Quantity
2DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$99.00
3
  • Customer Reviews (0)
  • Question & Answers (0)

Read about the Ametek-Lamb 119956 Central Vacuum Motor

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes. We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation. * Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated. * In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30 day return policy.

Specifications of the Ametek-Lamb 119956 Central Vacuum Motor

  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33505-1
  • Motor Stages 2
  • Motor Speeds 1
  • Motor Type Series Universal
  • Motor Frequency 50/60Hz
  • Motor Fan Diameter 5.700
  • Fan System Style Bypass
  • Air Discharge Tangential
  • Motor Low Temp 32.000
  • Motor High Temp 104.000
  • Motor Bearing Ball
  • Motor Comm Bracket Material Plastic
  • Motor Fan Bracket Material Plastic
  • Motor Insulation Class A
  • Motor Fan Shell Coat none
  • Motor Duty Cycle Intermittent
  • Motor Electrical Connection Lead Wires
