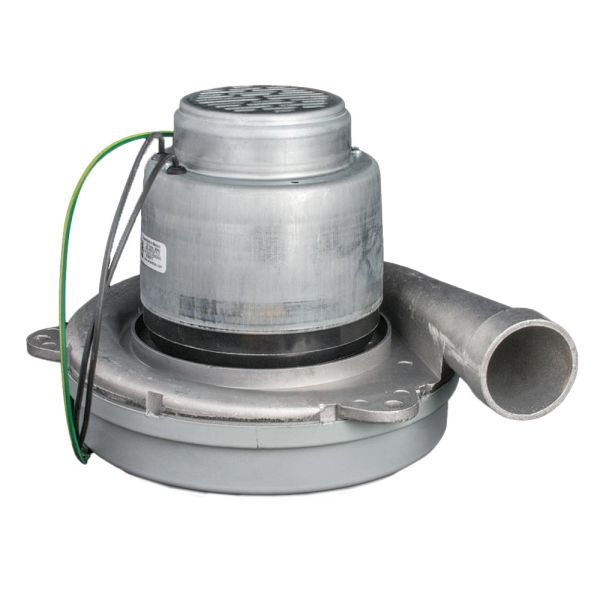

Ametek-Lamb 122175-00 Central Vacuum Motor

More Views
Product may vary from image displayed.
MT:0000

Recommendation: Click Here for 10 Reasons to Replace Your Power Unit, Instead of your Central Vacuum Motor

$418.00
In stock
SKU
MT:0000
$418.00

Compatible with the following Brands & Models
(hover over each)

  • Cana-VacCana-Vac 911XLS
This genuine Ametek-Lamb 122175 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 122175 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33415-4

central vacuums usa

Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product-Smiley
1SELECT PRODUCT OPTIONS
2 DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$418.00
3

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated. Do you have a broken or bad central vacuum motor? If so you have come to the right place. Replace your Ametek-Lamb 122175 central vacuum motor.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.

The Ametek 122175 Motor Fits The Following Central Vacuum

  • Cana-Vac 911XLS
Replacement Part Type Motors
Voltage 120
Carbon Brush 33415-4
Motor Watts 673
Motor Stages 2
Motor Speeds 1
Motor Type Series Universal
Motor Frequency 50/60Hz
Motor Fan Diameter 8.400
Fan System Style Bypass
Air Discharge Tangential
Motor Low Temp 32.000
Motor High Temp 104.000
Motor Bearing Ball
Motor Comm Bracket Material Aluminum
Motor Fan Bracket Material Aluminum
Product Width (Inches) 9.25
Product Height (Inches) 6.25
