VacPan II VCPW02-WM Dual Function Dustpan

Product may vary from image displayed.
$41.74
The VACPAN II is a dual function central vacuum inlet valve system that will add new dimension of convenience to your central vacuum system by complimenting your broom with the power of a central vac. With the VacPan II you can now brush dirt and debris toward the powerful suction to make your floor clean - instantly!
  • Auto-On Inlet:Yes
  • General Construction Material:ABS Plastic
  • Color:White
  • Weight (lbs):0.0000
  • Product Width (Inches):0.00
  • Product Height (Inches):0.00
  • Product Length (Inches):0.00
  • Qty Per Pack:0
  • VIEW ALL SPECS
Easy Ordering
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Product Quantity
2DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$41.74
3
  • Customer Reviews (0)
  • Question & Answers (0)

Read about the VacPan II VCPW02-WM Dual Function Dustpan

The VacPan II is a must have for any new or existing central vacuum system

VacPan II Dual Function Inlet Valve System for Central Vacuum SystemsThe VACPAN II is a dual function central vacuum inlet valve system that will add new dimension of convenience to your central vacuum system by complimenting your broom with the power of a central vac. With the VacPan II you can now brush dirt and debris toward the powerful suction to make your floor clean - instantly! Plus the VacPan II Dual Function Central Vac Inlet Valve System offers added convenience of a standard hose inlet in one compact design. The original VacPan, installs flush mounted into your baseboard or cabinet kickplate. VacPan II or Original VacPan Automatic Dustpan models provides unique benefits that allow you to choose the right model for each room. The Original VacPan & VacPan II can be installed on a new or existing central vacuum also in any combination!



VacPan II Installation

Plan the location of your VacPanII to be conveniently located for sweeping clean-ups. Also consider ease of access of vacuum tube piping connections during installation.

Use Plastiflex part #SV8001 Standard Mounting Bracket for connecting VacPanII to vacuum tube piping.

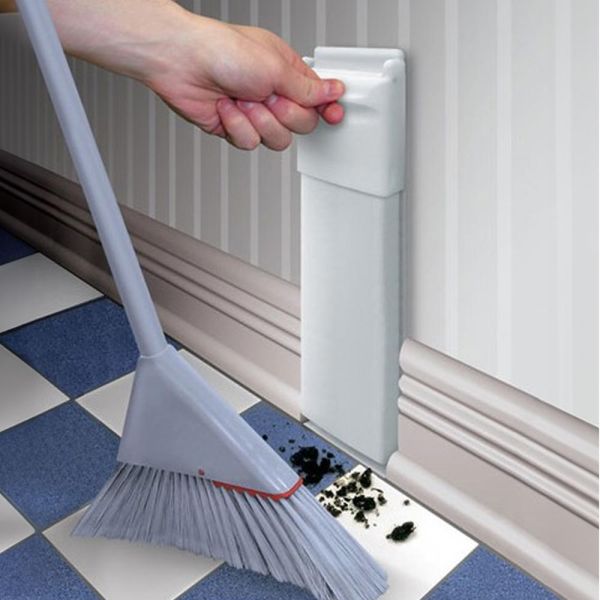

Large example of the VacPan II Dual Function in action!New Construction Installation

  • VacPan II Wall Mount installs inside wall with a minimum stud width of 2-3/4"

  • VacPan II should be located against wall stud.

  • Once the VacPan II location is determined and prior to applying the wallboard, attach Plastiflex part #SV8001 Standard Mounting Bracket to the wall stud at desired height up to 16" from sub-floor to centre of vacuum tube piping.

  • Run vacuum tube piping and low voltage wire from the main line to VacPan II location and attach to mounting bracket.

  • Allow other trades to complete house construction like finished flowing and trim.

  • Remove baseboard trim from area.

  • Attach low voltage wires to VacPanII terminal connections.

  • Slide VacPanII into mounting bracket and secure to wall using two #10 X 1-1/2" screws provided. CAUTION: Do not over-tighten mounting screws as VacPanII operation can be affected.

  • Cut VacPan II extension tube back plate to length to fit between VacPan II valve and finished floor.

  • Slide entrance ramp onto VacPan II extension tube back plate.

  • Drill two 1/8" holes through extension tube back plate and attach to wall using two #8 3/4" screws and wall plugs provided.

  • Measure the distance from the finished floor to the top of the channel grooves on the VacPan II valve. Subtract 1/2" from the measurement to allow for sweep opening. Cut the extension tube channel to the determined length. Rough cut edges can be placed at the top and hidden under VacPan II top cover.

  • Snap extension tube channel over extension tube back plate & VacPan II valve.

  • Re-attach baseboard trim cutting it for a flush fit to your new VacPan II Wall Mount Dual Function Central Vacuum Inlet System.

Existing Wall Installations

  • VacPan II Mounts in Wall at Floor LevelVacPan II Wall Mount can be installed inside any wall with a minimum stud width of 2-3/4" or cabinet end gable. Once the VacPan II location is determined, remove any baseboard trim from the area.

  • Cut a 4-1/4" x 2-3/8" hole in the wallboard, at the desired height up to 16" from the floor to the centre of vacuum tubes piping, to accept Plastiflex part #SV8001 Standard Mounting Bracket. Break off the "new construction flange" of the mounting bracket. If using other mounting brackets, cut an appropriate sized hole so that centre of vacuum tube piping is up to 16" above the floor.

  • Run vacuum tube piping and low voltage wire from the main line to VacPan II location and attach to mounting bracket.

  • Attach low voltage wires to VacPan II terminal connections. Slide VacPan II into mounting bracket and secure to wall using two #10 x 1-1/2" screws provided. CAUTION: Do not over-tighten mounting screws as VacPan II operation can be affected.

  • Cut VacPan II extension tube back plate to length to fit between VacPan II valve and finished floor.

  • Drill two 1/8" holes through extension tube back plate and attach to wall using two #8 x 3/4" screws and wall plugs provided.

  • Measure the distance from the finished floor to the top of the channel grooves on the VacPan II valve. Subtract 1/2" from the measurement to allow for sweep opening. Cut the extension tube channel to the determined length. Rough cut edges can be placed at the top and hidden under VacPan II top cover.

  • Snap extension tube channel over extension tube back plate and VacPan II valve.

  • Re-attach baseboard trim cutting it for a flush fit to your new VacPan II Wall Mount - Dual Function Central vacuum Inlet System.

VacPanII Operating Instructions

  • VacPan II Wall Mount - Dual Function Central Vacuum Inlet System can be used as both a sweep inlet and a standard hose inlet.

  • For Sweep Inlet operation, slide top cover up, automatically switching on central vacuum system. Sweet material into opening. When complete, slide top cover down, automatically shutting off central vacuum system.

  • For Standard Hose Inlet operation, ensure top cover is in fully lowered position. Grasp side finger grips in top cover and flip top cover up. The top cover will lock out of the way. Lift sprung flapper door open and insert central vacuum hose. Use your central vacuum hose as you would with any other standard inlet valve.

Inlet Types and Installation Diagrams

VacPan II Sweep Inlet and Standard InletVacPan II Installation Diagram Showing Mounting PlateVacPan II Installation Showing Covering Plages and Wall Mount

Specifications of the VacPan II VCPW02-WM Dual Function Dustpan

Color : White

Motor Status Indicator? : No

Bag Full Indicator? : No

Replace Filter Indicator? : No

Filter Washable? : No

Wet/Dry Capable? : No

Drain Required? : No

Motor Safety Shutoff : No
