Vacuflo 566Q Central Vacuum System | Think Vacuums

The Vacuflo 566Q with Cyclonic Filtration Technology® (CFT™) is the perfect cyclonic system for homes up to 8000 square feet. The price is affordable for a system like this, and the quality is incredible! Cyclonic Filtration Technology (CFT) is a unique dual filtration process that utilizes cyclonic separation for primary filtration and either an outdoor exhaust (True Cyclonic units) or pleated filter (Filtered Cyclonic™ units) for minor filtration.

Vacuflo central vacuum cleaners are manufactured here in the USA with attention to detail. The systems are all steel with heavy duty Lexan debris canisters. These are the specifications of the Vacuflo 760. Reach out to us if you have any enquiries regarding the Vacuflo 566Q central vacuum.

What are the Specifications of the Vacuflo 566Q Central Vacuum System?

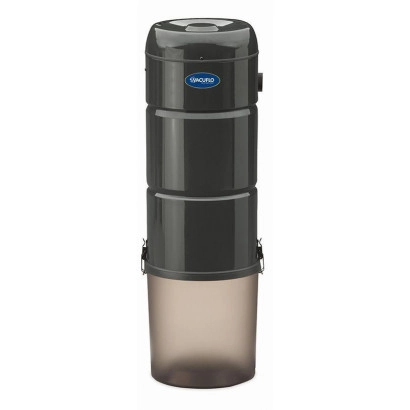

 Vacuflo 566Q Central Vacuum System

  • Air Watts - 535
  • Max Amps- 15.6
  • Square Footage - 8000
  • Water Lift - 135"
  • CFM - 118
  • Voltage - 120
  • Sound (DB) - 60.7
  • Warranty - Limited Period
  • Dirt Capacity - 6 Gallons
  • Dimensions - 40 1/4"H x 12 5/8"D

Why  Vacuflo 566Q Central Vacuum System?

You should use this central vacuum system because:

Wide variety of units to house any home size

  • The large volume dirt receptacle
  • No filters or bags needed
  • Needed to be exhausted outside
  • Limited Lifetime Warranty
  • Eliminates 100% of vacuumed dust, dirt, allergens, and remains from the house
  • Gathered  by a reliable name in the industry
  • Offers whole-house cleaning with one modest system

HI Have Low Pressure at the End of Handle of the Hose, What Might the Problem Be?

1. Make sure that the filter is not changed. It should be replaced at least once a year.

2. Have you just had renovation work done in your house that a screw or nail could have been inserted in the vacuum tubing?

3. Ensure that all other accessories and valves such as a Vroom or VacPan are not in operation and are closed properly.

4. There could be a jam in the hose. Bend a dry garden pipe from the wall-end of the tube to remove any clog that may have happened.

5. If you still get low suction, does it happen at all inlet valves, or just at one valve? If only one valve, most probably, there is a clog near to that valve. Check inside the valve and see if the clog is noticeable. If not, unblock the power system and take away the dirt canister.

The Vac Tubing positioned Near my Power Unit Has a Black film on it, what is It?

Vacuflo 566Q Central Vacuum System kitThis film is carbon powder that is produced by the tearing down of the mechanical brushes. This is not a pointer of the bad motor act, only that the motor is being utilized. This powder typically accrues on the PVC tube that connects to your system on the right side since the tubing has a motionless electric charge that traps small dust elements.

My power unit will not turn on, what can I do?

1. Look at the breaker in your electrical plate and retune if needed.

2. Check to see if the re-tune button on the power system itself has burst out. The reset button is positioned on the upper left-hand side of the system above where the low voltage cables connect into the unit. Most visible when burst out after the breaker has been tumbled.

3. Ensure that the power system did not get unplugged unintentionally.

4. If the power system still does not turn on, try plugging another appliance such as a  lamp or hairdryer into the plug your power system was in. If the test appliance does not work, most probably, there is a problem with the electrical holder. Reach out to an electrician.

Why Think Vacuums?

Think Vacuums is a licensed dealer of Central vacuum systems. We are a trusted, top award-winning central vacuum dealer. Our well-trained and highly educated staff of qualified technicians and customer service agents can help you in case you have any questions regarding the Vacuflo 566Q central vacuum system. You can order the central vacuum system online through our website: from the comfort of your home.

For all purchases above $50, we offer free shipping to your home or office. Reach out to us today on our toll-free line: 800-322-2965 or local: 954-341-2760 and order your Vacuflo 566Q central vacuum system.
