Wall Inlets

Wall Inlets

Wall Inlets For VacuMaid Central Vacuums

mounting brackets

A vacuum wall inlet valve is a door or port that allows a 1.5" standard diameter hose to fit into its receptacle to connect to the piping of a   central vacuum system.

Why do I need to use a central vacuum inlet?

To allow a place to insert your   central vacuum hose. When the Central Vacuum Hose is inserted into the outlets, it will then activate the   central vacuum unit to turn on. This will activate a circuit via a metal band located at the end of a typical central vacuum hose. This, in turn, sends a low-voltage signal telling the main central vacuum to turn on. There are some exceptions if you might have a VacuFlo or Budd, Sears central vacuum as these are unique to these specific brands.

mounting brackets

What kind of central vacuum inlets are there?

Most Inlets consist of standard universal, low voltage inlets or electric (direct connect) inlets, aka super valves which require 120 volts as well as low-voltage wiring.

Will these wall inlets work with my   Built-In Vacuum system?

Yes. Our Inlets are fully compatible with your   Central Vacuum and keep in mind that Central Vacuum Inlets come in different sizes, colors, and dimensions to suit the decor of your home. Most inlet openings measure 1.5" in diameter (excluding some Vacuflo, Budd, and Sears wall inlets) to accommodate 99% of all central vacuum hoses on the market today including   Central Vacuum Systems.

  1. As low as $15.95

    FREE SHIPPING over $50
  2. $129.95
    FREE Shipping
  3. $4.95
    FREE SHIPPING over $50
  4. $9.95
    FREE SHIPPING over $50
  5. Was $13.95

    Save $2.00 (14%) through 12/13/2024

    Save: 14%

    On Sale: $11.95
    Save $2.00 through 12/13/2024

    $11.95

    Save: -14%
    FREE SHIPPING over $50
  6. price $6.95
    FREE SHIPPING over $50
  7. price $38.00
    FREE SHIPPING over $50
  8.

    BEST SELLER
    Central Vacuum Innovation Wall Inlet Valve Central Vacuum Innovation Wall Inlet Valve
    price $17.95
    FREE SHIPPING over $50
  9. price $19.95
    FREE SHIPPING over $50
  10. price $24.95
    FREE SHIPPING over $50
  11. price $14.90
    FREE SHIPPING over $50
  12. price $13.90
    FREE SHIPPING over $50
  13. price $24.95
    FREE SHIPPING over $50
  14. price $24.95
    FREE SHIPPING over $50
  15. price $16.95
    FREE SHIPPING over $50
  16. price $19.00
    FREE SHIPPING over $50
  17. price $19.95
    FREE SHIPPING over $50
  18. price $13.95
    FREE SHIPPING over $50
  19. $11.95
    FREE SHIPPING over $50
  20. $6.95
    FREE SHIPPING over $50
  21. $5.95
    FREE SHIPPING over $50
  22. $11.95
    FREE SHIPPING over $50
  23. $4.95
    FREE SHIPPING over $50
  24. $9.95
    FREE SHIPPING over $50
  25. $9.95
    FREE SHIPPING over $50
  26. price $9.95
    FREE SHIPPING over $50

How Do I Install a Central Vacuum Wall Inlet?

When installation of a [brandname] central vacuum is completed and all the pipes are run throughout the house, these pipes all lead to intake ports, otherwise known as "central vacuum wall inlets". These inlet valves are secured to a central vacuum mounting bracket that connects to the piping behind the walls. When you want to vacuum you will take a central vacuum hose and insert it into the wall inlet. These ports are connected to low voltage wiring that runs from one inlet to the next all along the piping back to the [brandname] built-in vacuum system. When the vacuum hose is pushed in to the inlet, it makes contact and a low-voltage signal is sent to the [brandname] central vacuum to start up and turn on the system. The majority of homes use plastic wall inlets but you can also purchse them in metal. They can be installed either on the wall or in some cases in the floor. Call our friendly and knowledgeable staff at 1.800.322.2965 for more information about wall valves.

How Do I Find a Compatible Wall Inlet?

There are many different designs of central vacuum wall inlets and it is important to make sure when selecting wall inlets that they are compatible with the mounting bracket installed during the time of installation. Most inlets insert into a universal style mounting bracket; however, there are some proprietary designs that require their own bracket. Such inlets include Genuine Vacuflo wall inlets, Nutone 360 style inlet valves as well as older style ports for brands such as Budd and Sears/Kenmore central vacuums.

Some inlet valves, or otherwise known as Designer Series Valves, may be more esthetic and attractive on your walls. If you have a Budd or Sears/Kenmore central vacuum and are looking to replace your wall inlets please call our friendly and knowledgeable staff at 1.800.322.2965 for assistance to determine what inlets will work with your existing set-up.

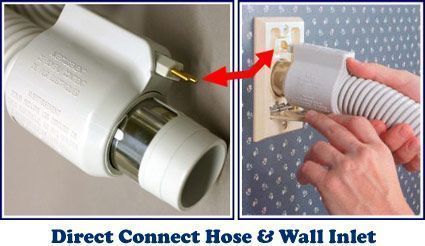

What Is The Difference Between a Low-Voltage Inlet and an Electrified Inlet?

Besides design styles, [brandname] central vacuum inlets are divided into mainly two styles: low-voltage inlets and electrified inlet vales. The electrified inlets are also known as direct connect inlets or super valves and require low-voltage wiring and 110/120-volt Romex wiring to supply power for an electrified hose and carpet attachment. This is a nice featured for homes with a lot of carpeting so you can use an electric power nozzle to clean with and offers a nice clean installation without any messy cords. You simply plug your [brandname] central vacuum hose into the direct connect inlet and you get everything powered up by one shot. With universal low-voltage inlets you still have the ability to use an electric powered hose and attachments; however, these will require what is known as a pigtail style hose. This style hose inserts into the valve and you are able to turn the suction on via an on/off switch at the handle shorting the low-voltage signal and turning the [brandname] central vacuum on. In order for you to electrify the powered carpet attachment, you will be required to plug a separate cord that is integrated into the wall end of the hose into a nearby wall socket. If you are planning your [brandname] installation make sure you determine what style inlets you want to install and make the proper accommodations before installation is complete to make sure your hoses and attachments will operate properly.

Need Installation Hardware With Your Wall Inlets? We carry everything you need for a complete installation.
