Sanitaire SC888 Vacuum Parts Schematic
List of Sanitaire SC888 Commercial Vacuum Parts, Schematics, and Wiring Diagrams
Got Questions? Live Experts Standing By 800-322-2965
SC888 Instruction Manual
| 1. 53143 Shoulder Screw (1) |
| 2. 26833-1 Adjustmnet Knob |
| 3. 12600-22 Lens |
| 4. 60192-1 Wire Splice (3) |
| 5. 37514 Headlight Socket Assembly |
| 6. 53238-14 Motor Mount Screw (3) |
| 7. 56379 Air Inlet Duct Assembly |
| 8. 49052-3 Foam Tape |
| 9. 25461A Shield |
| 10. 55296 Wire & Terminal Assembly |
| 11. 53213-4 Nut (1) |
| 12. 53097 Foot Pedal Spring (1) |
| 13. 53238-14 Adjustment Screw |
| 14. 53140 Clamp & Screw Assembly |
| 15. 55726-18 Base Assembly |
| 16. 24964A-1 Cam (RH) |
| 17. 24965A-1 Cam (LH) |
| 18. 53118 Rivet Cam (2) |
| 19. 53133 Washer (2) |
| 20. 53117 Hood Spring (2) |
| 21. 30517 Motor Seal Gasket |
| 22. 53238-14 Screw (2) |
| 23. 53122 Strain Relief Bushing |
| 24. 54098-1 Hood & Namplate |
| 25. 37654 Nameplate |
| 26. 55754 Decal |
| 27. 36409-13 Push Switch |
| 28. 53102 Switch Washer (1) |
| 29. 55446 Switch Nut |
| 30. 54173-1 Wire & Terminal |
| 31. 40009A Headlight |
| 32. 53228-2 Clip Screw (1) |
| 33. 53160 Cable Clamp (1) |
| 34. 53238-29 Motor Screw (1) |
| 35. 54352-3 Motor Assembly |
| 36. 56380 Air Inlet Duct (LH) |
| 37.49052-3 Foam Tape |
| 38. 30517 Motor Seal Gasket |
| 39. 53228-2 Screw |
| 40. 24834A-5 Foot Pedal |
| 41. 37034 Adapter Retainer Spring |
| 42. 53228-2 Retainer Screw |
| 43. 36263 Wheel Cover |
| 44. 52334 Fan Chamber Kit |
| 45. 13770-1 Chamber Cover |

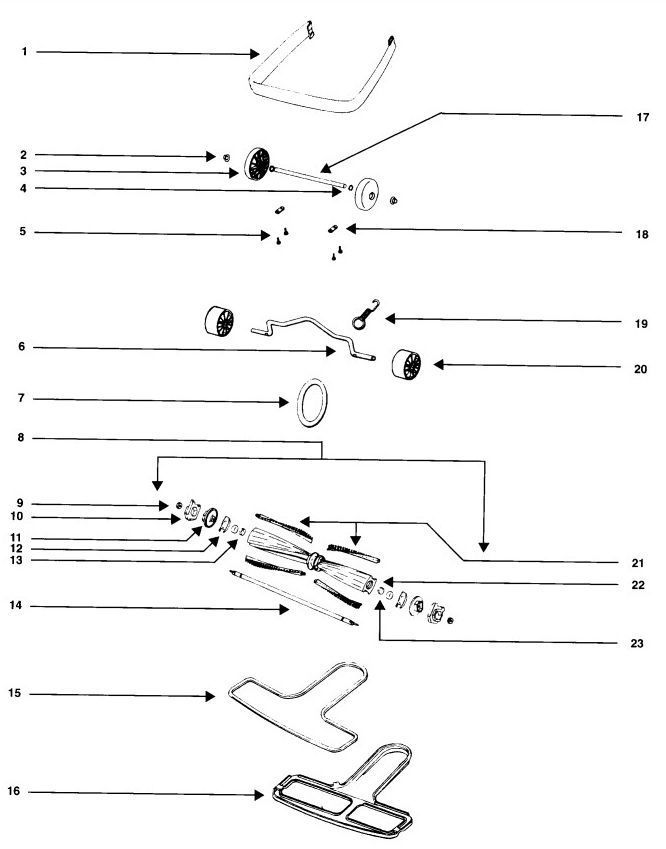

Sanitaire SC888 Vacuum Head Parts Continued
| 1. 27564-1 Furniture Guard |
| 2. 53121 Pushnut (1) |
| 3. 26242-1 Rear Wheel |
| 4. 53110 Wheel Washer |
| 5. 53238-11 Screw |
| 6. 35947A Front Axle |
| 7. 30563A Belt |
| 8. 54555 Disturbulator Assembly |
| 9. 53158 Locknut (2) |
| 10. 26059A Cap Cover |
| 11. 26058A Disturbulator Cap |
| 12. 25728A-1 Cover Plate |
| 13. 53114 Bearing |
| 14. 35663A Shaft |
| 15. 46538 Foam Tape |
| 16. 25922-1 Bottom Plate Assembly |
| 60161 Wheel & Axle Assembly |
| 17. 37183 Rear Axle |
| 18. 53201 Axle Clamp |
| 19. 53076-2 Axle Spring (1) |
| 20. 35859A-1 Front Weel |
| 21. 52140 Bristle Strip Set |
| 22. 48159 Pulley Replacement |
| 23. 53115 Tolerance Ring (2) |
Sanitaire SC888 Motor Parts
| 1. 53138 Retainer Screw |
| 2. 20217E Retainer Assembly |
| 3. 53213-4 Hex Nut |
| 4. 53222-3 Lock Washer |
| 5. 53219-2 Brush Screw |
| 6. 30478 Motor Brush Assembly (2) |
| 7. 54396 Motor Cover |
| 8. 54425-3 Arm Fan & Bearing Assembly |
| 9. 53088-2 Bearing (1) |
| 10. 30474A Fan |
| 11. 53441-2 Field Assembly |
| 12. 54169-1 Motor Base Assembly |
| 13. 54412 Bearing & Retainer Assembly |
| 14. 53088-2 Bearing (1) |
| 15. 53187-1 Rivet (3) |
| 16. 46713-1 Tie Fastener |
| 17. 53142 Orlo Thread Screw (1) |
| 18. 53188-1 Washer (1) |
| 19. 53148 Fan Washer (1) |
| 20. 12988 Fan |
| 21. 53148 Fan Washer (1) |
| 22. 37012-2 Pulley |

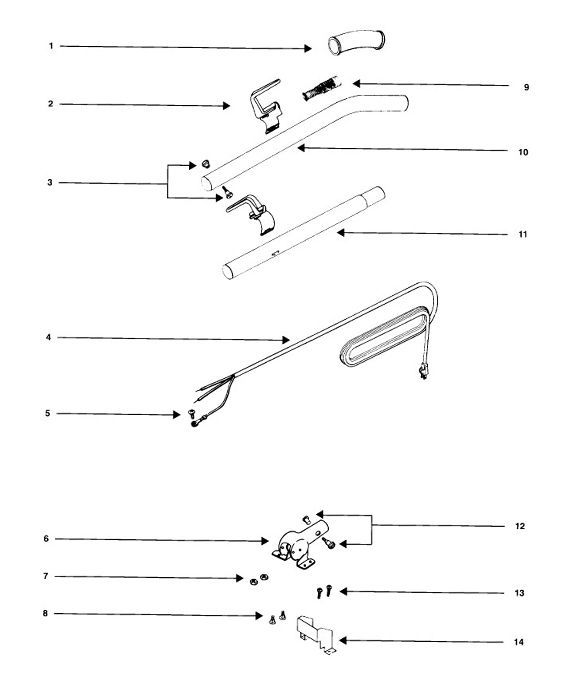

Sanitaire SC888 Handle Parts
| 1. 35293-8 Handle Grip |
| 2. 53574-1 Cord Retainer |
| 3. 53198-1 Screw & Nut Assembly |
| 4. 52370-12 Supply Cord |
| 5. 53238-11 Screw (1) |
| 6. 38183-1 Handle Socket Assembly |
| 7. 53213-5 Nut (2) |
| 8. 53145 Bolt (2) |
| 9. 53077 Strain Relief Spring |
| 10. 25329-20 Upper Handle Assembly |
| 11. 12637-8 Lower Handle Tube |
| 12. 53198-1 Screw & Nut Assembly |
| 13. 53238-29 Screw (2) |
| 14. 36439 Handle Socket Shield |

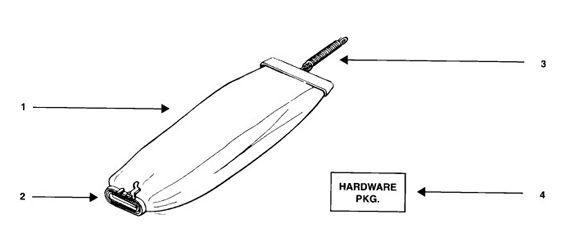

Sanitaire SC888 Handle Parts Continued...
| 1. 53506-9 Outer Bag Assembly |
| 2. 54174-1 Bag Adapter |
| 3. 47722 Spring |
| 4. 49461A Hardware Package |
| 5. 48410 Garter Spring |
| 6. 48282 Gasket |

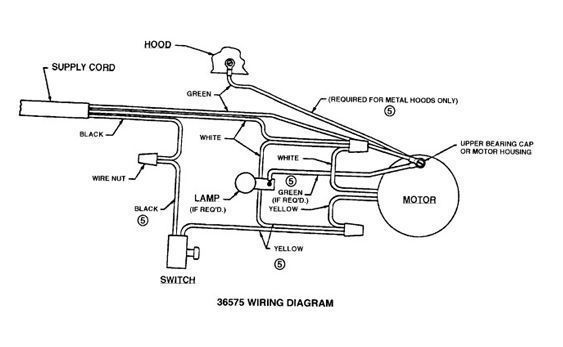

Sanitaire SC999 Motor Wiring Diagram
