A Guide
Understanding Schedule 20 PVC Pipe Dimensions

Welcome to Think Vacuums, your go-to source for all things vacuum-related! With decades of experience in servicing, repairing, installing, and selling householdcommercial, and central vacuumswe're here to share some expert insights on a crucial component of many vacuum systems: PVC pipes.

Today, we're diving into a topic that might not sound glamorous but is essential for anyone dealing with vacuum systems: PVC pipe dimensions, specifically focusing on Schedule 20 PVC pipes.

When it comes to vacuum systems, understanding the dimensions of Schedule 20 PVC pipes is essential for ensuring optimal performance and reliability. PVC pipes are commonly used in central vacuum installations due to their durability, ease of use, and affordability. However, selecting the right size and type of pipe can make a significant difference in the efficiency of your vacuum system.

NOTE: Schedule 20 is the only PVC to use for Central Vacuums

Why Understanding PVC Pipe Dimensions Matters

When it comes to vacuum systems, knowing your PVC pipe dimensions can make all the difference. Whether you're setting up a new central vacuum system or upgrading an existing one, getting the right pipe is crucial for ensuring efficiency and longevity. Schedule 20 PVC pipes are often used in these systems, and understanding their dimensions can help you choose the right components and avoid any installation hiccups.

The Basics of PVC Pipe Dimensions

PVC pipe sizes can be a bit misleading. For instance, a pipe labeled as 1 inch doesn't actually measure 1 inch across. Instead, it refers to the nominal pipe size, which is a standardized naming convention used across the industry. The actual measurement, the Outside Diameter (OD), is slightly larger.

Measuring the Outside Diameter (OD)

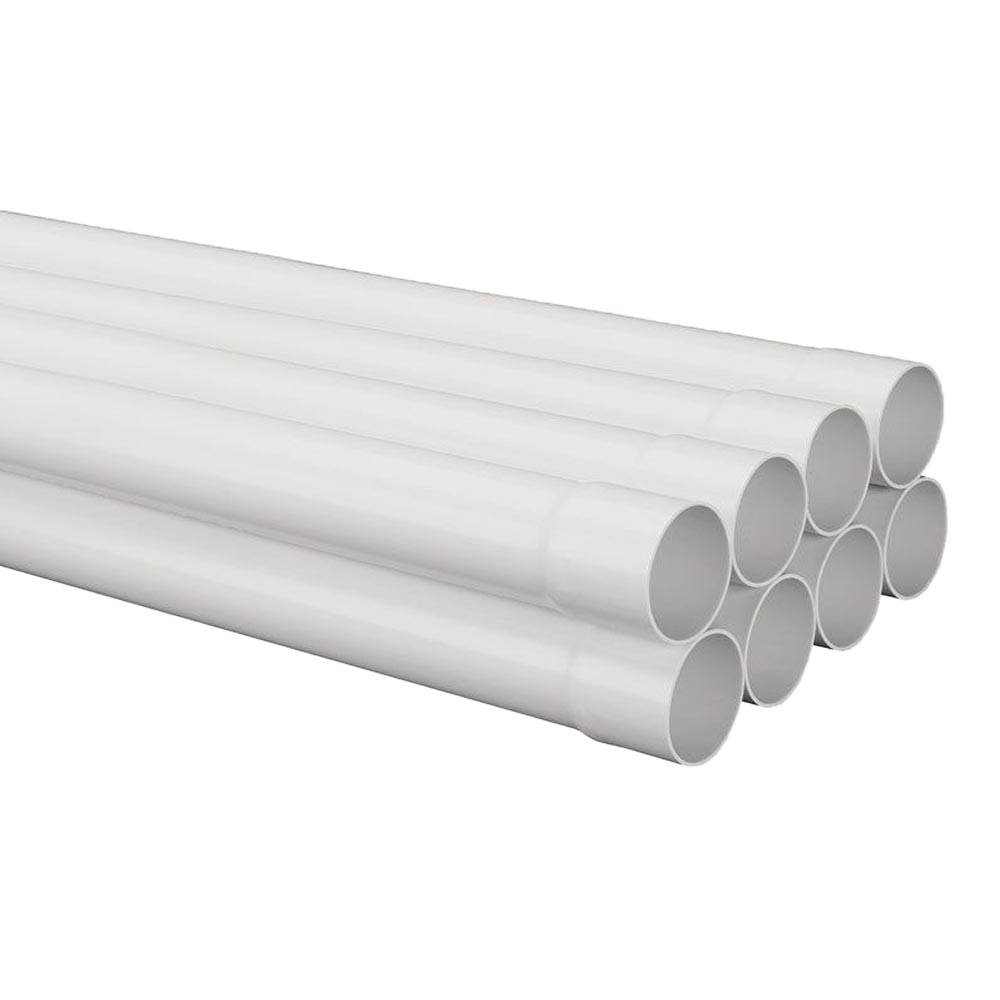

 schedule 20 pvc pipe Here's a quick guide on how to measure the OD of a PVC pipe:

  1. Locate the Pipe End: Find the end of the PVC pipe you want to measure.
  2. Identify the Broadest Point: Look for the widest point across the pipe's opening.
  3. Measure Across: Measure across the outside edges from one side to the other.

This measurement gives you the OD, which is crucial for matching pipes and fittings accurately.

Differences Between Schedule 20, 40, and 80 PVC Pipes

Understanding the differences between these schedules is vital, especially when dealing with vacuum systems:

  • Schedule 20: Known for its thinner walls, Schedule 20 is suitable for low-pressure applications. It's lightweight and easy to handle, making it perfect for household vacuum systems.
  • Schedule 40: This is the most common type, with thicker walls than Schedule 20. It's robust enough for moderate pressure applications, offering a good balance between strength and flexibility.
  • Schedule 80: With even thicker walls, Schedule 80 pipes are designed for high-pressure applications. They’re more durable but also heavier, which might be overkill for most vacuum systems.

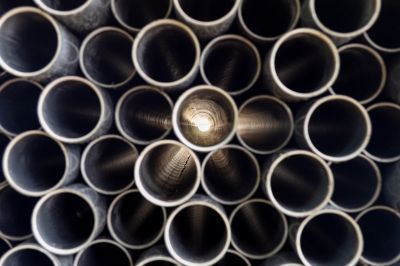

schedule 20 pvc pipe dimensionsDespite the differences in wall thickness, the OD for Schedule 40 and Schedule 80 pipes remains the same. However, the inner diameter (ID) reduces as the wall thickness increases. This is important for fittings, as a 1-inch pipe will still fit into a 1-inch fitting, regardless of the schedule.

Practical Applications for Vacuum Systems

For anyone working with central vacuum systems, choosing the right PVC pipe is crucial. Thinner pipes, like those in Schedule 20, are ideal for residential setups where high pressure isn't a concern. They are easier to work with and cost-effective, making them a popular choice for DIY installations.

On the other hand, if you're dealing with a commercial vacuum system that requires more robust infrastructure, Schedule 40 might be a better fit due to its increased durability.

A Friendly Tip from the Experts

At Think Vacuums, we believe that understanding the intricacies of components like PVC pipes can vastly improve the installation and performance of vacuum systems. Our team is here to help you choose the right components for your needs, ensuring your system runs smoothly and efficiently.

Whether you're a seasoned professional or a DIY enthusiast, knowing your Schedule 20 from your Schedule 40 and 80 can save you time, money, and a whole lot of hassle. So next time you're setting up or servicing a vacuum system, remember: the right pipe makes all the difference.
