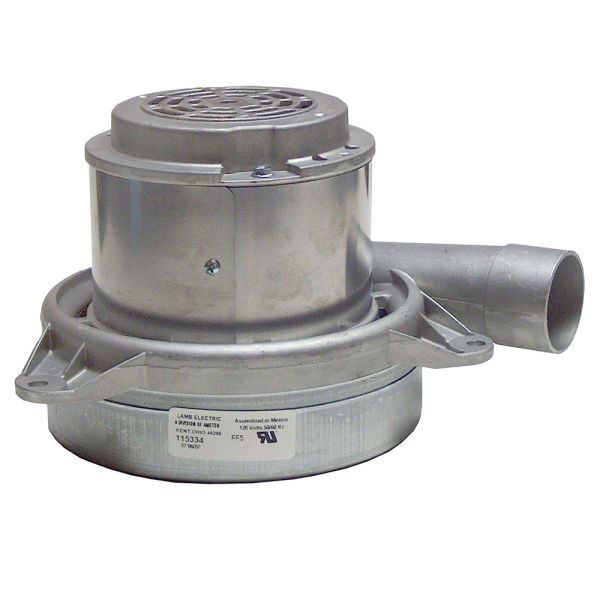

Ametek-Lamb 115334 Central Vacuum Motor
$248.00
MT:0004
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable
The Ametek-Lamb 115334 Central Vacuum Motor is a genuine 120V, 2-stage bypass replacement motor designed for compatible central vacuum systems. With a 7.2-inch fan, ball bearings, and carbon brushes, the 115334 is a reliable replacement motor for many Beam, Vacuflo, Vacumaid, Broan, NuTone, AirVac, DynaVac, and other central vacuum models. Verify your existing motor number and specifications before ordering.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Restore your central vacuum system's performance with the Ametek-Lamb 115334 Central Vacuum Motor, a genuine replacement for a wide range of residential and commercial central vacuum systems. If your central vacuum motor is worn out, has reduced performance, or has stopped working, replacing it can be a cost-effective way to keep your built-in vacuum system operating.
The Ametek 115334 motor features a 120-volt, 2-stage bypass motor with a 7.2-inch fan, ball bearings, and a single motor speed. It is designed for compatible central vacuum applications and uses Ametek-Lamb carbon brushes 33415-4. The motor's tangential air discharge and bypass fan system make it a commonly used replacement motor for central vacuum power units.
Ametek 115334 Replacement Motor Compatibility
One of the advantages of the Ametek-Lamb 115334 central vacuum motor is its broad compatibility across many older and established central vacuum systems. ThinkVacuums lists the 115334 as a replacement motor for select models from Beam, Vacuflo, Vacumaid, Broan, NuTone, AirVac, DynaVac, Filtex, Hayden, Astrovac, Fasco, Hoover, Pullman Holt, Whirlpool, Zenex, and other brands. Compatible models include select Beam 75, 80, 95, 153, 154, 183, 190, 253, 259, 284, 294, and 297 series systems, along with numerous other models.
Because central vacuum motors can look similar while having important differences in voltage, fan configuration, mounting, and electrical connections, always compare the motor number and specifications on your existing motor before purchasing. The Ametek 115334 is a specific replacement motor, and compatibility should be confirmed before installation.
Replace Your Central Vacuum Motor
A failing central vacuum motor may cause reduced cleaning performance, unusual noise, poor airflow, or a complete loss of suction. Instead of replacing an entire built-in central vacuum system, replacing the motor may provide a practical solution when the rest of the power unit remains in good condition.
The Ametek-Lamb 115334 replacement motor is a popular choice for central vacuum repairs because it is used across numerous systems. For customers repairing an older central vacuum, replacing the motor, gasket, and worn carbon brushes as appropriate can help restore the power unit to proper operating condition.
When installing a replacement motor, it is important to use the correct motor gasket and verify the electrical and mechanical specifications. Ametek-Lamb recommends routinely replacing carbon brushes and motor gaskets to help maintain motor performance and service life.
Ametek-Lamb 115334 Motor Specifications
- Motor Part Number: 115334
- Voltage: 120V
- Motor Stages: 2
- Motor Type: Series Universal
- Fan Diameter: 7.2 inches
- Fan System: Bypass
- Air Discharge: Tangential
- Motor Speed: 1
- Frequency: 50/60 Hz
- Bearing: Ball
- Carbon Brush: 33415-4
- Electrical Connection: Lead wires
- Weight: Approximately 9 lbs.
Ametek-Lamb 115334 is the Replacement Motor for the Following Central Vacuum Models:
| ACV 110P | Beam 153 | Budd 0704 | NuTone 350 |
| ACV 110 | Beam 154 | Cana-Vac 511 | Pullman Holt 105 |
| ACV 111 | Beam 183 | DynaVac 700R | Singer S200 |
| ACV Class Act | Beam 190 | DynaVac D100 | Vacuflo 26 |
| AirVac 110 | Beam 253 | DynaVac D150 | Vacuflo 99 |
| AirVac AV410 | Beam 259 | DustCare BE1 | Vacumaid P125 |
| Astrovac MK-X | Beam 284 | DustCare BE2 | Vacumaid 225 |
| Astrovac P-120 | Beam 294 | Electrolux 1561 | Vacumaid 325 |
| AstroVac P-125 | Beam 297 | Fasco 851 | Vent-A-Vac CV1000 |
| AstroVac MK3 | Beam 297SP | Filtex SB200L | WalVac 236 |
| AstroVac MK10 | Beam 297S | Filtex SB300L | WalVac 836 |
| Beam 75 | Beam 297C | Hoover S5503 | Whirlpool FB770XSO |
| Beam 80 | Broan CV-16 | Hayden CV36 | Whirlpool FB8800XSO |
| Beam 95 | Broan V16C | Kenmore | Zenex 275 |
* Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop-shipped directly from the manufacturer and will be coded and dated.
** In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy. If you are interested in Ametek-Lamb 115334 Central Vacuum Motor - Lamb Ametek Central Vacuum Motors, give our team a call today!
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33415-4 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 7.2 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Thermal Protection | None |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | None |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 115334 Ametek-Lamb Motor
Restore your central vacuum system's performance with the Ametek-Lamb 115334 Central Vacuum Motor, a genuine replacement for a wide range of residential and commercial central vacuum systems. If your central vacuum motor is worn out, has reduced performance, or has stopped working, replacing it can be a cost-effective way to keep your built-in vacuum system operating.
The Ametek 115334 motor features a 120-volt, 2-stage bypass motor with a 7.2-inch fan, ball bearings, and a single motor speed. It is designed for compatible central vacuum applications and uses Ametek-Lamb carbon brushes 33415-4. The motor's tangential air discharge and bypass fan system make it a commonly used replacement motor for central vacuum power units.
Ametek 115334 Replacement Motor Compatibility
One of the advantages of the Ametek-Lamb 115334 central vacuum motor is its broad compatibility across many older and established central vacuum systems. ThinkVacuums lists the 115334 as a replacement motor for select models from Beam, Vacuflo, Vacumaid, Broan, NuTone, AirVac, DynaVac, Filtex, Hayden, Astrovac, Fasco, Hoover, Pullman Holt, Whirlpool, Zenex, and other brands. Compatible models include select Beam 75, 80, 95, 153, 154, 183, 190, 253, 259, 284, 294, and 297 series systems, along with numerous other models.
Because central vacuum motors can look similar while having important differences in voltage, fan configuration, mounting, and electrical connections, always compare the motor number and specifications on your existing motor before purchasing. The Ametek 115334 is a specific replacement motor, and compatibility should be confirmed before installation.
Replace Your Central Vacuum Motor
A failing central vacuum motor may cause reduced cleaning performance, unusual noise, poor airflow, or a complete loss of suction. Instead of replacing an entire built-in central vacuum system, replacing the motor may provide a practical solution when the rest of the power unit remains in good condition.
The Ametek-Lamb 115334 replacement motor is a popular choice for central vacuum repairs because it is used across numerous systems. For customers repairing an older central vacuum, replacing the motor, gasket, and worn carbon brushes as appropriate can help restore the power unit to proper operating condition.
When installing a replacement motor, it is important to use the correct motor gasket and verify the electrical and mechanical specifications. Ametek-Lamb recommends routinely replacing carbon brushes and motor gaskets to help maintain motor performance and service life.
Ametek-Lamb 115334 Motor Specifications
- Motor Part Number: 115334
- Voltage: 120V
- Motor Stages: 2
- Motor Type: Series Universal
- Fan Diameter: 7.2 inches
- Fan System: Bypass
- Air Discharge: Tangential
- Motor Speed: 1
- Frequency: 50/60 Hz
- Bearing: Ball
- Carbon Brush: 33415-4
- Electrical Connection: Lead wires
- Weight: Approximately 9 lbs.
Ametek-Lamb 115334 is the Replacement Motor for the Following Central Vacuum Models:
| ACV 110P | Beam 153 | Budd 0704 | NuTone 350 |
| ACV 110 | Beam 154 | Cana-Vac 511 | Pullman Holt 105 |
| ACV 111 | Beam 183 | DynaVac 700R | Singer S200 |
| ACV Class Act | Beam 190 | DynaVac D100 | Vacuflo 26 |
| AirVac 110 | Beam 253 | DynaVac D150 | Vacuflo 99 |
| AirVac AV410 | Beam 259 | DustCare BE1 | Vacumaid P125 |
| Astrovac MK-X | Beam 284 | DustCare BE2 | Vacumaid 225 |
| Astrovac P-120 | Beam 294 | Electrolux 1561 | Vacumaid 325 |
| AstroVac P-125 | Beam 297 | Fasco 851 | Vent-A-Vac CV1000 |
| AstroVac MK3 | Beam 297SP | Filtex SB200L | WalVac 236 |
| AstroVac MK10 | Beam 297S | Filtex SB300L | WalVac 836 |
| Beam 75 | Beam 297C | Hoover S5503 | Whirlpool FB770XSO |
| Beam 80 | Broan CV-16 | Hayden CV36 | Whirlpool FB8800XSO |
| Beam 95 | Broan V16C | Kenmore | Zenex 275 |
* Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop-shipped directly from the manufacturer and will be coded and dated.
** In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy. If you are interested in Ametek-Lamb 115334 Central Vacuum Motor - Lamb Ametek Central Vacuum Motors, give our team a call today!
-
