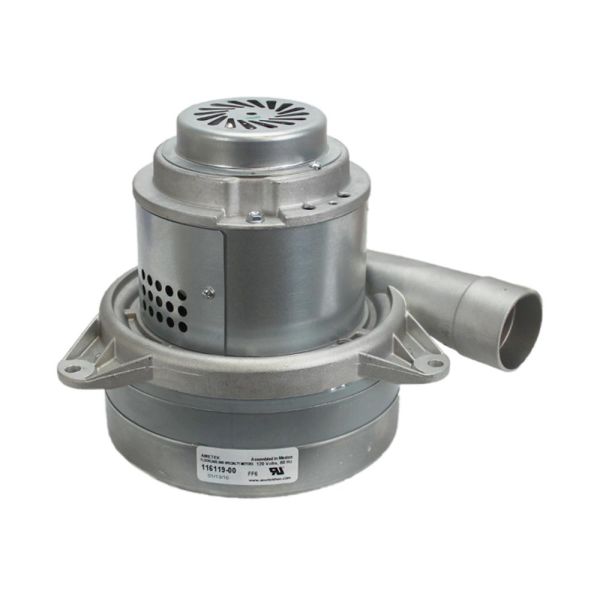

Ametek-Lamb 116119-00 Central Vacuum Motor

More Views
Product may vary from image displayed.
MT:0010

Recommendation: Click Here for 10 Reasons to Replace Your Power Unit, Instead of your Central Vacuum Motor

As low as $244.00
In stock
SKU
MT:0010
As low as $244.00

Compatible with the following Brands & Models
(hover over each)

  • ACVACV 135, ACV Heavy Duty
  • Beam Beam 204, Beam 294, Beam 284, Beam 287S, Beam 287SP, Beam 287C
  • Black & DeckerBlack & Decker 820
  • Broan Broan CV-30, Broan V30C
  • Dust Care Dust Care DCC1
  • DynaVac DynaVac 8000R
  • Wal Vac Wal Vac 450
  • Brute Brute Power Systems XB12119
  • Filter Queen Filter Queen SD500
This genuine Ametek-Lamb 116119 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33415-4

central vacuums usa

Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product-Smiley
1SELECT PRODUCT OPTIONS
Product Quantity
2 DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$244.00
3

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 116119 Replacement Motor for the Following Central Vacuum Models:

  • ACV 135
  • ACV Heavy Duty
  • Beam 204
  • Beam 294
  • Beam 284
  • Beam 287
  • Beam 287S
  • Beam 287SP
  • Beam 287C
  • Black & Decker 820
  • Broan CV-30
  • Broan V30C
  • Brute Power Systems XB12119
  • Dust Care DCC1
  • DynaVac 8000R
  • Filter Queen SD500
  • WalVac 450

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.

Replacement Part Type Motors
Voltage 120
Carbon Brush 33415-4
Motor Watts 438
Motor Stages 3
Motor Speeds 1
Motor Type Series Universal
Motor Frequency 50/60Hz
Motor Fan Diameter 7.200
Fan System Style Bypass
Air Discharge Tangential
Motor Low Temp 32.000
Motor High Temp 104.000
Motor Bearing Double Ball Bearings
Motor Comm Bracket Material Aluminum
Motor Fan Bracket Material Aluminum
Motor Insulation Class A
Motor Fan Shell Coat none
Motor Duty Cycle Intermittent
Motor Electrical Connection Lead Wires
Product Height (Inches) 7.75
