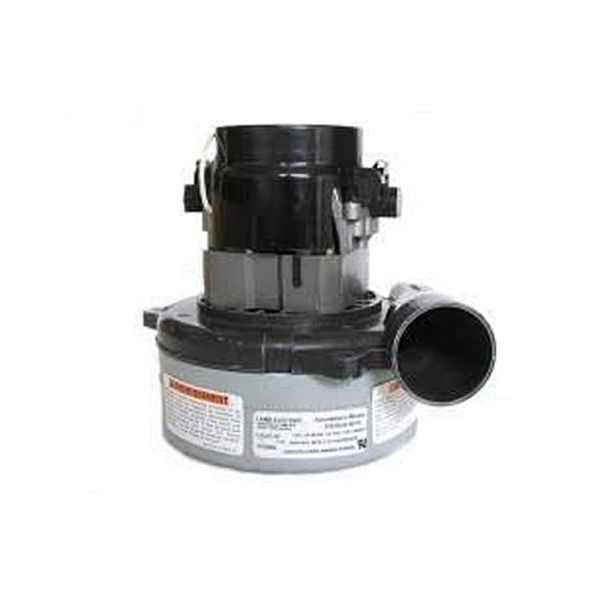

Ametek-Lamb 116207-00 Central Vacuum Motor
$123.00
MT:0012
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable
The Ametek-Lamb 116207-00 Central Vacuum Motor is a genuine 120V, 2-stage bypass replacement motor designed for compatible central vacuum systems. Featuring a 5.7-inch fan, ball bearings, and tangential air discharge, this Ametek 116207-00 motor is a reliable replacement for select Beam, Eureka, Hoover, and NuTone central vacuum models.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Keep your built-in vacuum system operating properly with the Ametek-Lamb 116207-00 Central Vacuum Motor. This genuine Ametek-Lamb replacement motor is designed for compatible central vacuum systems and is an excellent choice when an existing motor is worn, damaged, or has stopped working.
The Ametek 116207-00 central vacuum motor is a 120-volt, 2-stage bypass motor with a 5.7-inch fan diameter and tangential air discharge. It features ball bearings and is designed for reliable airflow and suction in compatible central vacuum applications. The motor operates at 50/60 Hz and uses a single-speed design.
Ametek 116207-00 Replacement Motor Compatibility
The Ametek-Lamb 116207-00 is used as a replacement motor in select central vacuum systems from several well-known manufacturers. ThinkVacuums lists compatibility with Beam, Eureka, Hoover, and NuTone models, including the Beam 89, Beam 2089, Eureka 1001, Hoover 5610, NuTone CV400, NuTone CV450 lower motor, and NuTone CV750 lower motor.
Because central vacuum motors can have similar appearances yet differ in voltage, fan size, mounting configuration, and electrical connections, it is important to verify the motor number and specifications of your existing motor before ordering. The 116207-00 is a specific replacement motor and should only be installed in a compatible system.
Ametek-Lamb 116207 Replacement Motor for the Following Central Vacuum Models
- Beam 2089
- Beam 89
- Eureka 1001
- Hoover 5610
- Nutone CV400
- Nutone CV450 Lower Motor
- Nutone CV750 Lower Motor
Replace Your Central Vacuum Motor
When a central vacuum motor begins to fail, homeowners may notice reduced suction, unusual operating noise, poor cleaning performance, or a complete loss of vacuum power. Replacing the motor instead of the entire central vacuum power unit can be a practical repair option when the rest of the system remains in good condition.
The Ametek-Lamb 116207-00 replacement motor is designed for compatible central vacuum applications and provides a 2-stage bypass motor configuration with a 5.7-inch fan. The bypass design separates the cooling airflow from the dirt and debris being vacuumed, making this motor style commonly used in central vacuum and other vacuum applications.
When replacing your central vacuum motor, inspect the motor gasket and other components for wear. ThinkVacuums recommends keeping the original motor gasket when ordering a replacement and stresses the importance of double-checking the motor number before purchasing.
Ametek-Lamb 116207-00 Motor Specifications
- Manufacturer: Ametek-Lamb
- Motor Part Number: 116207-00
- Voltage: 120V
- Motor Stages: 2
- Motor Speeds: 1
- Motor Type: Series Universal
- Fan Diameter: 5.7 inches
- Fan System: Bypass
- Air Discharge: Tangential
- Frequency: 50/60 Hz
- Bearing: Ball
- Carbon Brush: 33326-1
- Electrical Connection: Lead wires
- Airflow: Up to 104 CFM at 2-inch orifice
- Maximum Air Watts: 300
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33326-1 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Plastic |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 116207-00 Ametek-Lamb Motor
Keep your built-in vacuum system operating properly with the Ametek-Lamb 116207-00 Central Vacuum Motor. This genuine Ametek-Lamb replacement motor is designed for compatible central vacuum systems and is an excellent choice when an existing motor is worn, damaged, or has stopped working.
The Ametek 116207-00 central vacuum motor is a 120-volt, 2-stage bypass motor with a 5.7-inch fan diameter and tangential air discharge. It features ball bearings and is designed for reliable airflow and suction in compatible central vacuum applications. The motor operates at 50/60 Hz and uses a single-speed design.
Ametek 116207-00 Replacement Motor Compatibility
The Ametek-Lamb 116207-00 is used as a replacement motor in select central vacuum systems from several well-known manufacturers. ThinkVacuums lists compatibility with Beam, Eureka, Hoover, and NuTone models, including the Beam 89, Beam 2089, Eureka 1001, Hoover 5610, NuTone CV400, NuTone CV450 lower motor, and NuTone CV750 lower motor.
Because central vacuum motors can have similar appearances yet differ in voltage, fan size, mounting configuration, and electrical connections, it is important to verify the motor number and specifications of your existing motor before ordering. The 116207-00 is a specific replacement motor and should only be installed in a compatible system.
Ametek-Lamb 116207 Replacement Motor for the Following Central Vacuum Models
- Beam 2089
- Beam 89
- Eureka 1001
- Hoover 5610
- Nutone CV400
- Nutone CV450 Lower Motor
- Nutone CV750 Lower Motor
Replace Your Central Vacuum Motor
When a central vacuum motor begins to fail, homeowners may notice reduced suction, unusual operating noise, poor cleaning performance, or a complete loss of vacuum power. Replacing the motor instead of the entire central vacuum power unit can be a practical repair option when the rest of the system remains in good condition.
The Ametek-Lamb 116207-00 replacement motor is designed for compatible central vacuum applications and provides a 2-stage bypass motor configuration with a 5.7-inch fan. The bypass design separates the cooling airflow from the dirt and debris being vacuumed, making this motor style commonly used in central vacuum and other vacuum applications.
When replacing your central vacuum motor, inspect the motor gasket and other components for wear. ThinkVacuums recommends keeping the original motor gasket when ordering a replacement and stresses the importance of double-checking the motor number before purchasing.
Ametek-Lamb 116207-00 Motor Specifications
- Manufacturer: Ametek-Lamb
- Motor Part Number: 116207-00
- Voltage: 120V
- Motor Stages: 2
- Motor Speeds: 1
- Motor Type: Series Universal
- Fan Diameter: 5.7 inches
- Fan System: Bypass
- Air Discharge: Tangential
- Frequency: 50/60 Hz
- Bearing: Ball
- Carbon Brush: 33326-1
- Electrical Connection: Lead wires
- Airflow: Up to 104 CFM at 2-inch orifice
- Maximum Air Watts: 300
-
