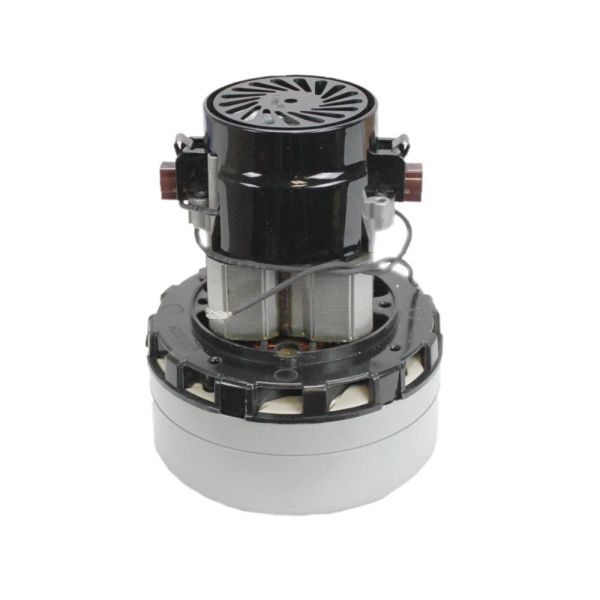

Ametek-Lamb 116296 Central Vacuum Motor

More Views
Product may vary from image displayed.
MT:0015

Recommendation: Click Here for 10 Reasons to Replace Your Power Unit, Instead of your Central Vacuum Motor

$241.00
In stock
SKU
MT:0015
$241.00

Compatible with the following Brands & Models
(hover over each)

  • AirVacAirVac AV850
  • Beam Beam 677S
  • Broan Broan CV-40 Bottom Motor, Broan V40C Bottom Motor
The Ametek-Lamb 116296 is the Replacement Motor for the Following Central Vacuum Models: AirVac AV850, Beam 677S, Broan CV-40 Bottom Motor, Broan V40C Bottom Motor.
  • Replacement Part Type Motors
  • Voltage 240
  • Carbon Brush 33378

central vacuums usa

Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product-Smiley
1SELECT PRODUCT OPTIONS
2 DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$241.00
3

This genuine Ametek-Lamb 116296 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 116296 motor and would rather upgrade your system click for Central Vacuum Recommendations.

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 116296 Replacement Motor for the Following Central Vacuum Models

  • AirVac AV850
  • Beam 677S
  • Broan CV-40
  • Bottom Motor
  • Broan V40C
  • Bottom Motor

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.

Replacement Part Type Motors
Voltage 240
Carbon Brush 33378
Motor Stages 2
Motor Speeds 1
Motor Type Series Universal
Motor Frequency 50/60Hz
Motor Fan Diameter 5.700
Fan System Style Bypass
Air Discharge Peripheral
Motor Low Temp 32.000
Motor High Temp 104.000
Motor Bearing Ball
Motor Comm Bracket Material Aluminum
Motor Fan Bracket Material Plastic
Motor Insulation Class A
Motor Fan Shell Coat none
Motor Duty Cycle Intermittent
Motor Electrical Connection Lead Wires
