Ametek-Lamb 116309 Central Vacuum Motor
$102.00
MT:0098
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

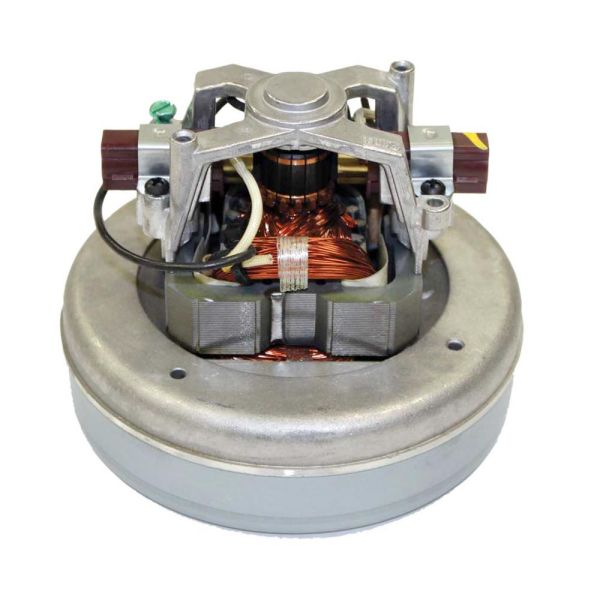

The Ametek Lamb 116309 motor is a high-quality replacement vacuum motor designed for compatible central vacuum systems, commercial vacuums, and specialty cleaning equipment. Built with a durable 5.7-inch motor frame, this replacement motor restores reliable suction and performance when you replace a worn, noisy, or failed original motor.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The Ametek Lamb 116309 motor is a dependable replacement vacuum motor used in a variety of central vacuum, commercial cleaning, and specialty vacuum applications. Built with a 1-stage, 5.7-inch motor design, the 116309 is a 120-volt thru-flow vacuum motor that delivers reliable suction in compatible equipment.
If your existing vacuum motor has become noisy, lost suction, developed a burning smell, or stopped running altogether, replacing the motor may help restore your vacuum system's performance. The Ametek 116309 replacement motor is one of the most commonly recognized motor configurations in the vacuum industry and is designed for equipment requiring a 1-stage, 120V thru-flow motor.
The motor uses a thru-flow design, meaning the vacuumed air passes through the motor to assist with cooling. Because of this design, proper filtration and clean airflow are important to help protect the motor and extend its service life.
Powerful and Reliable 1-Stage Vacuum Motor
The 116309 Ametek Lamb motor features a compact 5.7-inch frame and single-stage fan system. Its straightforward design makes it suitable for compatible vacuum equipment that requires dependable airflow and vacuum performance.
With single-speed operation and durable construction, this motor is an excellent replacement option when the original motor number matches the 116309 series and the physical and electrical specifications are compatible.
Features and Benefits
- Genuine Ametek Lamb vacuum motor
- Replacement motor number 116309
- 120-volt operation
- 1-stage vacuum motor design
- 5.7-inch motor frame
- Thru-flow motor configuration
- Single-speed operation
- Ball/sleeve bearing design
- Aluminum commutator bracket
- Aluminum fan bracket
- Designed for compatible central vacuum and commercial vacuum applications
- Helps restore performance to equipment with a worn or failed motor
Common Signs Your Vacuum Motor May Need Replacement
Vacuum motors experience wear over time, especially in heavily used central vacuum and commercial vacuum systems. Some common signs of a failing motor include:
- Reduced suction performance
- Excessive motor noise
- Grinding or whining sounds
- Burning odors
- Intermittent operation
- Motor overheating
- Vacuum shutting off unexpectedly
- Complete motor failure
Replacing a failed motor can be a cost-effective alternative to replacing an entire compatible vacuum system.
Important Compatibility Information
Before ordering an Ametek 116309 motor replacement, carefully compare your existing motor with the replacement motor.
Verify:
- Complete motor number
- Voltage
- Number of motor stages
- Motor diameter
- Motor height
- Thru-flow configuration
- Air discharge design
- Mounting configuration
- Electrical connections
Different versions or suffixes within a motor family may have differences in mounting, airflow, electrical connections, or other physical characteristics. Always compare the complete number printed on your original motor before ordering.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33400-7 |
| Motor Watts | 788 |
| Motor Stages | 1 |
| Motor Speeds | 1 |
| Motor Type | Thru-Flow |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.7 |
| Air Discharge | Thru-Flow |
| Motor Bearing | Ball/Sleeve |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Thermal Protection | None |
| Motor Insulation Class | A |
| Motor Duty Cycle | Intermittent |
| Product Height (Inches) | 4.5 |
Product Description
Product Specifications
Product Videos
Product Reviews
Read about the 116309 Ametek Lamb Motor
The Ametek Lamb 116309 motor is a dependable replacement vacuum motor used in a variety of central vacuum, commercial cleaning, and specialty vacuum applications. Built with a 1-stage, 5.7-inch motor design, the 116309 is a 120-volt thru-flow vacuum motor that delivers reliable suction in compatible equipment.
If your existing vacuum motor has become noisy, lost suction, developed a burning smell, or stopped running altogether, replacing the motor may help restore your vacuum system's performance. The Ametek 116309 replacement motor is one of the most commonly recognized motor configurations in the vacuum industry and is designed for equipment requiring a 1-stage, 120V thru-flow motor.
The motor uses a thru-flow design, meaning the vacuumed air passes through the motor to assist with cooling. Because of this design, proper filtration and clean airflow are important to help protect the motor and extend its service life.
Powerful and Reliable 1-Stage Vacuum Motor
The 116309 Ametek Lamb motor features a compact 5.7-inch frame and single-stage fan system. Its straightforward design makes it suitable for compatible vacuum equipment that requires dependable airflow and vacuum performance.
With single-speed operation and durable construction, this motor is an excellent replacement option when the original motor number matches the 116309 series and the physical and electrical specifications are compatible.
Features and Benefits
- Genuine Ametek Lamb vacuum motor
- Replacement motor number 116309
- 120-volt operation
- 1-stage vacuum motor design
- 5.7-inch motor frame
- Thru-flow motor configuration
- Single-speed operation
- Ball/sleeve bearing design
- Aluminum commutator bracket
- Aluminum fan bracket
- Designed for compatible central vacuum and commercial vacuum applications
- Helps restore performance to equipment with a worn or failed motor
Common Signs Your Vacuum Motor May Need Replacement
Vacuum motors experience wear over time, especially in heavily used central vacuum and commercial vacuum systems. Some common signs of a failing motor include:
- Reduced suction performance
- Excessive motor noise
- Grinding or whining sounds
- Burning odors
- Intermittent operation
- Motor overheating
- Vacuum shutting off unexpectedly
- Complete motor failure
Replacing a failed motor can be a cost-effective alternative to replacing an entire compatible vacuum system.
Important Compatibility Information
Before ordering an Ametek 116309 motor replacement, carefully compare your existing motor with the replacement motor.
Verify:
- Complete motor number
- Voltage
- Number of motor stages
- Motor diameter
- Motor height
- Thru-flow configuration
- Air discharge design
- Mounting configuration
- Electrical connections
Different versions or suffixes within a motor family may have differences in mounting, airflow, electrical connections, or other physical characteristics. Always compare the complete number printed on your original motor before ordering.
-
