Ametek-Lamb 116429 Central Vacuum Motor
$220.00
MT:0051
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable
The Ametek-Lamb 116429 is a genuine replacement motor for compatible central vacuum systems, including NuTone CV-352, AstroVac SR-34, ACV 90, Pullman BIV-99, Pullman BIV-205, PowerKing PK36, and Vacumaid P-70. This 120-volt, 2-stage through-flow motor delivers up to 349 Air Watts, 121 CFM, and 97 inches of water lift.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS

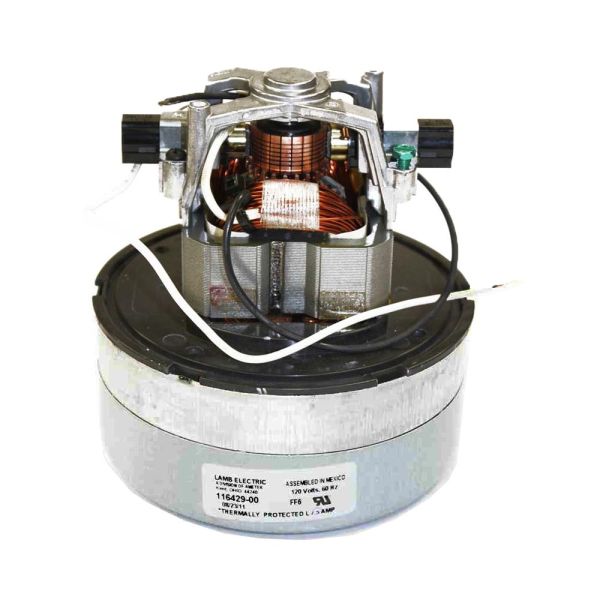

Ametek-Lamb 116429 Central Vacuum Motor Replacement
Restore reliable suction and cleaning performance to your central vacuum system with the Ametek-Lamb 116429 replacement motor. This genuine Lamb motor is designed for compatible residential and commercial central vacuum applications and is an excellent replacement for worn or failed motors.
The 116429 is a 2-stage, through-flow motor that operates on 110–120 volts. It features a 5.7-inch motor diameter, ball/sleeve bearing construction, and lead-wire electrical connections. The motor is rated at up to 121 CFM, 97 inches of water lift, and 349 Air Watts.
The Ametek-Lamb 116429 may also be identified by older motor markings such as 6429, 11-6429, or 116429. This makes it important to check the motor number on your existing central vacuum before ordering a replacement.
Compatible Central Vacuum Systems
The 116429 is listed as a replacement motor for several central vacuum brands and models, including:
- NuTone CV-352
- AstroVac SR-34
- ACV 90
- Pullman BIV-99
- Pullman BIV-205 — top motor
- PowerKing PK36
- Vacumaid P-70
Always compare your existing motor number and specifications before ordering. ThinkVacuums specifically recommends double-checking the motor number because central vacuum systems can use motors with similar physical dimensions but different electrical or performance specifications.
Key Features
- Genuine Ametek-Lamb 116429 central vacuum motor
- 120-volt replacement motor
- 2-stage motor design
- Through-flow fan system
- 5.7-inch fan diameter
- 121 CFM maximum airflow
- 97-inch water lift
- 349 Air Watts
- 9.4 amp rating
- 50/60 Hz operation
- Ball/sleeve bearing construction
- Lead-wire electrical connection
- Intermittent-duty motor
- Suitable for residential and commercial central vacuum applications
- Replaces select older 116429, 11-6429, and 6429 marked motors
When to Replace Your Central Vacuum Motor
A failing central vacuum motor can cause noticeable changes in system performance. Common signs that the motor may need replacement include reduced suction, unusual motor noise, electrical odors, excessive sparking, repeated breaker trips, or a motor that clicks but does not start.
A motor that shuts down and later starts again can also indicate an aging or overheating motor. However, electrical problems can have other causes, including a defective relay or control board, so proper diagnosis is recommended before replacing the motor.
Replace the Motor Instead of the Entire Power Unit
Replacing the motor can be an economical way to extend the life of an existing central vacuum power unit when the collection canister, electrical components, and other major parts remain in good condition.
Before installing a new motor, inspect the motor gasket and mounting area. A properly sealed motor is important for maintaining the vacuum system's performance.
If the power unit is significantly aged or has multiple failing components, replacing the complete central vacuum unit may be a better long-term option.
Important Compatibility Information
Always verify the motor number before purchasing.
The Ametek-Lamb 116429 is commonly associated with the NuTone CV-352, while the NuTone CV353 uses a different motor configuration. Don't assume a motor will fit just because the model numbers are similar.
Compare:
- Original motor number
- Voltage
- Motor stages
- Fan diameter
- Motor height
- Mounting configuration
- Electrical connections
- Motor gasket size
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33326-3 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Through-Flow |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball/Sleeve |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Plastic |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
