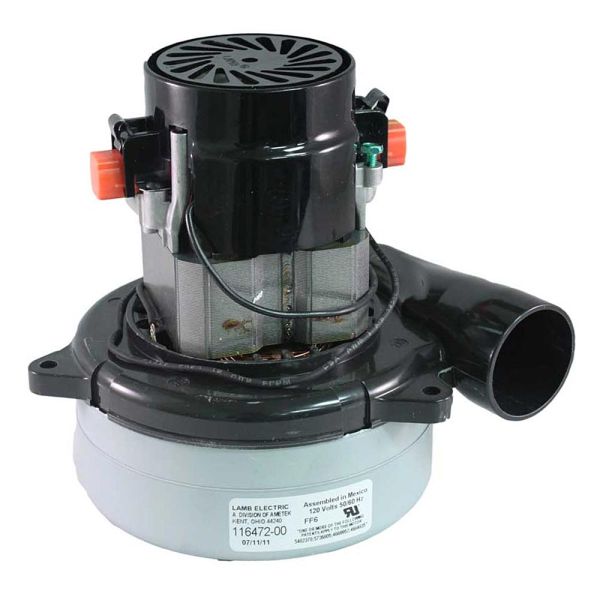

Ametek-Lamb 116472 Central Vacuum Motor

More Views
Product may vary from image displayed.
MT:0020

Recommendation: Click Here for 10 Reasons to Replace Your Power Unit, Instead of your Central Vacuum Motor

$128.00
In stock
SKU
MT:0020
$128.00

Compatible with the following Brands & Models
(hover over each)

  • ACVACV 105, ACV Act 2
  • AirKing AirKing AKCVQZ15, AirKing AKCVQZ35, AirKing AKCV35, AirKing AKCVP35
  • AirVac AirVac AV195, AirVac AV400, AirVac AV425, AirVac AV425A, AirVac AV2500, AirVac FX2000, AirVac FX5800, AirVac ZX5800
  • AMS AMS 112
  • Aspro Aspro 850
  • Astrovac Astrovac MK-1, Astrovac SR-42
  • Beam Beam 100, Beam 167, Beam 167C, Beam 167S, Beam 177, Beam 178, Beam 189, Beam 189C, Beam 189S, Beam 353, Beam 2089
  • Broan Broan CV-20, Broan V20C
  • Brute Brute Power Mini 99116
  • Budd Budd 9812
  • Cana-Vac Cana-Vac 211, Cana-Vac 250
  • Cyclovac Cyclovac E100, Cyclovac E101
  • Dirt Devil Dirt Devil CV2000
  • DynoVac DynoVac D85, DynoVac D85A
  • Eureka Eureka CV10001, Eureka CV825, Eureka CV835, Eureka 800B, Eureka CV825D
  • Filtex Filtex NSB2000
  • Hayden Hayden 2400
  • Hoover Hoover S56020, Hoover S5610
  • Husky Husky G250EX, Husky 8510, Husky 8010
  • M & S M & S AV2500, M & S FX2000, M & S FX5800, M & S ZX5800
  • NuTone NuTone CV554
  • Power King Power King PK42
  • Smart Smart 251, Smart 200
  • Vacuflo Vacuflo 17, Vacuflo 107
  • VacuQueen VacuQueen V1000
  • Vacumaid Vacumaid P110, Vacumaid S215
  • Whirlpool Whirlpool FB7700XS
This genuine Ametek-Lamb 116472 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 116472 motor and would rather upgrade your system please call us at 1-800-322-2965.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33392-17

central vacuums usa

Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product-Smiley
1SELECT PRODUCT OPTIONS
2 DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$128.00
3

This genuine Ametek-Lamb 116472 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 116472 motor and would rather upgrade your system then click for Central Vacuum Recommendations.

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 116472 is the Replacement Motor for the Following Central Vacuum Models

ACV 105Aspro 850Broan CV-20Eureka CV825DSmart 200
ACV Act 2Astrovac MK-1Broan V20CFiltex NSB200Vacuflo 17
AirKing AKCVQZ15Astrovac SR-42Brute Power Mini 99116Hayden 2400Vacuflo 107
AirKing AKCVQZ35Beam 78Budd 9812Hoover S5602VacuQueen V1000
AirKing AKCV35Beam 100Cana-Vac 211Hoover S5610Vacumaid P110
AirKing AKCVP35Beam 167Cana-Vac 250Husky G250EXVacumaid S215
AirVac AV195Beam 167CCyclovac E100Husky 8510Whirlpool FB7700XS
AirVac AV400Beam 167SCyclovac E101Husky 8010
AirVac AV425Beam 177Dirt Devil CV2000M & S AV2500
AirVac AV425ABeam 178DynoVac D85M & S FX2000
AirVac AV2500Beam 189DynoVac D85AM & S FX5800
AirVac FX2000Beam 189CEureka CV10001M & S ZX5800
AirVac FX5800Beam 189SEureka CV825NuTone CV554
AirVac ZX5800Beam 353Eureka CV835Power King PK42
AMS 112Beam 2089Eureka 800BSmart 251



* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.

Replacement Part Type Motors
Voltage 120
Carbon Brush 33392-17
Motor Watts 1450
Motor Stages 2
Motor Speeds 1
Motor Type Series Universal
Motor Frequency 50/60Hz
Motor Fan Diameter 5.700
Fan System Style Bypass
Air Discharge Tangential
Motor Low Temp 32
Motor High Temp 104
Motor Bearing Ball
Motor Comm Bracket Material Aluminum
Motor Fan Bracket Material Plastic
Motor Insulation Class A
Motor Fan Shell Coat none
Motor Duty Cycle Intermittent
Motor Electrical Connection Lead Wires
