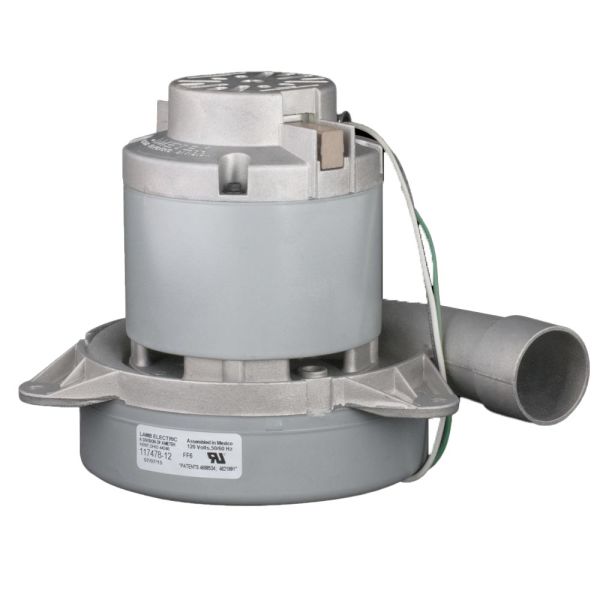

Ametek-Lamb 117478 Central Vacuum Motor

$216.00
$216.00
In stock
SKU
MT:0028

Compatible with the following Brands & Models
(hover over each)

  • AstroVacAstroVac MK-V, AstroVac SR-22, AstroVac SR-50, AstroVac SR-60, AstroVac MK-XVIII,SR-72
  • Beam Beam 287, Beam 287S/SP, Beam 287C, Beam 294, Beam 310, Beam 387, Beam 387A, Beam 875, Beam 2875
  • Budd Budd 9915
  • Eureka Eureka 3391D, Eureka CV3391A, Eureka CV3391C, Eureka CVS7000S, Eureka CVS7000SA, Eureka CV2104A, Eureka CV2104B
  • Frigidaire Frigidaire FGCV550SQ
  • Honeywell Honeywell H802, Honeywell H802A
  • Easy-Flo Easy-Flo 1425, Easy-Flo 1450, Easy-Flo 1525, Easy-Flo 1550, Easy-Flo EF1425, Easy-Flo EF1450, Easy-Flo EF1525, Easy-Flo EF1550
MT:0028
Please Make Sure to
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable
This genuine Ametek-Lamb 117478 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 117478 motor and would rather upgrade your system please call us at 1-800-322-2965.
Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product-Smiley
1SELECT PRODUCT OPTIONS
2 DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$216.00
3

This genuine Ametek-Lamb 117478 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 117478 motor and would rather upgrade your system then click for Central Vacuum Recommendations.

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 117478 Replacement Motor for the Following Central Vacuum Models

AstroVac MK-XVIII Easy-Flo 1525
AstroVac SR-22 Easy-Flo 1550
AstroVac SR50 Eureka 3391D
AstroVac SR60 Eureka CV3391A
Astrovac SR72 Eureka CV3391C
Beam 310 Eureka CVS7000S
Beam 387 Eureka CVS7000SA
Beam 387A Eureka CV2104A
Beam 875 Eureka CV2104B
Beam 2875 Frigidaire FGCV550SQ
Budd 9915 Honeywell H802
Easy-Flo 1425 Honeywell H802A
Easy-Flo 1450


* Rule #1,
Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.

Replacement Part Type Motors
Voltage 120
Carbon Brush 833450-57
Motor Stages 2
Motor Speeds 1
Motor Type Series Universal
Motor Frequency 50/60Hz
Motor Fan Diameter 7.200
Fan System Style Bypass
Air Discharge Tangential
Motor Low Temp 32.000
Motor High Temp 104.000
Motor Bearing Ball
Motor Comm Bracket Material Aluminum
Motor Fan Bracket Material Aluminum
Motor Insulation Class A
Motor Fan Shell Coat none
Motor Duty Cycle Intermittent
Motor Electrical Connection Lead Wires
