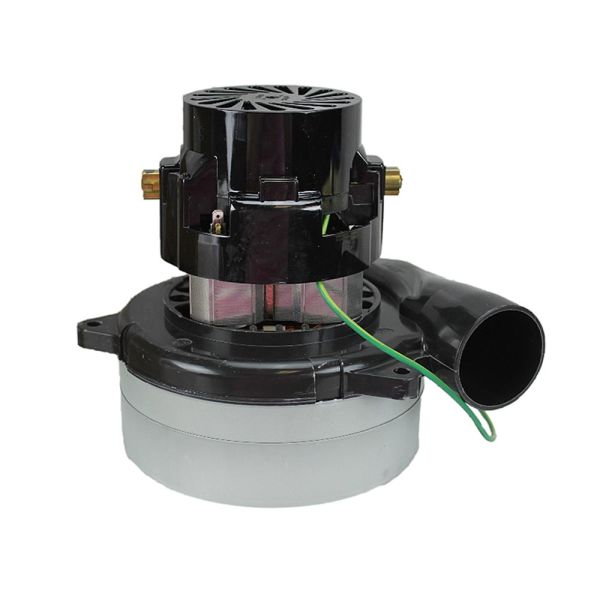

Ametek-Lamb 119412 Central Vacuum Motor

More Views
Product may vary from image displayed.
MT:0037

Recommendation: Click Here for 10 Reasons to Replace Your Power Unit, Instead of your Central Vacuum Motor

price $123.00
In stock
SKU
MT:0037
price $123.00

Compatible with the following Brands & Models
(hover over each)

  • AirVacAirVac AV525, AirVac AV525A
  • AstroVac AstroVac SR-86
  • Beam Beam 90
  • Broan Broan CV-10,CV-40 Top Motor, Broan V10C, Broan V40C
  • Eureka Eureka CV700
  • Filtex Filtex FX675A
  • Kenmore Kenmore 116.4043280, Kenmore 116.4043180
  • Pullman Holt Pullman Holt BIV205 Botton Motor
This genuine Ametek-Lamb 119412 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 119412 motor and would rather upgrade your system please call us at 1-800-322-2965.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33474

central vacuums usa

Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product-Smiley
1SELECT PRODUCT OPTIONS
Product Quantity
2 DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$123.00
3

This genuine Ametek-Lamb 119412 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 119412 motor and would rather upgrade your system then click for Central Vacuum Recommendations.

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 119412 Replacement Motor for the Following Central Vacuum Models

  • AirVac AV525
  • AirVac AV525A
  • AstroVac SR-86
  • Beam 90
  • Broan CV-10
  • Broan CV-40 (Top Motor)
  • Broan V10C
  • Broan V40C
  • Eureka CV700
  • Filtex FX675A
  • Kenmore 116.4043280
  • Kenmore 116.4043180
  • Pullman Holt BIV205 (Botton Motor)

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.

Replacement Part Type Motors
Voltage 120
Carbon Brush 33474
Motor Stages 2
Motor Speeds 1
Motor Type Series Universal
Motor Frequency 50/60Hz
Motor Fan Diameter 5.700
Fan System Style Bypass
Air Discharge Tangential
Motor Low Temp 32.000
Motor High Temp 104.000
Motor Bearing Double Ball
Your Rating
CUSTOMERS ALSO PURCHASED THESE RELATED ITEMS
  1. FlipBUS Central Vacuum Cleaning Balls -20%

    FlipBUS Central Vacuum Cleaning Balls

    Was $62.75

    Save: 20%

    Save $12.80 (20%) through 04/19/2024

    Save: 20%

    On Sale: $49.95

    Save $12.80 through 04/19/2024

    Price $49.95

  2. Tornado Power Central Vacuum Maintenance Cloths -17%

    Tornado Power Central Vacuum Maintenance Cloths

    Rating:
    100%

    Was $29.95

    Save: 17%

    Save $5.00 (17%) through 04/19/2024

    Save: 17%

    On Sale: $24.95

    Save $5.00 through 04/19/2024

    Price $24.95

Product Description
Product Specifications
Product Videos
Product Reviews

Read about the 119412 Ametek Lamb Motor

This genuine Ametek-Lamb 119412 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 119412 motor and would rather upgrade your system then click for Central Vacuum Recommendations.

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

Ametek-Lamb 119412 Replacement Motor for the Following Central Vacuum Models

  • AirVac AV525
  • AirVac AV525A
  • AstroVac SR-86
  • Beam 90
  • Broan CV-10
  • Broan CV-40 (Top Motor)
  • Broan V10C
  • Broan V40C
  • Eureka CV700
  • Filtex FX675A
  • Kenmore 116.4043280
  • Kenmore 116.4043180
  • Pullman Holt BIV205 (Botton Motor)

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
