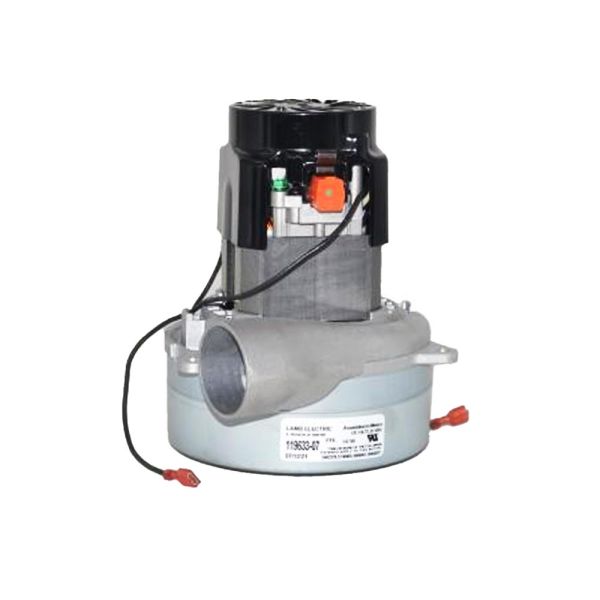

Ametek-Lamb 119633 Central Vacuum Motor
$246.00
MT:0076
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable
The Ametek Lamb 116763 is a genuine 120-volt, 2-stage bypass central vacuum motor designed to replace select AirVac, BEAM, and Vacuflo central vacuum systems. With a 5.7-inch fan diameter and a powerful bypass motor design, the 116763 helps restore suction and performance when the original motor wears out. Always verify the motor number on your existing motor before ordering to ensure proper compatibility.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Restore your central vacuum system's performance with the Ametek Lamb 116763 central vacuum motor. This replacement motor fits select central vacuum power units and delivers the dependable performance expected from a genuine Lamb Ametek motor.
The 116763 features a 120-volt, 2-stage bypass design with a 5.7-inch fan diameter. Bypass motors keep the motor's cooling air separate from the vacuumed air, making this type of motor well suited for central vacuum applications. The motor generates strong vacuum pressure and airflow for residential central vacuum systems.
The Ametek Lamb 116763 is commonly used as a replacement motor for AirVac 395, BEAM 168C, and Vacuflo Maxum Whisper central vacuum systems. BEAM motor cross-reference information also identifies the 116763 as the replacement motor for the BEAM 168C.
Designed for Central Vacuum Replacement
A failing central vacuum motor can result in reduced suction, unusual motor noise, intermittent operation, overheating, or a complete loss of power. Replacing the motor can restore the vacuum's operating performance without necessarily replacing the entire central vacuum power unit.
The 116763 is a direct motor replacement only when the motor number, mounting configuration, electrical specifications, and other physical characteristics match the existing motor. Because central vacuum motors can look very similar while having different specifications, verify the number printed on your existing motor before purchasing.
Compatible Central Vacuum Models
The Ametek Lamb 116763 is commonly cross-referenced with:
- AirVac 395
- BEAM 168C
- Vacuflo Maxum Whisper
BEAM motor cross-reference information specifically lists the BEAM 168C → 116763 replacement motor.
Replace Your Central Vacuum Motor
Replacing a worn central vacuum motor can cost-effectively restore an older power unit. Before ordering, remove the existing motor or inspect its identification label and compare the motor number with 116763.
Replace the motor when it no longer produces adequate suction or shows signs of failure. Common symptoms can include excessive sparking, unusual electrical odors, intermittent operation, unusual motor noise, or failure to start.
Important: Central vacuum motors are not universally interchangeable. Even motors with similar dimensions may have different voltage, mounting, airflow, or electrical characteristics. Verify the exact motor number before ordering.
Why Choose an Ametek Lamb Replacement Motor?
Ametek Lamb motors are widely used in vacuum and central vacuum equipment. The 116763 provides a proven 2-stage bypass design for compatible central vacuum power units and is available as a replacement for select older systems.
If your central vacuum system uses an 116763 motor, replacing the motor rather than the complete power unit may be an economical way to extend the system's useful life.
Key Features
- Genuine Ametek Lamb 116763 central vacuum motor
- 120-volt electrical configuration
- 2-stage motor design
- 5.7-inch fan diameter
- Bypass/peripheral-discharge motor design
- Approximately 110 CFM maximum airflow
- Approximately 107.1 inches H₂O sealed vacuum
- Approximately 387 Air Watts
- Common replacement for BEAM 168C
- Also used with select AirVac and Vacuflo systems
- Ideal for replacing a worn or failed central vacuum motor
- Verify existing motor number before ordering
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33423-22 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Fan Diameter | 5.7 |
| Air Discharge | Bypass Tangential |
| Motor Bearing | Double Ball Bearings |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
Product Description
Product Specifications
Product Videos
Product Reviews
Read about the 119633 Ametek Lamb Motor
Restore your central vacuum system's performance with the Ametek Lamb 116763 central vacuum motor. This replacement motor fits select central vacuum power units and delivers the dependable performance expected from a genuine Lamb Ametek motor.
The 116763 features a 120-volt, 2-stage bypass design with a 5.7-inch fan diameter. Bypass motors keep the motor's cooling air separate from the vacuumed air, making this type of motor well suited for central vacuum applications. The motor generates strong vacuum pressure and airflow for residential central vacuum systems.
The Ametek Lamb 116763 is commonly used as a replacement motor for AirVac 395, BEAM 168C, and Vacuflo Maxum Whisper central vacuum systems. BEAM motor cross-reference information also identifies the 116763 as the replacement motor for the BEAM 168C.
Designed for Central Vacuum Replacement
A failing central vacuum motor can result in reduced suction, unusual motor noise, intermittent operation, overheating, or a complete loss of power. Replacing the motor can restore the vacuum's operating performance without necessarily replacing the entire central vacuum power unit.
The 116763 is a direct motor replacement only when the motor number, mounting configuration, electrical specifications, and other physical characteristics match the existing motor. Because central vacuum motors can look very similar while having different specifications, verify the number printed on your existing motor before purchasing.
Compatible Central Vacuum Models
The Ametek Lamb 116763 is commonly cross-referenced with:
- AirVac 395
- BEAM 168C
- Vacuflo Maxum Whisper
BEAM motor cross-reference information specifically lists the BEAM 168C → 116763 replacement motor.
Replace Your Central Vacuum Motor
Replacing a worn central vacuum motor can cost-effectively restore an older power unit. Before ordering, remove the existing motor or inspect its identification label and compare the motor number with 116763.
Replace the motor when it no longer produces adequate suction or shows signs of failure. Common symptoms can include excessive sparking, unusual electrical odors, intermittent operation, unusual motor noise, or failure to start.
Important: Central vacuum motors are not universally interchangeable. Even motors with similar dimensions may have different voltage, mounting, airflow, or electrical characteristics. Verify the exact motor number before ordering.
Why Choose an Ametek Lamb Replacement Motor?
Ametek Lamb motors are widely used in vacuum and central vacuum equipment. The 116763 provides a proven 2-stage bypass design for compatible central vacuum power units and is available as a replacement for select older systems.
If your central vacuum system uses an 116763 motor, replacing the motor rather than the complete power unit may be an economical way to extend the system's useful life.
Key Features
- Genuine Ametek Lamb 116763 central vacuum motor
- 120-volt electrical configuration
- 2-stage motor design
- 5.7-inch fan diameter
- Bypass/peripheral-discharge motor design
- Approximately 110 CFM maximum airflow
- Approximately 107.1 inches H₂O sealed vacuum
- Approximately 387 Air Watts
- Common replacement for BEAM 168C
- Also used with select AirVac and Vacuflo systems
- Ideal for replacing a worn or failed central vacuum motor
- Verify existing motor number before ordering
-
