AstroVac SR-89 Motor

Name: AstroVac SR-89 Motor
Brand: Ametek-Lamb
SKU: MT:0024-AstroVac SR-89
Price: 158.00 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$158.00

In stock

SKU

MT:0024-AstroVac SR-89

Be the first to review this product

MT:0024-AstroVac SR-89

Please Make Sure to
Double-check the Motor Number Before you Purchase.

If you are Not Sure if this Motor Will Fit Your Unit,
Please Call

1-800-322-2965 Before you Purchase.

Motors are Non-Refundable

The AstroVac SR-89 Central Vacuum Motor is a high-performance replacement motor designed for select AstroVac central vacuum systems. The SR-89 uses two 220–240V motors, so verify the motor number and quantity needed before ordering. A commonly used replacement is the Ametek-Lamb 117123, a 3-stage, 5.7-inch bypass motor with tangential discharge and ball-bearing construction

Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3 Product-Smiley

SELECT PRODUCT OPTIONS

Product Quantity

DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"

Final Price

$158.00

Details

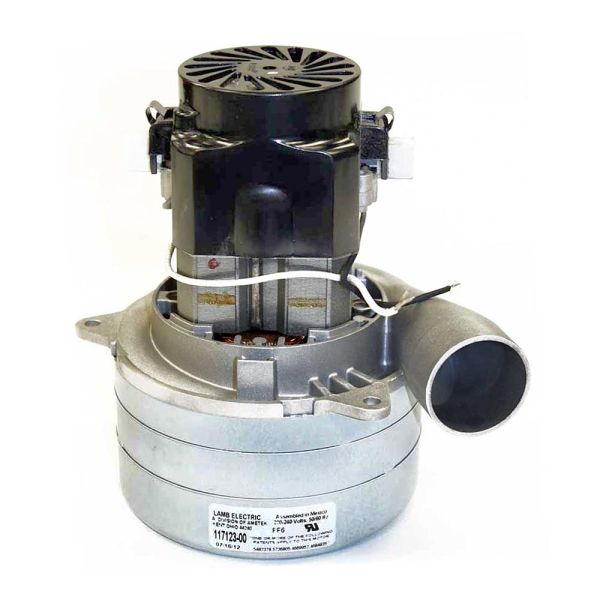

The Ametek-Lamb 117123 is commonly used as a replacement motor for the AstroVac SR-89. This powerful motor features a 3-stage design, 5.7-inch fan diameter, bypass cooling system, tangential air discharge, and ball-bearing construction. It delivers strong suction and airflow to help restore your central vacuum system's performance.

Because motor compatibility can vary by production version, compare the part number, voltage, dimensions, and specifications of your original motor before ordering. Replacing worn motor gaskets during installation can also help ensure a proper seal and optimal vacuum performance.

Key Features

Replacement motor for AstroVac SR-89 central vacuum systems
220–240 volt operation
SR-89 system uses two motors
Common replacement motor: Ametek-Lamb 117123
3-stage motor design
5.7-inch fan diameter
Bypass motor construction
Tangential air discharge
Ball-bearing construction
Designed to restore central vacuum performance
Verify your original motor number before ordering

More Information

Replacement Part Type	Motors
Voltage	240
Carbon Brush	33423-12
Motor Stages	3
Motor Speeds	1
Motor Type	Series Universal
Motor Frequency	50/60Hz
Motor Fan Diameter	5.700
Fan System Style	Bypass
Air Discharge	Tangential
Motor Low Temp	32.000
Motor High Temp	104.000
Motor Bearing	Ball
Motor Comm Bracket Material	Aluminum
Motor Fan Bracket Material	Aluminum
Motor Insulation Class	A
Motor Fan Shell Coat	none
Motor Duty Cycle	Intermittent
Motor Electrical Connection	Terminals
Weight (lbs)	9.000000

Reviews

Product Videos

Product Description

Product Specifications

Download Instructions

Product Videos

Product Reviews

Read about the 117123-00 Ametek Motor

Key Features

Replacement motor for AstroVac SR-89 central vacuum systems
220–240 volt operation
SR-89 system uses two motors
Common replacement motor: Ametek-Lamb 117123
3-stage motor design
5.7-inch fan diameter
Bypass motor construction
Tangential air discharge
Ball-bearing construction
Designed to restore central vacuum performance
Verify your original motor number before ordering

Specifications of the 117123-00 Ametek Motor

Replacement Part Type	Motors
Voltage	240
Carbon Brush	33423-12
Motor Stages	3
Motor Speeds	1
Motor Type	Series Universal
Motor Frequency	50/60Hz
Motor Fan Diameter	5.700
Fan System Style	Bypass
Air Discharge	Tangential
Motor Low Temp	32.000
Motor High Temp	104.000
Motor Bearing	Ball
Motor Comm Bracket Material	Aluminum
Motor Fan Bracket Material	Aluminum
Motor Insulation Class	A
Motor Fan Shell Coat	none
Motor Duty Cycle	Intermittent
Motor Electrical Connection	Terminals
Weight (lbs)	9.000000
