Beam 284 Central Vacuum Motor
$248.00
MT:0004-Beam 284
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

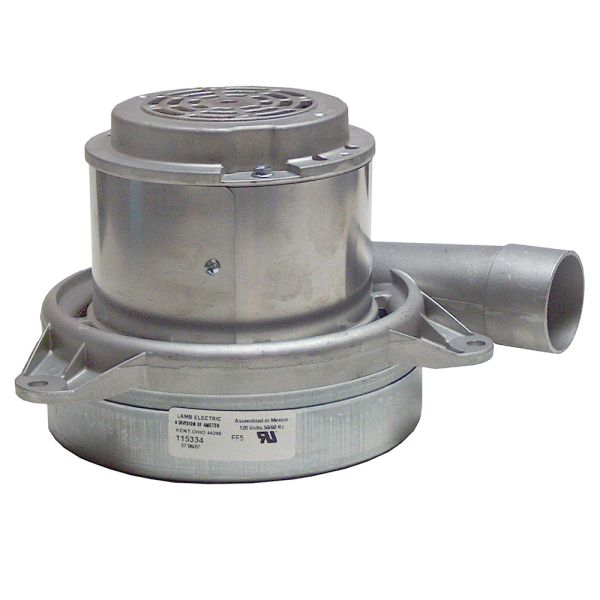

Restore your Beam 284 central vacuum's performance with the genuine Ametek-Lamb 115334 replacement motor. This 120-volt, 2-stage bypass motor is designed for compatible Beam 284 central vacuum systems, providing dependable suction and reliable operation. Replacing a worn or failed motor is a cost-effective way to extend the life of your central vacuum system.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Bring your Beam 284 central vacuum back to peak performance with the genuine Ametek-Lamb 115334 Central Vacuum Motor. If your central vacuum has lost suction, produces unusual noises, overheats, or no longer operates, replacing the motor is often the most economical solution. The genuine 115334 replacement motor is engineered to restore dependable performance while extending the life of your existing Beam central vacuum system.
The Ametek-Lamb 115334 is a 120-volt, 2-stage bypass motor featuring a 7.2-inch fan, tangential air discharge, and durable ball bearings. Built for central vacuum applications, it delivers the dependable airflow and cleaning performance homeowners expect from their Beam built-in vacuum system.
Genuine Beam 284 Replacement Motor
Designed for compatible Beam 284 central vacuum systems, the Ametek-Lamb 115334 replacement motor meets original equipment specifications for fit and performance. Using a genuine replacement motor helps ensure proper installation and dependable operation while maintaining your central vacuum's cleaning power.
Signs Your Beam 284 Motor Needs Replacement
If your Beam 284 central vacuum is showing any of these symptoms, the motor may need replacing:
- Reduced suction throughout the home
- Loud or unusual motor noises
- Burning smell during operation
- Motor overheating or shutting off unexpectedly
- Vacuum motor will not start or runs intermittently
Replacing the motor can restore your central vacuum's performance without replacing the entire power unit.
Ametek-Lamb 115334 Motor Features
- Genuine Ametek-Lamb replacement motor
- Designed for compatible Beam 284 central vacuum systems
- 120-Volt Series Universal Motor
- 2-Stage Bypass Motor Design
- 7.2-Inch Fan Diameter
- Tangential Air Discharge
- Ball Bearing Construction
- Lead Wire Electrical Connections
- Carbon Brush Part Number: 33415-4
- Ideal for residential and commercial central vacuum applications
Why Choose the Genuine Ametek-Lamb 115334?
Choosing a genuine Ametek-Lamb 115334 replacement motor helps ensure long-lasting performance, reliable operation, and proper compatibility with your Beam 284 central vacuum. It is a trusted replacement motor used by homeowners, installers, and vacuum repair professionals.
Before ordering, compare the part number on your existing motor to confirm compatibility. Replacing the motor gasket during installation is also recommended to help maintain an effective seal and maximize vacuum performance.
Whether you're repairing an aging power unit or restoring your home's built-in vacuum system, the Beam 284 Central Vacuum Motor 115334 is a dependable replacement that helps keep your central vacuum operating efficiently for years to come.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33415-4 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 7.2 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Thermal Protection | None |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | None |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 115334 Ametek-Lamb Motor
Bring your Beam 284 central vacuum back to peak performance with the genuine Ametek-Lamb 115334 Central Vacuum Motor. If your central vacuum has lost suction, produces unusual noises, overheats, or no longer operates, replacing the motor is often the most economical solution. The genuine 115334 replacement motor is engineered to restore dependable performance while extending the life of your existing Beam central vacuum system.
The Ametek-Lamb 115334 is a 120-volt, 2-stage bypass motor featuring a 7.2-inch fan, tangential air discharge, and durable ball bearings. Built for central vacuum applications, it delivers the dependable airflow and cleaning performance homeowners expect from their Beam built-in vacuum system.
Genuine Beam 284 Replacement Motor
Designed for compatible Beam 284 central vacuum systems, the Ametek-Lamb 115334 replacement motor meets original equipment specifications for fit and performance. Using a genuine replacement motor helps ensure proper installation and dependable operation while maintaining your central vacuum's cleaning power.
Signs Your Beam 284 Motor Needs Replacement
If your Beam 284 central vacuum is showing any of these symptoms, the motor may need replacing:
- Reduced suction throughout the home
- Loud or unusual motor noises
- Burning smell during operation
- Motor overheating or shutting off unexpectedly
- Vacuum motor will not start or runs intermittently
Replacing the motor can restore your central vacuum's performance without replacing the entire power unit.
Ametek-Lamb 115334 Motor Features
- Genuine Ametek-Lamb replacement motor
- Designed for compatible Beam 284 central vacuum systems
- 120-Volt Series Universal Motor
- 2-Stage Bypass Motor Design
- 7.2-Inch Fan Diameter
- Tangential Air Discharge
- Ball Bearing Construction
- Lead Wire Electrical Connections
- Carbon Brush Part Number: 33415-4
- Ideal for residential and commercial central vacuum applications
Why Choose the Genuine Ametek-Lamb 115334?
Choosing a genuine Ametek-Lamb 115334 replacement motor helps ensure long-lasting performance, reliable operation, and proper compatibility with your Beam 284 central vacuum. It is a trusted replacement motor used by homeowners, installers, and vacuum repair professionals.
Before ordering, compare the part number on your existing motor to confirm compatibility. Replacing the motor gasket during installation is also recommended to help maintain an effective seal and maximize vacuum performance.
Whether you're repairing an aging power unit or restoring your home's built-in vacuum system, the Beam 284 Central Vacuum Motor 115334 is a dependable replacement that helps keep your central vacuum operating efficiently for years to come.
-
