Beam 75 Central Vacuum Motor
$248.00
MT:0004-Beam 75
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

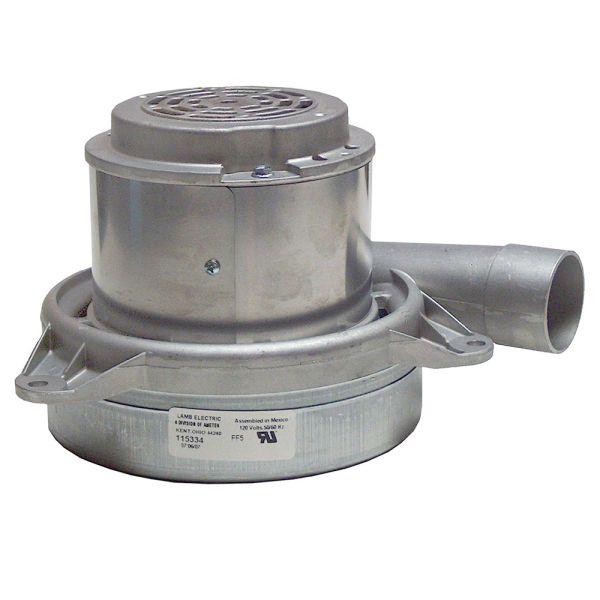

Restore the power of your Beam 75 central vacuum with the genuine Ametek-Lamb 115334 replacement motor. This 120-volt, 2-stage bypass motor is designed to replace worn or failed motors in compatible Beam 75 central vacuum systems, helping maintain dependable suction and cleaning performance. Built with ball bearings and durable aluminum construction, the 115334 motor is a trusted replacement to extend the life of your central vacuum.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Bring your Beam 75 central vacuum back to life with the genuine Ametek-Lamb 115334 Central Vacuum Motor. If your Beam 75 has lost suction, is making unusual noises, or the motor has stopped running, replacing the motor is often a cost-effective alternative to replacing the entire central vacuum system.
The Ametek-Lamb 115334 is one of the most widely used replacement motors in the central vacuum industry. Designed as a 120-volt, 2-stage bypass motor with a 7.2-inch fan, it delivers dependable performance for compatible Beam central vacuum systems and many other residential and commercial built-in vacuum units.
Genuine Beam 75 Replacement Motor
This genuine Ametek-Lamb replacement motor is specifically compatible with the Beam 75 central vacuum and is also used in numerous other central vacuum brands and models. Manufactured to meet original equipment specifications, the 115334 motor provides a reliable fit and dependable operation when replacing a worn or failed motor.
Signs Your Beam 75 Motor May Need Replacing
Over time, central vacuum motors naturally wear from years of use. Common signs that it may be time to replace your Beam 75 motor include:
- Reduced suction throughout your home
- Excessive motor noise or grinding sounds
- Burning odors during operation
- Motor overheating or shutting off unexpectedly
- The vacuum no longer starts or runs consistently
Replacing the motor can restore your Beam 75's performance without the expense of installing an entirely new central vacuum system.
Ametek-Lamb 115334 Motor Features
- Genuine Ametek-Lamb replacement motor
- Designed for compatible Beam 75 central vacuum systems
- 120-Volt Series Universal Motor
- 2-Stage Bypass Design
- 7.2-Inch Fan Diameter
- Tangential Air Discharge
- Ball Bearing Construction
- Lead Wire Electrical Connections
- Carbon Brush Part Number: 33415-4
- Designed for residential and commercial central vacuum applications
Why Choose the Genuine 115334 Motor?
Using a genuine Ametek-Lamb motor helps ensure proper fit, dependable operation, and long-lasting performance. The 115334 replacement motor is engineered for central vacuum applications and is commonly chosen by homeowners, installers, and vacuum repair professionals seeking a quality replacement.
Before ordering, compare the part number on your existing motor to confirm compatibility. The Ametek-Lamb 115334 is the correct replacement for the Beam 75 and many other compatible central vacuum models. ThinkVacuums also recommends inspecting or replacing the motor gasket during installation to help ensure a proper seal.
Whether you're repairing an older Beam 75 or restoring your built-in vacuum system's performance, the Beam 75 Central Vacuum Motor 115334 provides a dependable replacement to keep your central vacuum operating efficiently for years to come.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33415-4 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 7.2 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Thermal Protection | None |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | None |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 115334 Ametek-Lamb Motor
Bring your Beam 75 central vacuum back to life with the genuine Ametek-Lamb 115334 Central Vacuum Motor. If your Beam 75 has lost suction, is making unusual noises, or the motor has stopped running, replacing the motor is often a cost-effective alternative to replacing the entire central vacuum system.
The Ametek-Lamb 115334 is one of the most widely used replacement motors in the central vacuum industry. Designed as a 120-volt, 2-stage bypass motor with a 7.2-inch fan, it delivers dependable performance for compatible Beam central vacuum systems and many other residential and commercial built-in vacuum units.
Genuine Beam 75 Replacement Motor
This genuine Ametek-Lamb replacement motor is specifically compatible with the Beam 75 central vacuum and is also used in numerous other central vacuum brands and models. Manufactured to meet original equipment specifications, the 115334 motor provides a reliable fit and dependable operation when replacing a worn or failed motor.
Signs Your Beam 75 Motor May Need Replacing
Over time, central vacuum motors naturally wear from years of use. Common signs that it may be time to replace your Beam 75 motor include:
- Reduced suction throughout your home
- Excessive motor noise or grinding sounds
- Burning odors during operation
- Motor overheating or shutting off unexpectedly
- The vacuum no longer starts or runs consistently
Replacing the motor can restore your Beam 75's performance without the expense of installing an entirely new central vacuum system.
Ametek-Lamb 115334 Motor Features
- Genuine Ametek-Lamb replacement motor
- Designed for compatible Beam 75 central vacuum systems
- 120-Volt Series Universal Motor
- 2-Stage Bypass Design
- 7.2-Inch Fan Diameter
- Tangential Air Discharge
- Ball Bearing Construction
- Lead Wire Electrical Connections
- Carbon Brush Part Number: 33415-4
- Designed for residential and commercial central vacuum applications
Why Choose the Genuine 115334 Motor?
Using a genuine Ametek-Lamb motor helps ensure proper fit, dependable operation, and long-lasting performance. The 115334 replacement motor is engineered for central vacuum applications and is commonly chosen by homeowners, installers, and vacuum repair professionals seeking a quality replacement.
Before ordering, compare the part number on your existing motor to confirm compatibility. The Ametek-Lamb 115334 is the correct replacement for the Beam 75 and many other compatible central vacuum models. ThinkVacuums also recommends inspecting or replacing the motor gasket during installation to help ensure a proper seal.
Whether you're repairing an older Beam 75 or restoring your built-in vacuum system's performance, the Beam 75 Central Vacuum Motor 115334 provides a dependable replacement to keep your central vacuum operating efficiently for years to come.
-
