Beam SC225A Central Vacuum Motor

Read about the 119992 Ametek Lamb Motor

Keep your Beam SC225A central vacuum operating with dependable suction and airflow by replacing a worn or failed motor with the Ametek-Lamb 119992 Central Vacuum Motor. When the motor in an older central vacuum system begins to wear out, replacing the motor can be a practical and economical alternative to replacing the entire power unit.

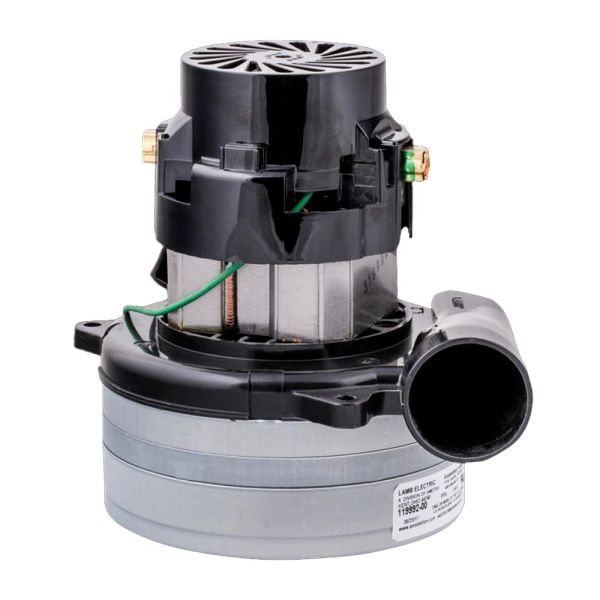

The Ametek-Lamb 119992 is a genuine replacement motor listed for the Beam SC225A central vacuum. This 115-volt motor features a 2-stage bypass design, a 5.7-inch fan, single-speed operation, tangential air discharge, and ball-bearing construction. It is commonly used in residential and commercial central vacuum applications.

Genuine Beam SC225A Replacement Motor

The motor is the heart of your central vacuum power unit. It creates the suction needed to pull dirt, dust, pet hair, and other debris through the home's installed central vacuum tubing and into the collection system.

If the motor in your Beam SC225A has become noisy, overheats, loses performance, or stops running, installing the correct replacement motor can help restore your central vacuum's operation without replacing the entire system.

The Ametek-Lamb 119992 replacement motor is specifically listed for the Beam SC225A, making it an excellent replacement option for compatible units.

Signs Your Beam SC225A Motor May Need Replacement

Central vacuum motors naturally experience wear after years of regular use. Some common signs of a failing Beam SC225A motor include:

• Reduced suction throughout the home
• Excessive or unusual motor noise
• Grinding, rattling, or squealing sounds
• Burning odor while the vacuum is operating
• Motor overheating
• Motor shutting off during use
• Central vacuum will not start
• Motor starts and stops intermittently

Before replacing the motor, check other possible causes of poor suction, including a clogged hose, blocked tubing, a full collection container, a dirty filter, or an electrical problem.

Ametek-Lamb 119992 Motor Features

The Ametek-Lamb 119992 is designed for compatible Beam central vacuum applications and provides the motor configuration required for the SC225A.

Motor specifications include:

• Genuine Ametek-Lamb replacement motor
• Compatible with Beam SC225A central vacuum systems
• 115-volt operation
• 2-stage motor design
• Single-speed operation
• Series universal motor
• 5.7-inch fan diameter
• Bypass fan system
• Tangential air discharge
• Ball bearing construction
• Carbon brush part number 33505-1
• 50/60 Hz frequency
• Approximately 9-pound motor weight

Replace Your Beam SC225A Vacuum Motor

Replacing the motor can be a cost-effective way to repair an older Beam SC225A central vacuum. If the power unit housing, collection system, tubing, inlet valves, electrical components, and other parts are still in good condition, replacing the motor may allow you to continue using your existing central vacuum installation.

A properly matched Beam SC225A replacement motor can help restore the suction and airflow necessary for whole-home cleaning while extending the useful life of your central vacuum system.

Rather than removing your home's existing central vacuum tubing and inlet system, replacing the motor allows you to keep the installation you already have.

Why Choose the Ametek-Lamb 119992?

The Ametek-Lamb 119992 central vacuum motor is compatible with a wide range of Beam and other central vacuum systems. ThinkVacuums lists the 119992 for the Beam SC225A as well as Beam 275A, Beam 375A, SC225C, SC275A, SC275C, SC300A, SC325A, SC325C, SC375A, SC375B, SC375C, SC3700A, PU201A, and PU503A models.

The motor's 2-stage bypass design, 5.7-inch fan, ball bearing construction, and tangential air discharge make it a suitable replacement for compatible central vacuum power units.

Important Beam SC225A Motor Compatibility Information

Before ordering a Beam SC225A central vacuum motor, always compare the motor number and specifications with those of your existing motor. Central vacuum motors can look similar yet have different voltages, fan diameters, mounting configurations, electrical connections, and other specifications.

ThinkVacuums specifically recommends double-checking the motor number before purchasing. Replacement central vacuum motors are also listed as non-refundable, making compatibility verification especially important.

Ametek-Lamb also recommends routinely replacing carbon brushes and motor gaskets to help maintain motor performance and service life. The 119992 uses 33505-1 carbon brushes, and compatible 5.7-inch motor gaskets are available for this motor.

Shop the Beam SC225A Central Vacuum Motor

If you're searching for a Beam SC225A central vacuum motor, Beam SC225A replacement motor, Ametek-Lamb 119992, Ametek 119992 motor, or Beam central vacuum replacement motor, the Ametek-Lamb 119992 is a replacement option for compatible SC225A systems.

Replacing a worn or failed motor can help restore dependable suction and extend the life of your existing Beam SC225A central vacuum. With the correct replacement motor, you can continue using your home's existing tubing, inlet valves, hose, and central vacuum accessories.

Always verify the motor part number and specifications before ordering to make sure the Ametek-Lamb 119992 is compatible with your Beam SC225A.
