Cana-Vac LS-590 Central Vacuum Motor
$134.00
MT:5011
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

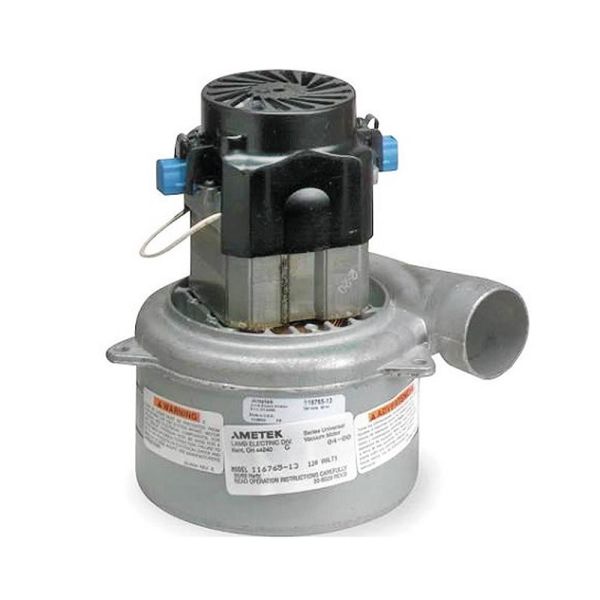

The Ametek-Lamb 116765 Central Vacuum Motor is a powerful replacement motor for the Cana-Vac LS-590 central vacuum system. This 120V, 3-stage, 5.7-inch tangential bypass motor delivers about 465 Air Watts and 136 inches of water lift, helping restore suction and performance to your Cana-Vac central vacuum.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The Cana-Vac LS-590 Central Vacuum Motor is a high-performance replacement motor designed for compatible Cana-Vac LS-590 central vacuum systems. If your existing motor has become noisy, weak, overheated, or has stopped working completely, replacing it can restore your central vacuum's suction and cleaning performance without replacing the entire power unit.
The LS-590 uses a 5.7-inch, 3-stage bypass motor. The compatible Ametek-Lamb 116765-00 motor features tangential bypass discharge and dual ball bearings for dependable operation. It operates at approximately 120 volts and separates the working vacuum airflow from the motor's cooling airflow.
The 116765 motor produces approximately 465 Air Watts, 95.3 CFM of airflow, and 136 inches of water lift under specified test conditions. The motor is rated at approximately 1,700 watts with a maximum current of approximately 13.13 amps. These specifications correspond closely with the original performance specifications of the Cana-Vac LS-590.
The Ametek-Lamb 116765 is also commonly identified by alternate markings including 6765, 11-6765, and M-6765. This makes it important to compare the number printed on your existing motor before ordering.
Why Choose the Ametek-Lamb 116765 Replacement Motor?
Replacing the motor instead of the complete power unit can cost-effectively extend the useful life of your Cana-Vac LS-590. A properly matched replacement motor can restore the suction needed to effectively clean carpets, hard floors, upholstery, and other surfaces throughout the home.
The tangential bypass design is particularly well suited to central vacuum applications because it separates the motor's working airflow from its cooling airflow. This design helps protect the motor from the debris-laden air being pulled through the vacuum system.
Features and Benefits
- Replacement motor for the Cana-Vac LS-590 central vacuum
- Ametek-Lamb model 116765-00
- Also identified as 116765, 6765, 11-6765, and M-6765
- 120V operation
- 3-stage motor
- 5.7-inch motor diameter
- Tangential bypass discharge
- Dual ball-bearing construction
- Approximately 465 Air Watts
- Approximately 136 inches of water lift
- Approximately 95.3 CFM airflow
- Approximately 1,700 watts input power
- Helps restore lost suction and cleaning performance
- Excellent replacement option for a worn or failed LS-590 motor
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33423-1 |
| Motor Watts | 1500 |
| Motor Stages | 3 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
Product Description
Product Specifications
Product Reviews
Read about the LS-590 Cnetral Vacuum Motor
The Cana-Vac LS-590 Central Vacuum Motor is a high-performance replacement motor designed for compatible Cana-Vac LS-590 central vacuum systems. If your existing motor has become noisy, weak, overheated, or has stopped working completely, replacing it can restore your central vacuum's suction and cleaning performance without replacing the entire power unit.
The LS-590 uses a 5.7-inch, 3-stage bypass motor. The compatible Ametek-Lamb 116765-00 motor features tangential bypass discharge and dual ball bearings for dependable operation. It operates at approximately 120 volts and separates the working vacuum airflow from the motor's cooling airflow.
The 116765 motor produces approximately 465 Air Watts, 95.3 CFM of airflow, and 136 inches of water lift under specified test conditions. The motor is rated at approximately 1,700 watts with a maximum current of approximately 13.13 amps. These specifications correspond closely with the original performance specifications of the Cana-Vac LS-590.
The Ametek-Lamb 116765 is also commonly identified by alternate markings including 6765, 11-6765, and M-6765. This makes it important to compare the number printed on your existing motor before ordering.
Why Choose the Ametek-Lamb 116765 Replacement Motor?
Replacing the motor instead of the complete power unit can cost-effectively extend the useful life of your Cana-Vac LS-590. A properly matched replacement motor can restore the suction needed to effectively clean carpets, hard floors, upholstery, and other surfaces throughout the home.
The tangential bypass design is particularly well suited to central vacuum applications because it separates the motor's working airflow from its cooling airflow. This design helps protect the motor from the debris-laden air being pulled through the vacuum system.
Features and Benefits
- Replacement motor for the Cana-Vac LS-590 central vacuum
- Ametek-Lamb model 116765-00
- Also identified as 116765, 6765, 11-6765, and M-6765
- 120V operation
- 3-stage motor
- 5.7-inch motor diameter
- Tangential bypass discharge
- Dual ball-bearing construction
- Approximately 465 Air Watts
- Approximately 136 inches of water lift
- Approximately 95.3 CFM airflow
- Approximately 1,700 watts input power
- Helps restore lost suction and cleaning performance
- Excellent replacement option for a worn or failed LS-590 motor
-
