Cana-Vac LS-650 Central Vacuum Motor
$218.00
MT:5009
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

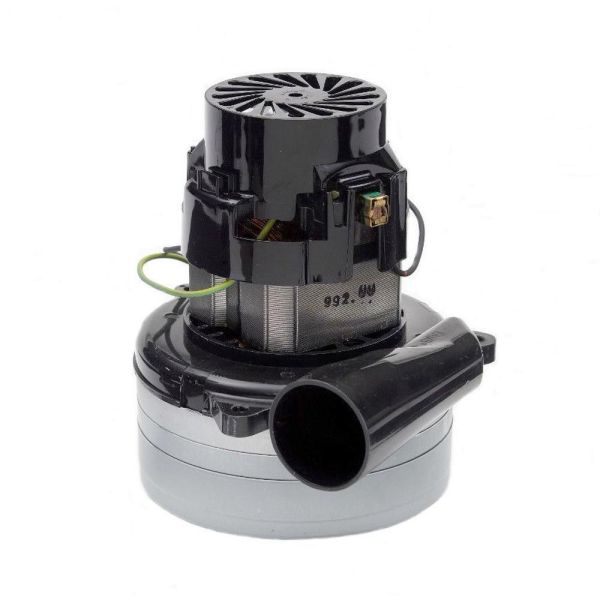

Restore powerful suction and reliable performance to your Cana-Vac LS-650 central vacuum with this replacement Ametek-Lamb 119631 motor. This 120-volt, 2-stage, 5.7-inch tangential bypass motor is compatible with the Cana-Vac LS-650 central vacuum power unit.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The Cana-Vac LS-650 Central Vacuum Motor is a replacement motor designed to restore the performance of your Cana-Vac Signature LS-650 central vacuum system. If your existing power unit has experienced reduced suction, excessive noise, overheating, intermittent operation, or complete motor failure, replacing the motor can help extend the life of your central vacuum system.
The Cana-Vac LS-650 uses a powerful 5.7-inch, 2-stage tangential bypass motor operating on 120 volts. The tangential bypass design uses separate cooling airflow to help keep the motor cooler during operation, while the two-stage design provides the suction performance needed for demanding residential central vacuum applications.
The Ametek-Lamb 119631 is identified as a compatible replacement motor for the Cana-Vac LS-650. This motor fits the original motor configuration used in compatible LS-650 power units, helping restore dependable operation without replacing the entire central vacuum system.
The LS-650 central vacuum was rated at about 525 air watts and 128 inches of water lift, so proper motor replacement is important to maintain the original system's performance.
Features and Benefits
- Replacement motor for the Cana-Vac LS-650 central vacuum
- Compatible Ametek-Lamb 119631 replacement motor
- 120-volt operation
- 2-stage motor design
- 5.7-inch motor diameter
- Tangential bypass motor construction
- Dedicated cooling airflow helps support long motor life
- Helps restore suction and overall cleaning performance
- Ideal for replacing a worn, noisy, or failed central vacuum motor
- Designed for demanding residential central vacuum applications
Compatibility
This replacement motor is designed for:
- Cana-Vac Signature LS-650 Central Vacuum
Important Compatibility Information
Before ordering, always compare the replacement motor with the original motor removed from your vacuum. Verify the motor number, voltage, diameter, height, mounting configuration, electrical terminals, and exhaust location to ensure proper fitment.
Motor Specifications
| Compatible Vacuum Model | Cana-Vac LS-650 |
| Replacement Motor | Ametek-Lamb 119631 |
| Voltage | 120V |
| Motor Type | Tangential Bypass |
| Fan Stages | 2 |
| Motor Diameter | 5.7 Inches |
| Application | Residential Central Vacuum |
| Original LS-650 Air Watts | Approximately 525 AW |
| Original LS-650 Water Lift | Approximately 128 Inches |
| Original LS-650 Amperage | Up to 15 Amps |
Signs Your Cana-Vac LS-650 Motor May Need Replacement
Your central vacuum motor may need replacement if you notice:
- Reduced suction throughout the home
- Excessive motor noise or vibration
- A burning smell during operation
- Intermittent starting or stopping
- Motor overheating
- The vacuum runs but produces little or no suction
- Complete failure of the power unit to operate
Before replacing the motor, inspect the vacuum bag or filter, hose, piping, inlet valves, and electrical controls to make sure another issue is not causing the loss of performance.
Installation Information
Central vacuum motor replacement involves electrical components and should be performed by a qualified technician or someone experienced with appliance repair. Always disconnect the central vacuum from electrical power before servicing.
Carefully compare the replacement motor with the original motor before installation. Verify the motor number and physical configuration to ensure the replacement matches your Cana-Vac LS-650 power unit.
Replacing the motor can be a cost-effective way to extend the service life of a high-quality central vacuum system and restore the suction power needed for everyday cleaning.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33505-1 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Plastic |
| Motor Fan Bracket Material | Plastic |
| Motor Insulation Class | A |
| Motor Electrical Connection | Lead Wires |
Product Description
Product Specifications
Product Reviews
Read about the Cana-Vac LS-650 Central Vacuum Motor
The Cana-Vac LS-650 Central Vacuum Motor is a replacement motor designed to restore the performance of your Cana-Vac Signature LS-650 central vacuum system. If your existing power unit has experienced reduced suction, excessive noise, overheating, intermittent operation, or complete motor failure, replacing the motor can help extend the life of your central vacuum system.
The Cana-Vac LS-650 uses a powerful 5.7-inch, 2-stage tangential bypass motor operating on 120 volts. The tangential bypass design uses separate cooling airflow to help keep the motor cooler during operation, while the two-stage design provides the suction performance needed for demanding residential central vacuum applications.
The Ametek-Lamb 119631 is identified as a compatible replacement motor for the Cana-Vac LS-650. This motor fits the original motor configuration used in compatible LS-650 power units, helping restore dependable operation without replacing the entire central vacuum system.
The LS-650 central vacuum was rated at about 525 air watts and 128 inches of water lift, so proper motor replacement is important to maintain the original system's performance.
Features and Benefits
- Replacement motor for the Cana-Vac LS-650 central vacuum
- Compatible Ametek-Lamb 119631 replacement motor
- 120-volt operation
- 2-stage motor design
- 5.7-inch motor diameter
- Tangential bypass motor construction
- Dedicated cooling airflow helps support long motor life
- Helps restore suction and overall cleaning performance
- Ideal for replacing a worn, noisy, or failed central vacuum motor
- Designed for demanding residential central vacuum applications
Compatibility
This replacement motor is designed for:
- Cana-Vac Signature LS-650 Central Vacuum
Important Compatibility Information
Before ordering, always compare the replacement motor with the original motor removed from your vacuum. Verify the motor number, voltage, diameter, height, mounting configuration, electrical terminals, and exhaust location to ensure proper fitment.
Motor Specifications
| Compatible Vacuum Model | Cana-Vac LS-650 |
| Replacement Motor | Ametek-Lamb 119631 |
| Voltage | 120V |
| Motor Type | Tangential Bypass |
| Fan Stages | 2 |
| Motor Diameter | 5.7 Inches |
| Application | Residential Central Vacuum |
| Original LS-650 Air Watts | Approximately 525 AW |
| Original LS-650 Water Lift | Approximately 128 Inches |
| Original LS-650 Amperage | Up to 15 Amps |
Signs Your Cana-Vac LS-650 Motor May Need Replacement
Your central vacuum motor may need replacement if you notice:
- Reduced suction throughout the home
- Excessive motor noise or vibration
- A burning smell during operation
- Intermittent starting or stopping
- Motor overheating
- The vacuum runs but produces little or no suction
- Complete failure of the power unit to operate
Before replacing the motor, inspect the vacuum bag or filter, hose, piping, inlet valves, and electrical controls to make sure another issue is not causing the loss of performance.
Installation Information
Central vacuum motor replacement involves electrical components and should be performed by a qualified technician or someone experienced with appliance repair. Always disconnect the central vacuum from electrical power before servicing.
Carefully compare the replacement motor with the original motor before installation. Verify the motor number and physical configuration to ensure the replacement matches your Cana-Vac LS-650 power unit.
Replacing the motor can be a cost-effective way to extend the service life of a high-quality central vacuum system and restore the suction power needed for everyday cleaning.
-
