Cana-Vac LS-690 Central Vacuum Motor
$218.00
MT:5010
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

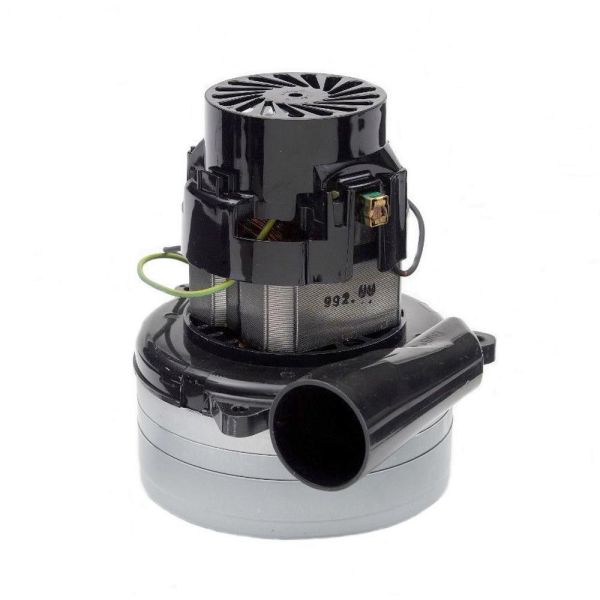

Restore your Cana-Vac LS-690 central vacuum's performance with the genuine Ametek-Lamb 119914-45 replacement motor. This powerful 120-volt, 2-stage, 5.7-inch bypass motor features tangential discharge and replaces compatible original motors in the Cana-Vac LS-690 central vacuum system.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The Cana-Vac LS-690 Central Vacuum Motor is a high-quality replacement motor designed to restore powerful suction and dependable performance to compatible Cana-Vac LS-690 central vacuum systems. The Ametek-Lamb 119914-45 is a genuine replacement motor specifically listed for the Cana-Vac LS-690 and provides a reliable solution when the original motor becomes worn, noisy, or fails.
This motor operates on 120 volts and features a 2-stage bypass design with a 5.7-inch fan diameter. Its tangential air discharge configuration is designed for central vacuum applications requiring a powerful and dependable motor.
The 119914-45 motor delivers up to approximately 566 air watts and approximately 140 inches of sealed vacuum, helping restore the suction performance needed for effective whole-home cleaning.
The Ametek-Lamb 119914-45 also replaces older motor references 119956 and 119914-07, making it an excellent replacement option when upgrading from one of these earlier motor versions.
Replacing a worn central vacuum motor can be a cost-effective way to extend the life of your existing Cana-Vac power unit rather than replacing the entire system. Before ordering, always compare the motor number, voltage, diameter, mounting configuration, wiring, and discharge style with your original motor to ensure proper compatibility.
Features and Benefits
- Genuine Ametek-Lamb replacement motor
- Compatible with the Cana-Vac LS-690 central vacuum
- Replacement motor part number 119914-45
- Replaces older motor numbers 119956 and 119914-07
- 120-volt operation
- Powerful 2-stage motor design
- 5.7-inch fan diameter
- Bypass motor system
- Tangential air discharge
- Ball bearing construction
- Helps restore suction and central vacuum performance
- Ideal for replacing a worn, noisy, or failed motor
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33505-1 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Plastic |
| Motor Fan Bracket Material | Plastic |
| Motor Insulation Class | A |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
Product Description
Product Specifications
Product Reviews
Read about the LS690 Central Vacuum Motor
The Cana-Vac LS-690 Central Vacuum Motor is a high-quality replacement motor designed to restore powerful suction and dependable performance to compatible Cana-Vac LS-690 central vacuum systems. The Ametek-Lamb 119914-45 is a genuine replacement motor specifically listed for the Cana-Vac LS-690 and provides a reliable solution when the original motor becomes worn, noisy, or fails.
This motor operates on 120 volts and features a 2-stage bypass design with a 5.7-inch fan diameter. Its tangential air discharge configuration is designed for central vacuum applications requiring a powerful and dependable motor.
The 119914-45 motor delivers up to approximately 566 air watts and approximately 140 inches of sealed vacuum, helping restore the suction performance needed for effective whole-home cleaning.
The Ametek-Lamb 119914-45 also replaces older motor references 119956 and 119914-07, making it an excellent replacement option when upgrading from one of these earlier motor versions.
Replacing a worn central vacuum motor can be a cost-effective way to extend the life of your existing Cana-Vac power unit rather than replacing the entire system. Before ordering, always compare the motor number, voltage, diameter, mounting configuration, wiring, and discharge style with your original motor to ensure proper compatibility.
Features and Benefits
- Genuine Ametek-Lamb replacement motor
- Compatible with the Cana-Vac LS-690 central vacuum
- Replacement motor part number 119914-45
- Replaces older motor numbers 119956 and 119914-07
- 120-volt operation
- Powerful 2-stage motor design
- 5.7-inch fan diameter
- Bypass motor system
- Tangential air discharge
- Ball bearing construction
- Helps restore suction and central vacuum performance
- Ideal for replacing a worn, noisy, or failed motor
-
