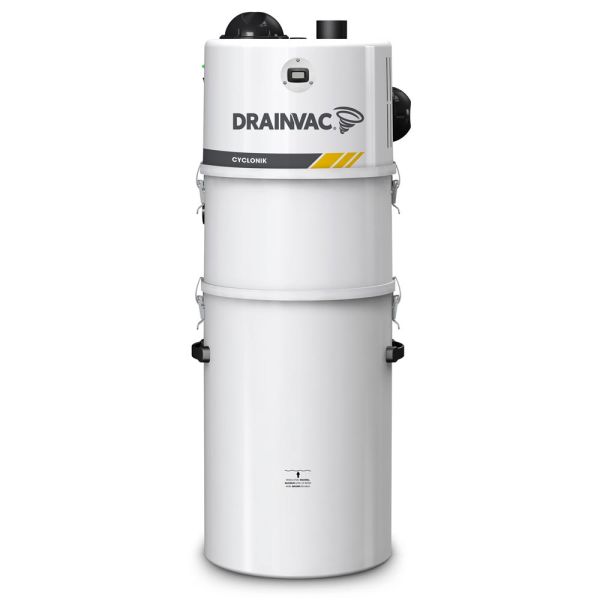

Drainvac DV1R20 Central Vacuum System
$2,876.00
PU:W:0012
- Can Be Used to Pick Up Liquids and Solid Substances
- Ultra-Large-Capacity Canister (12 gal. / 54 L)
- Bagless System
- Cartridge Filter Protects Motor if Fine Dust is Picked Up
- Cyclonic Action Generates Constant and Optimal Suction Power
- Integrated Timer
- Muffler and Outdoor Exhaust Included
The Drainvac DV1R20-27CT is a commercial grade, soundproofed, large capacity (12 gallons), bagless central vacuum with cyclonic action. This unit generates 3.9 HP of suction power and includes a cartridge filter for optimum air filtration and increased motor protection when fine dust is picked up. The DV1R20-27CT does require an outdoor exhaust.
Attention Consumer
Important Maintenance Tips: Drainvac highly recommends changing your bags every 2-3 months to keep your vacuum running properly, don't forget to order your must haves and related items below.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
DrainVac DV1R20-27-CT Central Vacuum System
Drainvacs DV1R20-27-CT is perfect for all commercial applications. The Drainvac DV1R20-27-CT is identical to the DV1R19 and is a powerful dual-motor system producing 710 air-watts (suction power) and 181 water lift. With the DV1R120-27-CT commercial vacuum, its noise ranks in with a moderate 70 decibels, due to the DV1R20 being engineered with an insulated upper motor housing. Manufactured for large commercial applications, the DV1R20-27-CT by Drainvac was designed to be used in facilities with a lot of dust.
The Drainvac DV1R20-27-CT has multiple filtration options available and for ultimate filtration is recommended to be vented outside. Equipped with a large 12-gallon dirt capacity allows for less often disposal of dirt and other debris vacuumed up, compared to the smaller 10-gallon dirt capacity of the DV1R19. Used as a cyclonic central vacuum, this system is designed to be used as a bagless unit. It's powerful, versatile, and reliable offering years of hassle-free maintenance.
Intelligence, Discretion, and Power.
Warning: Never vacuum flammable matters, gaseous or liquid, with your Drainvac system. See the user manual. All these units require an outdoor exhaust vent. Available with float for wet cleaning.
| Square Footage | 10000 |
|---|---|
| Waterlift | 181 |
| CFM | 122 |
| System Type | Filtered Cyclonic |
| Capacity (Gallons) | 12.00 |
| Color | White |
| Product Length (Inches) | 15.00 |
| Visual Interface | None |
| Voltage | 120 |
| Amps | 18.00 |
| Decibels | 70.00 |
| Square Footage | 10000 |
| Wet/Dry Capable? | Yes |
| Motor Name | MOTE-04 |
| Motor Stages | 2 |
| Quantity of Motors? | 2 |
Product Description
Product Specifications
Product Reviews
Read about the DV1R20 Drainvac Central Vacuum Unit
DrainVac DV1R20-27-CT Central Vacuum System
Drainvacs DV1R20-27-CT is perfect for all commercial applications. The Drainvac DV1R20-27-CT is identical to the DV1R19 and is a powerful dual-motor system producing 710 air-watts (suction power) and 181 water lift. With the DV1R120-27-CT commercial vacuum, its noise ranks in with a moderate 70 decibels, due to the DV1R20 being engineered with an insulated upper motor housing. Manufactured for large commercial applications, the DV1R20-27-CT by Drainvac was designed to be used in facilities with a lot of dust.
The Drainvac DV1R20-27-CT has multiple filtration options available and for ultimate filtration is recommended to be vented outside. Equipped with a large 12-gallon dirt capacity allows for less often disposal of dirt and other debris vacuumed up, compared to the smaller 10-gallon dirt capacity of the DV1R19. Used as a cyclonic central vacuum, this system is designed to be used as a bagless unit. It's powerful, versatile, and reliable offering years of hassle-free maintenance.
Intelligence, Discretion, and Power.
Warning: Never vacuum flammable matters, gaseous or liquid, with your Drainvac system. See the user manual. All these units require an outdoor exhaust vent. Available with float for wet cleaning.
-
