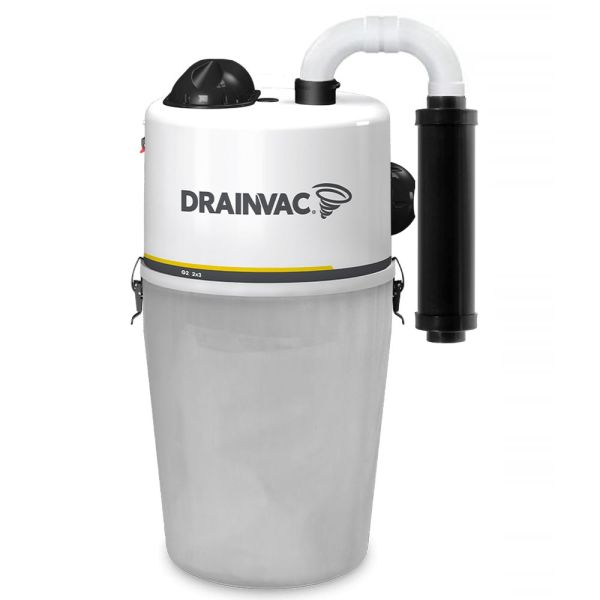

Drainvac G2-2X3-M Central Vacuum System
PU:D:0173
MODEL: Generation 2 - 2x302 AW
(With Muffler & Outside Exhaust Vent)
- 2 x 302 Air Watts, 105 Airflow, 160 Waterlift
- Homes up to 8,500 SqFt
- Dual Whisper-Quiet Motors (only 70 decibels)
- Extra Large 9-Gallon Capacity
- Hybrid System- Can Be Used Bagged or Bagless
- Soundproofed Casing with Superior Impact Resistance
- Muffler and Outside Vent Included
PLEASE NOTE: If you purchased your vacuum before 9/2/2011 use SAC-14 Bags and FILT-07DVI Filter. If you purchased your vacuum after 9/2/2011 use SAC-32 Bags and FILT-33DVI Filter.
The Drainvac G2-2X3-M 9 vacuum systems are extremely reliable. The Drainvac G2-2X3-M is engineered as the central vacuum for the large sized homes up to 8,500 square ft. Powered by dual quality Domel motors, the G2-2X3-M produces an amazing 604 air-watts (suction power) and staggering 160” water lift.
Attention Consumer
Important Maintenance Tips: Drainvac highly recommends the use of a bag to help maintain and extend the life of the filter and motor. Keep a spare filter on hand in the event of odor build-up or when one is being washed. Don't forget to order your "Must Have Items"
DrainVac G2-2X3-M Power Unit
*Unit Requires an Outdoor Exhaust
The Drainvac Generation 2’s G2-2x3-M is engineered as the central vacuum for the large sized homes up to 8,500 square ft. Powered by dual quality Domel motors, the Drainvac G2-2x3-M produces an amazing 604 air-watts (suction power) and staggering 160” water lift. The Drainvac Generation 2 series was manufactured to perform with excellence and optimal design, providing not only power but durability on a standard 110-volt line. The G2-2x3-M is equipped with an antimicrobial and electrostatic filter, biodegradable filtration bag provides maximum filtration. The Activac II cannot be used with this dual motor system.
With an extra large 9-gallon dirt receptacle, the Drainvac G2-2x3-M allows for less often dirt disposal, offering the user hassle-free maintenance and less servicing of the power unit. Soundproof motor insulation also helps to keep the G2-2x3-M down to only 70 decibels.
Features & Specifications
- Dual Motor Unit
- Ultra High Suction Power (2 x 302 AW)
- Soundproofed
- Extra Large Canister (9-Gallon)
- Semi-Transparent Canister Shows when Bag is Full
- Permanent SMS Filter Treated with SilverClear Antibacterial Agent
- 2-Ply Paper Dust Bag Included
- Muffler & Outdoor Exhaust Included
| Waterlift | 160.000 |
|---|---|
| CFM | 105.000 |
| System Type | Hybrid |
| Product Warranty | Lifetime Warranty on Motor & Casing "Best in the Industry" |
| Capacity Size | 9-Gallon |
| Capacity (Gallons) | 9.00 |
| Color | White |
| Weight (lbs) | 31.000000 |
| Diameter (Inches) | 15 |
| Product Width (Inches) | 15.00 |
| Product Height (Inches) | 38.00 |
| Product Length (Inches) | 15.00 |
| Visual Interface | None |
| Filter Type | Caged |
| Filtration | Silver Clear/Hepa |
| Filtration | silver clear/hepa |
| Filter Washable? | Yes |
| Filter Washable? | Yes |
| Voltage | 120 |
| Amps | 13.50 |
| Decibels | 70.00 |
| Utility Valve? | Yes |
| Motor Name | MOTE-22 |
| Motor Stages | 2 |
| Quantity of Motors? | 2 |
-
-7%
DrainVac FILT-33DVI 9-Gallon Filter
Was $85.95
Save $6.00 (7%) through 01/22/2025
Save: 7%
On Sale: $79.95
Save $6.00 through 01/22/2025$79.95
-
-17%
Tornado Power Central Vacuum Maintenance Cloths
Was $29.95
Save $5.00 (17%) through 01/22/2025
Save: 17%
On Sale: $24.95
Save $5.00 through 01/22/2025$24.95
-
-30%
TurboPro Deluxe Handheld Turbo Powerhead
Was $59.95
Save $18.00 (30%) through 01/22/2025
Save: 30%
On Sale: $41.95
Save $18.00 through 01/22/2025$41.95
-
-
-17%
Deluxe Central Vacuum Car & Garage 30-Foot Kit
Was $120.00
Save $20.05 (17%) through 01/22/2025
Save: 17%
On Sale: $99.95
Save $20.05 through 01/22/2025$99.95
-
-
-27%
Central Vacuum 24in Flexible Crevice Tool
Was $25.95
Save $7.00 (27%) through 01/22/2025
Save: 27%
On Sale: $18.95
Save $7.00 through 01/22/2025$18.95
Product Description
Product Specifications
Download Instructions
Product Videos
Read about the Generation 2 G2-2X3-M Central Vacuum Unit
DrainVac G2-2X3-M Power Unit
*Unit Requires an Outdoor Exhaust
The Drainvac Generation 2’s G2-2x3-M is engineered as the central vacuum for the large sized homes up to 8,500 square ft. Powered by dual quality Domel motors, the Drainvac G2-2x3-M produces an amazing 604 air-watts (suction power) and staggering 160” water lift. The Drainvac Generation 2 series was manufactured to perform with excellence and optimal design, providing not only power but durability on a standard 110-volt line. The G2-2x3-M is equipped with an antimicrobial and electrostatic filter, biodegradable filtration bag provides maximum filtration. The Activac II cannot be used with this dual motor system.
With an extra large 9-gallon dirt receptacle, the Drainvac G2-2x3-M allows for less often dirt disposal, offering the user hassle-free maintenance and less servicing of the power unit. Soundproof motor insulation also helps to keep the G2-2x3-M down to only 70 decibels.
Features & Specifications
- Dual Motor Unit
- Ultra High Suction Power (2 x 302 AW)
- Soundproofed
- Extra Large Canister (9-Gallon)
- Semi-Transparent Canister Shows when Bag is Full
- Permanent SMS Filter Treated with SilverClear Antibacterial Agent
- 2-Ply Paper Dust Bag Included
- Muffler & Outdoor Exhaust Included
