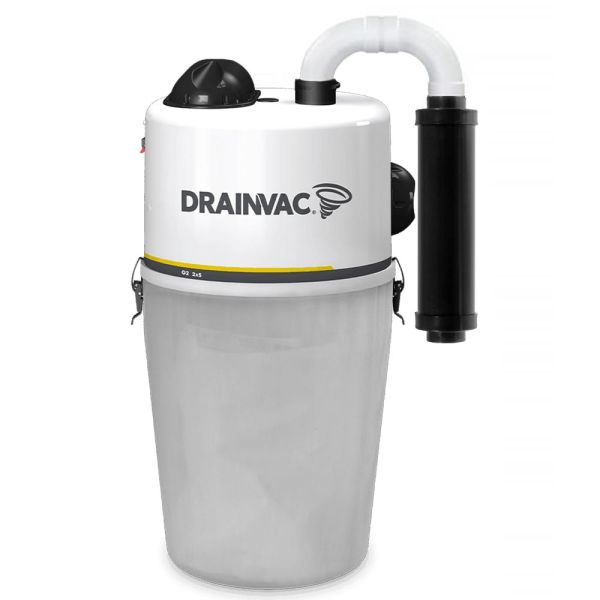

Drainvac G2-2X5-M Central Vacuum System
PU:D:0174
MODEL: Generation 2 - 2x520 AW
(With Muffler & Outside Exhaust Vent)
- 1040 Air Watts, 135 Airflow, 170 Waterlift
- Homes up to 12,000 SqFt
- Dual Whisper-Quiet Motors (only 72 decibels)
- Large 9-Gallon Capacity
- Hybrid System- Can Be Used Bagged or Bagless
- Soundproofed Casing with Superior Impact Resistance
- Muffler and Outside Vent Included
NOTE: 220V-240V Circuit Required / 15 AMps
The Drainvac Generation 2’s G2-2X5-M is engineered as the central vacuum for the extra- large sized homes up to 12,000 square ft. Powered by dual quality Domel motors, the Drainvac G2-2X5-M produces an amazing 1040 air-watts (suction power) and staggering 170” water lift. The Drainvac Generation 2 series was manufactured to perform with excellence and optimal design.
Attention Consumer
Important Maintenance Tips: Drainvac highly recommends the use of a bag to help maintain and extend the life of the filter and motor. Keep a spare filter on hand in the event of odor build-up or when one is being washed. Don't forget to order your "Must Have Items"
Drainvac G2-2x5-M Power Unit
*Unit Requires an Outdoor Exhaust
The Drainvac Generation 2’s G2-2X5-M is engineered as the central vacuum for the extra- large sized homes up to 12,000 square ft. Powered by dual quality Domel motors, G2-2X5-M the Drainvac produces an amazing 1040 air-watts (suction power) and staggering 170” water lift. The Drainvac Generation 2 series was manufactured to perform with excellence and optimal design, providing not only power but durability being the only of the Generation 2 vacuums that runs on a 240-volt line. Drainvac Platinum Award for sales and service. The G2-2X5-M is equipped with an antimicrobial and electrostatic filter, biodegradable filtration bag provides maximum filtration. The Activac III cannot be used with this dual motor system.
Features & Specifications
- Dual Motor Unit
- Ultra High Suction Power (2x302 AW)
- Soundproof Casing
- Extra Large Canister
- Semi-Transparent Canister Shows When Bag is Full
- Permanent SMS Filter Treated With SilverClear Antibacterial Agent
- 2-Ply Paper Dust Bag Included
- Muffler & Outdoor Exhaust Included
| Square Footage | 12000 |
|---|---|
| Waterlift | 170.000 |
| Max Air Watts | 2.000 |
| CFM | 135.000 |
| System Type | Hybrid |
| Product Warranty | Lifetime Warranty on Motor & Casing "Best in the Industry" |
| Capacity (Gallons) | 9.00 |
| Color | White |
| Weight (lbs) | 31.000000 |
| Product Width (Inches) | 15.00 |
| Product Height (Inches) | 38.00 |
| Product Length (Inches) | 15.00 |
| Visual Interface | None |
| Filter Type | Caged |
| Filtration | Silver Clear/Hepa |
| Filtration | silver clear/hepa |
| Filter Washable? | Yes |
| Filter Washable? | Yes |
| Voltage | 240 |
| Amps | 13.50 |
| Decibels | 72.00 |
| Utility Valve? | Yes |
| Motor Name | MOTE-32 |
| Motor Stages | 2 |
| Quantity of Motors? | 2 |
Product Description
Product Specifications
Download Instructions
Product Videos
Read about the Generation 2 G2-2X5-M Drainvac Central Vacuum Unit
Drainvac G2-2x5-M Power Unit
*Unit Requires an Outdoor Exhaust
The Drainvac Generation 2’s G2-2X5-M is engineered as the central vacuum for the extra- large sized homes up to 12,000 square ft. Powered by dual quality Domel motors, G2-2X5-M the Drainvac produces an amazing 1040 air-watts (suction power) and staggering 170” water lift. The Drainvac Generation 2 series was manufactured to perform with excellence and optimal design, providing not only power but durability being the only of the Generation 2 vacuums that runs on a 240-volt line. Drainvac Platinum Award for sales and service. The G2-2X5-M is equipped with an antimicrobial and electrostatic filter, biodegradable filtration bag provides maximum filtration. The Activac III cannot be used with this dual motor system.
Features & Specifications
- Dual Motor Unit
- Ultra High Suction Power (2x302 AW)
- Soundproof Casing
- Extra Large Canister
- Semi-Transparent Canister Shows When Bag is Full
- Permanent SMS Filter Treated With SilverClear Antibacterial Agent
- 2-Ply Paper Dust Bag Included
- Muffler & Outdoor Exhaust Included
-
