Electrolux 1561 Motor
$248.00
MT:0004-Electrolux 1561
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

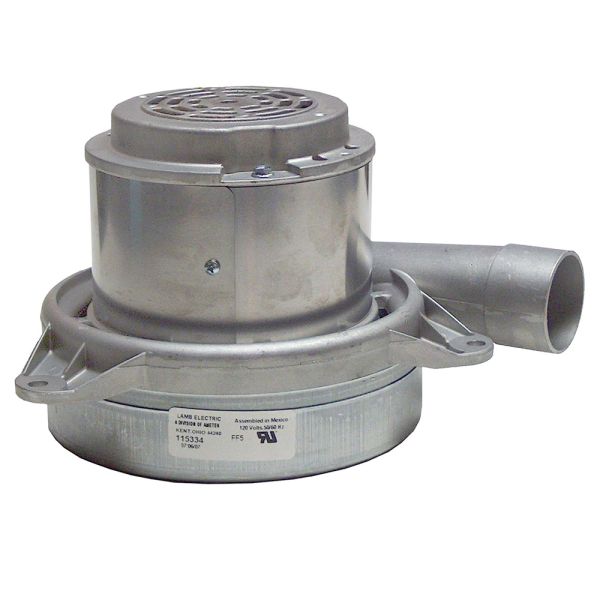

This genuine Ametek-Lamb 115334 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 115334 is the Replacement Motor for the Following Central Vacuum Models:
| ACV 110P | Beam 153 | Budd 0704 | NuTone 350 |
| ACV 110 | Beam 154 | Cana-Vac 511 | Pullman Holt 105 |
| ACV 111 | Beam 183 | DynaVac 700R | Singer S200 |
| ACV Class Act | Beam 190 | DynaVac D100 | Vacuflo 26 |
| AirVac 110 | Beam 253 | DynaVac D150 | Vacuflo 99 |
| AirVac AV410 | Beam 259 | DustCare BE1 | Vacumaid P125 |
| Astrovac MK-X | Beam 284 | DustCare BE2 | Vacumaid 225 |
| Astrovac P-120 | Beam 294 | Electrolux 1561 | Vacumaid 325 |
| AstroVac P-125 | Beam 297 | Fasco 851 | Vent-A-Vac CV1000 |
| AstroVac MK3 | Beam 297SP | Filtex SB200L | WalVac 236 |
| AstroVac MK10 | Beam 297S | Filtex SB300L | WalVac 836 |
| Beam 75 | Beam 297C | Hoover S5503 | Whirlpool FB770XSO |
| Beam 80 | Broan CV-16 | Hayden CV36 | Whirlpool FB8800XSO |
| Beam 95 | Broan V16C | Kenmore | Zenex 275 |
* Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
** In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy. If you are interested in Ametek-Lamb 115334 Central Vacuum Motor - Lamb Ametek Central Vacuum Motors, give our team a call today!
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33415-4 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 7.2 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Thermal Protection | None |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | None |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 115334 Ametek-Lamb Motor
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 115334 is the Replacement Motor for the Following Central Vacuum Models:
| ACV 110P | Beam 153 | Budd 0704 | NuTone 350 |
| ACV 110 | Beam 154 | Cana-Vac 511 | Pullman Holt 105 |
| ACV 111 | Beam 183 | DynaVac 700R | Singer S200 |
| ACV Class Act | Beam 190 | DynaVac D100 | Vacuflo 26 |
| AirVac 110 | Beam 253 | DynaVac D150 | Vacuflo 99 |
| AirVac AV410 | Beam 259 | DustCare BE1 | Vacumaid P125 |
| Astrovac MK-X | Beam 284 | DustCare BE2 | Vacumaid 225 |
| Astrovac P-120 | Beam 294 | Electrolux 1561 | Vacumaid 325 |
| AstroVac P-125 | Beam 297 | Fasco 851 | Vent-A-Vac CV1000 |
| AstroVac MK3 | Beam 297SP | Filtex SB200L | WalVac 236 |
| AstroVac MK10 | Beam 297S | Filtex SB300L | WalVac 836 |
| Beam 75 | Beam 297C | Hoover S5503 | Whirlpool FB770XSO |
| Beam 80 | Broan CV-16 | Hayden CV36 | Whirlpool FB8800XSO |
| Beam 95 | Broan V16C | Kenmore | Zenex 275 |
* Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
** In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy. If you are interested in Ametek-Lamb 115334 Central Vacuum Motor - Lamb Ametek Central Vacuum Motors, give our team a call today!
-
