Electrolux PU3450A Motor
$195.00
MT:0047-Electrolux PU3450A
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable
The Electrolux PU3450 Central Vacuum Motor is a replacement motor designed to restore the suction and cleaning performance of compatible Electrolux central vacuum systems. The PU3450 is associated with several motor configurations, including the Ametek-Lamb 119992-00 / Electrolux 140431 and the Ametek-Lamb 119631-00, depending on the unit version. Always verify the motor number and specifications on your existing motor before ordering
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS

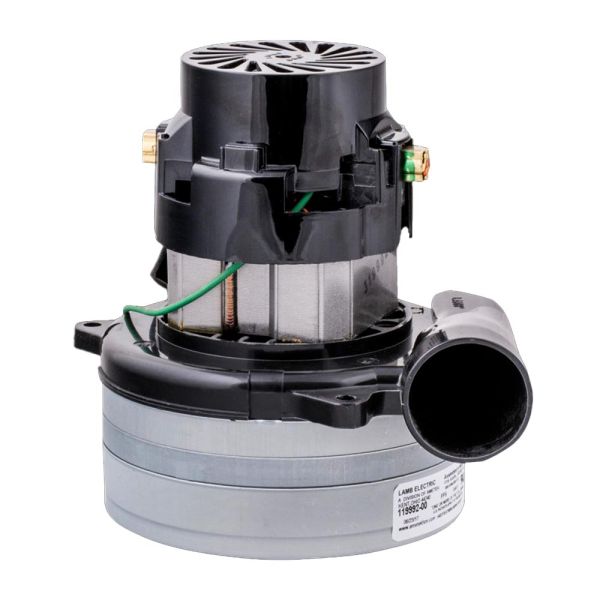

One commonly used motor for the PU3450 is the Ametek-Lamb 119992-00, also identified by Electrolux part number 140431. This motor features a 5.7-inch diameter, 2-stage design, 115–120 volt operation, tangential bypass airflow, and ball-bearing construction. The 119992-00 is rated at approximately 126 CFM, 141 inches of waterlift, and 584 Air Watts.
Another motor configuration associated with the Electrolux PU3450 is the Ametek-Lamb 119631-00. This motor is also a 5.7-inch, 2-stage, 120-volt tangential bypass motor and is rated at approximately 114.5 CFM, 128 inches of waterlift, and 515 Air Watts.
Because different versions of the PU3450 may use different motor configurations, check the part number on your original motor before purchasing. Compare the voltage, motor diameter, mounting configuration, exhaust style, and motor part number to ensure the replacement is a proper match.
When installing a replacement motor, inspect the motor gasket, electrical connections, mounting hardware, and exhaust components. A good motor gasket helps maintain an airtight seal and keeps the central vacuum operating at its intended performance level.
Key Features
- Replacement motor for compatible Electrolux PU3450 central vacuum systems
- Common replacement motor: Ametek-Lamb 119992-00
- Electrolux part number 140431
- Alternative motor configuration: Ametek-Lamb 119631-00
- 115–120 volt operation depending on motor configuration
- 2-stage motor design
- 5.7-inch motor diameter
- Tangential bypass airflow
- Ball-bearing construction
- Designed to restore suction and cleaning performance
- Suitable for repairing and extending the life of your central vacuum
- Always verify the original motor number before ordering
Important Compatibility Note
The Electrolux PU3450 can use different motor configurations depending on the production version. Do not rely on the vacuum model alone when ordering a replacement motor. Before purchasing, compare the part number, voltage, motor diameter, mounting style, and exhaust configuration of your existing motor.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 115 |
| Carbon Brush | 33505-1 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Thermoset commutator |
| Motor Fan Bracket Material | Thermoset Plastic |
| Motor Insulation Class | A |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Product Videos
Product Reviews
Read about the 119992 Ametek Lamb Motor
One commonly used motor for the PU3450 is the Ametek-Lamb 119992-00, also identified by Electrolux part number 140431. This motor features a 5.7-inch diameter, 2-stage design, 115–120 volt operation, tangential bypass airflow, and ball-bearing construction. The 119992-00 is rated at approximately 126 CFM, 141 inches of waterlift, and 584 Air Watts.
Another motor configuration associated with the Electrolux PU3450 is the Ametek-Lamb 119631-00. This motor is also a 5.7-inch, 2-stage, 120-volt tangential bypass motor and is rated at approximately 114.5 CFM, 128 inches of waterlift, and 515 Air Watts.
Because different versions of the PU3450 may use different motor configurations, check the part number on your original motor before purchasing. Compare the voltage, motor diameter, mounting configuration, exhaust style, and motor part number to ensure the replacement is a proper match.
When installing a replacement motor, inspect the motor gasket, electrical connections, mounting hardware, and exhaust components. A good motor gasket helps maintain an airtight seal and keeps the central vacuum operating at its intended performance level.
Key Features
- Replacement motor for compatible Electrolux PU3450 central vacuum systems
- Common replacement motor: Ametek-Lamb 119992-00
- Electrolux part number 140431
- Alternative motor configuration: Ametek-Lamb 119631-00
- 115–120 volt operation depending on motor configuration
- 2-stage motor design
- 5.7-inch motor diameter
- Tangential bypass airflow
- Ball-bearing construction
- Designed to restore suction and cleaning performance
- Suitable for repairing and extending the life of your central vacuum
- Always verify the original motor number before ordering
Important Compatibility Note
The Electrolux PU3450 can use different motor configurations depending on the production version. Do not rely on the vacuum model alone when ordering a replacement motor. Before purchasing, compare the part number, voltage, motor diameter, mounting style, and exhaust configuration of your existing motor.
-
