Element 1700 Motor

Compatible with the following Brands & Models
(hover over each)
- RhinoVacRhinoVac 657R-LS
- MD MD Silent Master S44
- Royal Royal CS820
- Vacuflo Vacuflo FC650
- Dirt Devil Dirt Devil 990, Dirt Devil 2600
- Element Element 1700
Double-check the Motor Number Before you Purchase.
Please Call
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
As Simple As 1-2-3

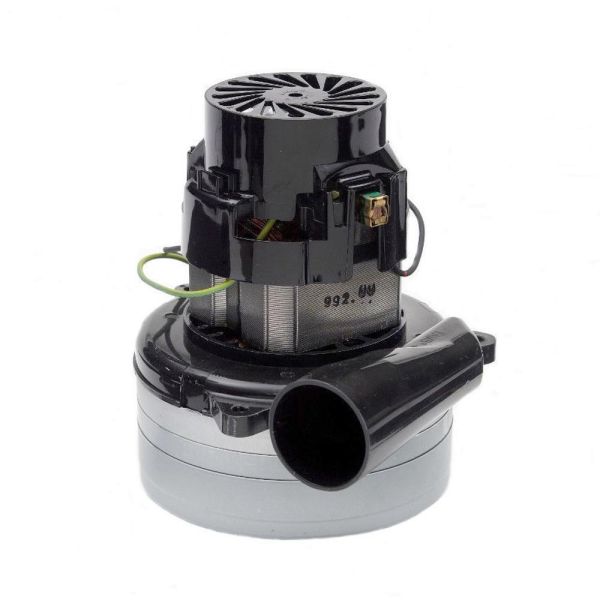

Please Note: The 119914-45 Ametek-Lamb Motor Replaces the #119956 and #119914-07 Ametek-Lamb Motors. If you have any further questions please call 1.800.322.2965.
This genuine Ametek-Lamb 119914-45 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 119914-45 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
Ametek-Lamb Motor 119914-45 / 119956 / 119914-07 Fits:
- RhinoVac 657R-LS
- Silent Master S44
- Royal CS820
- Vacuflo FC650
- Dirt Devil 990
- Dirt Devil 2600
- Element 1700
Replacement Part Type | Motors |
---|---|
Voltage | 120 |
Carbon Brush | 33505-1 |
Motor Stages | 2 |
Motor Speeds | 1 |
Motor Type | Series Universal |
Motor Frequency | 50/60Hz |
Motor Fan Diameter | 5.700 |
Fan System Style | Bypass |
Air Discharge | Tangential |
Motor Low Temp | 32.000 |
Motor High Temp | 104.000 |
Motor Bearing | Ball |
Motor Comm Bracket Material | Plastic |
Motor Fan Bracket Material | Plastic |
Motor Insulation Class | A |
Motor Fan Shell Coat | none |
Motor Duty Cycle | Intermittent |
Motor Electrical Connection | Lead Wires |
Weight (lbs) | 9.000000 |
-
