Eureka CV1601K Motor
$136.00
MT:0022-Eureka CV1601K
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

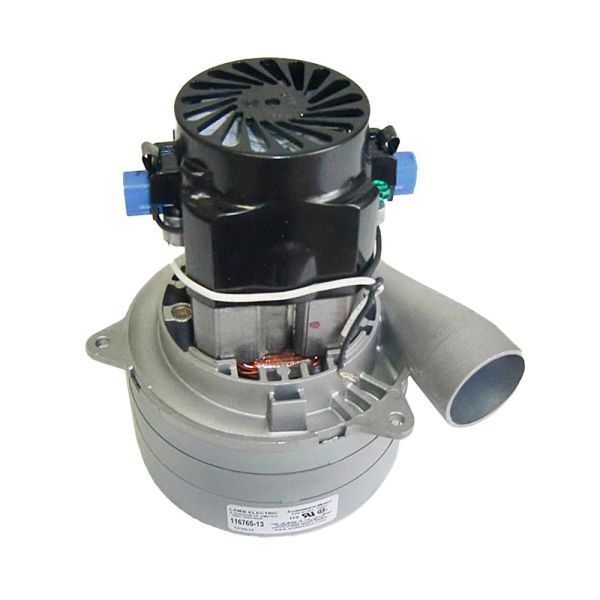

This genuine Ametek-Lamb 116765 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 116765 motor and would rather upgrade your system please call us at 1-800-322-2965.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
This Ametek-Lamb 116765-13 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 116765-13 and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 116765 Replacement Motor for the Following Central Vacuum Models
| Aerus E117A | Beam 199C | Eureka CV317BF |
| Aerus E177A | Beam 225A | Eureka CV137C |
| Aerus ECV1590A | Beam 275A | Eureka CV137D |
| Aerus ECV1690A | Beam 261 | Eureka CV137F |
| ACV Act 4 | Beam 299A | Eureka CV1601F |
| Afuera Electrolux | Beam 371 | Eureka CV920A |
| AirVac AV6000 | Beam 377 | Eureka CV1601-B |
| AirVac AV480 | Beam 2100 | Eureka CV1601BF |
| AirVac AV3500 | Beam 2150 | Eureka CV1601D |
| AirVac FX3000 | Beam 2220 | Eureka CV1601G |
| AirVac ZX6000 | Beam PE371 | Eureka CV160H |
| AstroVac SR-40 | Centralux 1580 | Eureka CV1601K |
| AstroVac SR-41 | Centralux 1590 | Eureka CV1601L |
| AstroVac SR-40V | DustCare DCC6 | Eureka CV1801A |
| AstroVac SR-43 With Flat Bottom | Easy Flo 1400 | Eureka CV1801B |
| AstroVac SR-82 | Easy Flo EF1400 | Eureka CV1801D |
| AstroVac SR-88 | Easy Flo 1500 | Eureka CV1801G |
| Aqua Air 130 | Easy Flo EF1500 | Eureka CV1801H |
| Aqua Air 230 | Easy Flo 2100 | Eureka CV3231A |
| Beam 90 | Easy Flo EF2100 | Filtex FX800 |
| Beam 197C | Easy Flo 2200 | Hayden 6000 |
| Beam 197S | Easy Flo EF2200 | Hoover S5626 |
| M & S AV3500 | Electrolux 1580 | Frigidaire FGCV315SQ |
| M & S FX3000 | Electrolux 1590 | RhinoVac 399R-L |
| M & S ZX6000 | Eureka AAA137 | RhinoVac 399R-Booster |
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33423-1 |
| Motor Watts | 1500 |
| Motor Stages | 3 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 116765-13 Ametek Motor
This Ametek-Lamb 116765-13 is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 116765-13 and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 116765 Replacement Motor for the Following Central Vacuum Models
| Aerus E117A | Beam 199C | Eureka CV317BF |
| Aerus E177A | Beam 225A | Eureka CV137C |
| Aerus ECV1590A | Beam 275A | Eureka CV137D |
| Aerus ECV1690A | Beam 261 | Eureka CV137F |
| ACV Act 4 | Beam 299A | Eureka CV1601F |
| Afuera Electrolux | Beam 371 | Eureka CV920A |
| AirVac AV6000 | Beam 377 | Eureka CV1601-B |
| AirVac AV480 | Beam 2100 | Eureka CV1601BF |
| AirVac AV3500 | Beam 2150 | Eureka CV1601D |
| AirVac FX3000 | Beam 2220 | Eureka CV1601G |
| AirVac ZX6000 | Beam PE371 | Eureka CV160H |
| AstroVac SR-40 | Centralux 1580 | Eureka CV1601K |
| AstroVac SR-41 | Centralux 1590 | Eureka CV1601L |
| AstroVac SR-40V | DustCare DCC6 | Eureka CV1801A |
| AstroVac SR-43 With Flat Bottom | Easy Flo 1400 | Eureka CV1801B |
| AstroVac SR-82 | Easy Flo EF1400 | Eureka CV1801D |
| AstroVac SR-88 | Easy Flo 1500 | Eureka CV1801G |
| Aqua Air 130 | Easy Flo EF1500 | Eureka CV1801H |
| Aqua Air 230 | Easy Flo 2100 | Eureka CV3231A |
| Beam 90 | Easy Flo EF2100 | Filtex FX800 |
| Beam 197C | Easy Flo 2200 | Hayden 6000 |
| Beam 197S | Easy Flo EF2200 | Hoover S5626 |
| M & S AV3500 | Electrolux 1580 | Frigidaire FGCV315SQ |
| M & S FX3000 | Electrolux 1590 | RhinoVac 399R-L |
| M & S ZX6000 | Eureka AAA137 | RhinoVac 399R-Booster |
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
-
