Eureka CV3291A Motor
$131.00
MT:0039-Eureka CV3291A
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

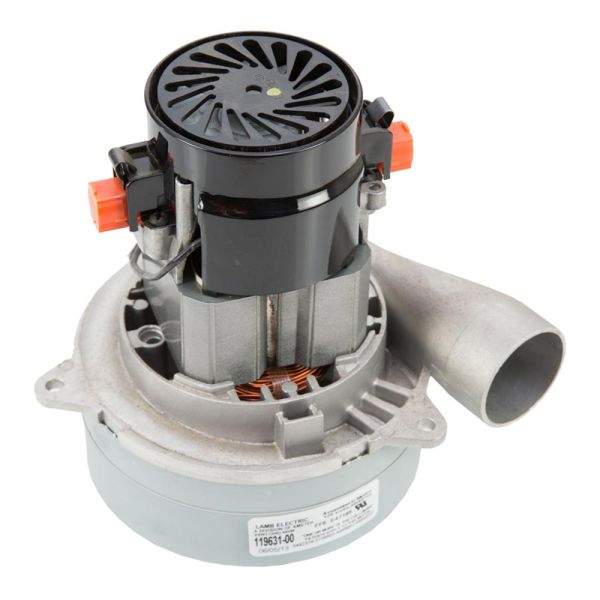

This genuine Ametek-Lamb 119631 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 119631 motor and would rather upgrade your system please call us at 1.800.322.2965.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
This genuine Ametek-Lamb 119631 is one of the most common central vacuum motor in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 119631 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 119631 Replacement Motor for the Following Central Vacuum Models
| Beam 750 | Eureka CV3291B |
| Beam 775 | Eureka CV3291D/F |
| Beam 775A | Eureka CV137G |
| Beam 2775 | Eureka CV137H |
| Centralux E130A | Eureka CV1601M |
| Centralux E130F | Eureka FGCV520SQ |
| Centralux E130G | Frigidaire FCV520S |
| Centralux 1590 Tapered Bottom Motor |
Frigidaire FGCV620SQ |
| Centralux CV3291C | Honeywell H602 |
| Eureka CV1801K | Honeywell H702 |
| Eureka CV1801L | NuTone VX475 |
| Eureka CV1801M | NuTone VX475C |
| Eureka CV3291A | NuTone VX550 |
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33423-22 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 119631 Ametek Lamb Motor
This genuine Ametek-Lamb 119631 is one of the most common central vacuum motor in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 119631 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 119631 Replacement Motor for the Following Central Vacuum Models
| Beam 750 | Eureka CV3291B |
| Beam 775 | Eureka CV3291D/F |
| Beam 775A | Eureka CV137G |
| Beam 2775 | Eureka CV137H |
| Centralux E130A | Eureka CV1601M |
| Centralux E130F | Eureka FGCV520SQ |
| Centralux E130G | Frigidaire FCV520S |
| Centralux 1590 Tapered Bottom Motor |
Frigidaire FGCV620SQ |
| Centralux CV3291C | Honeywell H602 |
| Eureka CV1801K | Honeywell H702 |
| Eureka CV1801L | NuTone VX475 |
| Eureka CV1801M | NuTone VX475C |
| Eureka CV3291A | NuTone VX550 |
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
-
