Frigidaire FGCV319SQ Motor
Was $278.00
Save $13.00 (5%) through 12/19/2025
Save: 5%
On Sale:
$265.00
Save
$13.00
through
12/19/2025
$265.00
Was $278.00
Save $13.00 (5%) through 12/20/2025
Save: 5%
On Sale:
$265.00
Save
$13.00
through
12/20/2025
$265.00
In stock
SKU
MT:0029-Frigidaire FGCV319SQ
MT:0029-Frigidaire FGCV319SQ
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

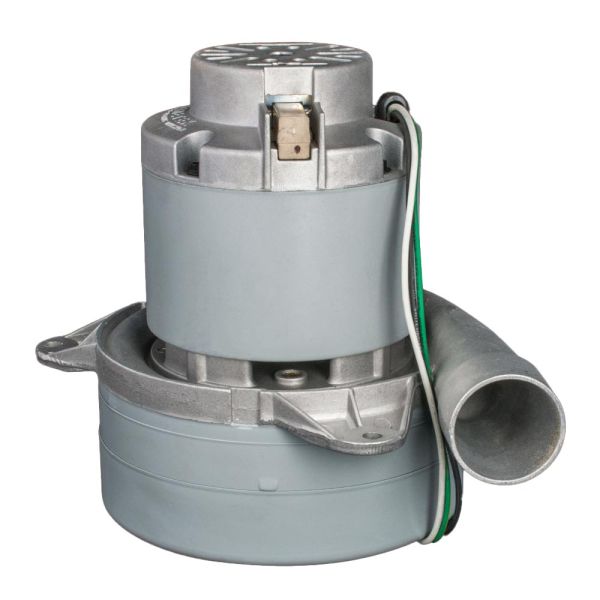

This genuine Ametek-Lamb 117500-12 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 117500-12 motor and would rather upgrade your system please call us at 1-800-322-2965.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
This Ametek-Lamb 117500-12 motor is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 117500-12 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 117500-12 Replacement Motor for the Following Central Vacuum Models:
| Airking AKCVQZ99 | Eureka 2301 |
| AirVac AV700 | Eureka CV1851A |
| AirVac AV4500 | Eureka CV2301A |
| AirVac AV5500 | Eureka CV2301B |
| AirVac ZX7000 | Eureka CV2301BF |
| Aqua Air 150 | Eureka CV2301C |
| Aqua Air 250 | Eureka CV2301D |
| Beam 397 | Eureka CV3331B |
| Beam 397B | Hayden SV90 |
| Beam 397C | Hoover 5640 |
| Beam 875B | Dust Care DCC4 |
| Beam 2250 | Hayden 9000 |
| Beam 2250F | NuTone CV556 |
| Beam 397A | WalVac 465 |
| Beam 2250 | Frigidaire FGCV319SQ |
| Beam 2250A | M & S AV4500 |
| Beam 2250B | M & S AV5500 |
| Beam 2250C | M & S FX4000 |
| Easy Flo EF1700 | M & S FX7000 |
| Easy Flo 1700 | M & S FX8000 |
| Easy Flo EF1750 | M & S ZX7000 |
| Easy Flo 1750 |
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 833450-57 |
| Motor Stages | 3 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 7.200 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 117500-12 Ametek Lamb Motor
This Ametek-Lamb 117500-12 motor is one of the most common central vacuum motors in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 117500-12 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 117500-12 Replacement Motor for the Following Central Vacuum Models:
| Airking AKCVQZ99 | Eureka 2301 |
| AirVac AV700 | Eureka CV1851A |
| AirVac AV4500 | Eureka CV2301A |
| AirVac AV5500 | Eureka CV2301B |
| AirVac ZX7000 | Eureka CV2301BF |
| Aqua Air 150 | Eureka CV2301C |
| Aqua Air 250 | Eureka CV2301D |
| Beam 397 | Eureka CV3331B |
| Beam 397B | Hayden SV90 |
| Beam 397C | Hoover 5640 |
| Beam 875B | Dust Care DCC4 |
| Beam 2250 | Hayden 9000 |
| Beam 2250F | NuTone CV556 |
| Beam 397A | WalVac 465 |
| Beam 2250 | Frigidaire FGCV319SQ |
| Beam 2250A | M & S AV4500 |
| Beam 2250B | M & S AV5500 |
| Beam 2250C | M & S FX4000 |
| Easy Flo EF1700 | M & S FX7000 |
| Easy Flo 1700 | M & S FX8000 |
| Easy Flo EF1750 | M & S ZX7000 |
| Easy Flo 1750 |
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
-
