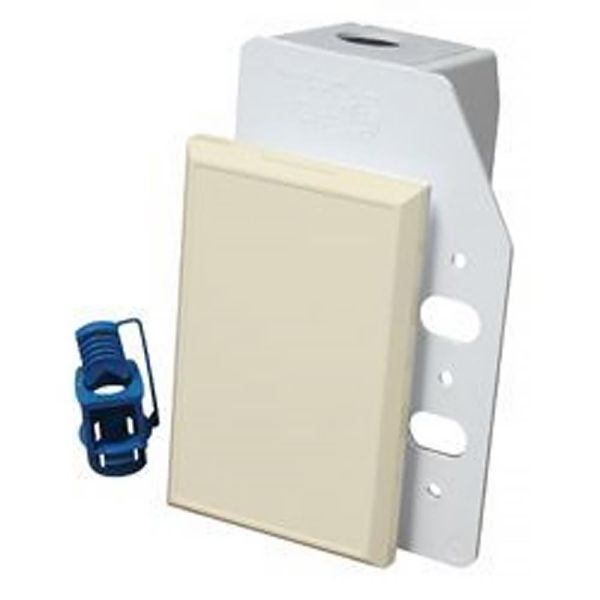

Hayden SuperValve Full Door Wall Inlet Valve
As low as
$24.95
CON:WI:0014

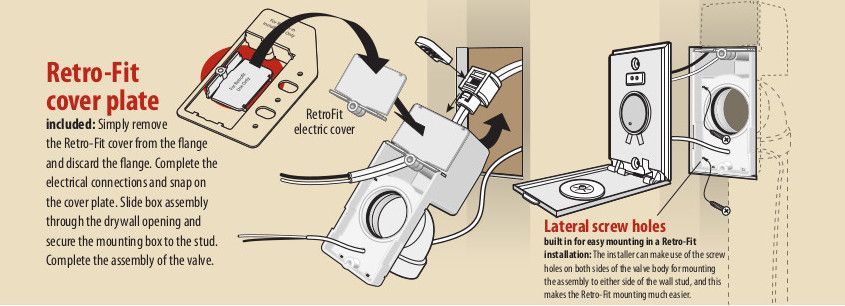

The newly designed Hayden SuperValve Full Door Inlet includes a reversible flange. Unlike the classic flanges, the new flanges are completely separate from the body, thus can be placed either on the left or the right of the stud depending on the installation needs. These flanges are lower and larger for a stronger installation. The flange now can be removed for easy access to the wiring area, making the wiring much simpler and faster.
- Auto-On Inlet Yes
- Connection Type Universal Electric
- Connection Type Direct Connection
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
Hayden SuperValve Full Door Wall Inlet w/ Reversible Flange (Direct Connect)
To be used with a direct connect central vacuum hose.
This Hayden Full Door Inlet includes a newly designed flange. The new flange is completely separate from the inlet valve itself and can be installed on the left or the right of the stud. Also the new flanges are larger and lower for stronger installation. The flange now can be removed for easy access to the wiring area, making the wiring much simpler and faster. With tags on the flange, it easily fits into the holes on the lower part of the valve and lock firmly into place with thumb tabs. Hayden SuperValve inlets have eliminated the need for extra plugs or extension cords to drive the power nozzle. With these inlets the power nozzle will turn on right away when the hose is inserted into the inlet. Hayden SuperValve inlets are also designed with a wiring box that allows a 90° elbow to rotate at a full 180°. Old traditional wiring boxes would only allow elbows to rotate with a limited range. The new SuperValves are much flatter on the bottom which accommodates the 180° rotating 90° elbow.

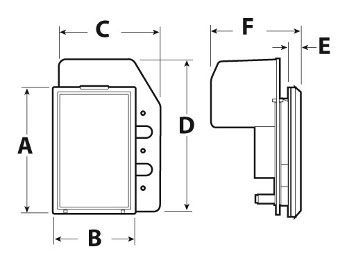

Hayden SuperValve Full Door Inlet Dimensions in Inches: A: 4.9" , B: 3.17" , C: 3.97" , D: 6.09" , E: 0.49" , F: 3.49"
| Auto-On Inlet | Yes |
|---|---|
| Connection Type | Universal Electric |
| Connection Type | Direct Connection |
| Door Style | Full Door |
| Weight (lbs) | 1.000000 |
Product Description
Product Specifications
Download Instructions
Product Reviews
Read about the Full Door SuperValve Hayden Wall Inlet
Hayden SuperValve Full Door Wall Inlet w/ Reversible Flange (Direct Connect)
To be used with a direct connect central vacuum hose.
This Hayden Full Door Inlet includes a newly designed flange. The new flange is completely separate from the inlet valve itself and can be installed on the left or the right of the stud. Also the new flanges are larger and lower for stronger installation. The flange now can be removed for easy access to the wiring area, making the wiring much simpler and faster. With tags on the flange, it easily fits into the holes on the lower part of the valve and lock firmly into place with thumb tabs. Hayden SuperValve inlets have eliminated the need for extra plugs or extension cords to drive the power nozzle. With these inlets the power nozzle will turn on right away when the hose is inserted into the inlet. Hayden SuperValve inlets are also designed with a wiring box that allows a 90° elbow to rotate at a full 180°. Old traditional wiring boxes would only allow elbows to rotate with a limited range. The new SuperValves are much flatter on the bottom which accommodates the 180° rotating 90° elbow.
Hayden SuperValve Full Door Inlet Dimensions in Inches: A: 4.9" , B: 3.17" , C: 3.97" , D: 6.09" , E: 0.49" , F: 3.49"
-
