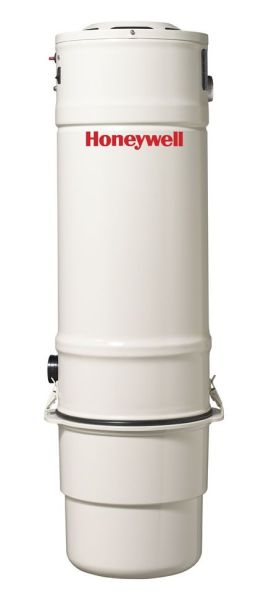

Honeywell 4B-H503 Central Vacuum System
PU:D:0035
Honeywell Has Been Discontinued. Looking For An Alternative? Click Here
- 540 Air Watts, 122 CFM, 135 Waterlift, 120 Volts
- Homes up to 3,500 Sq Ft
- Bagless System
- Permanent Self-Cleaning Filter
- No Filter to Wash or Replace
- Plastic Dirt Receptacle with Window
- Mounting Bracket Included
Honeywell’s 4B-H503 is suitable for a home up to 3,500 square ft. With a 135” water lift, this central vacuum offers 540 air-watts (suction power). Much like the 4B-H403, the 4B-H503 provides maximum suction for a truly deep clean for the small-medium sized home.
Attention Consumer
Important Maintenance Tips: NuTone highly recommends changing your filter every 2 to 3 years. Don't forget to order you Tornando maintenence cloths below to keep your vacuum performing properly.
Honeywell 4B-H503 Central Vacuum
The Honeywell 4B-H503 is one of the best in central vacuum cleaning systems. Honeywell’s 4B-H503 is suitable for a home up to 3,500 square ft. With 135” water lift, this central vacuum offers 540 air-watts (suction power). Much like the 4B-H403, the 4B-H503 provides maximum suction for a truly deep clean for the small-medium sized home. The 4B-H503 is equipped with a premium Ametek motor and is constructed out of durable material providing years of longevity and performance. The 4B-H503 is covered under a 5-year warranty offering a piece of mind and hassle-free maintenance.
No venting is required, the 4B-H503 has a permanent self-cleaning filter, giving the consumer no filter to wash or replace for the lifetime of the machine. Honeywell’s 4B-H503 provides adequate dirt disposal with its 4-gallon dirt receptacle and debris view window. The 4B-H503 is a closed system, designed to remove everyday pollutants like dirt, dust, mites and other allergies laden debris from the living space. The 4B-H503 is a great choice for a central vacuum system.
Honeywell 4B-H503 Power Unit
Honeywell central vacuum systems are among the most popular in the world. With a permanent Teflon Hepa filtration, the Honeywell central vacuum offers the best in indoor air quality. We carry all Honeywell central vacuum models as well as a wide variety of Honeywell central vacuum accessories including Honeywell hoses, carpet nozzles, and tools.
Features:
Heavy-duty steel body- Permanent self-cleaning filter
- No filter to wash or replace
- No venting required
- Plastic dirt receptacle with window
- Quiet models
- Either side intake option models
- Mounting bracket included for easy and secure wall mounting
Specs:
- Model # 4B-H503
- Square Footage (Covers): Up to 3,500 sq.ft.
- Max Airwatts Suction Power: 540
- Airflow (cfm) | Waterlift: 122 | 135
- Max Amps: 14.3
- Warranty: 5 Year
- Diameter: 11 1/4"
- Height: 41 3/4"
- Dirt Capacity: 4 Gallons
- Volts: 120v
| Square Footage | 3500 |
|---|---|
| Waterlift | 135.000 |
| Max Air Watts | 540.000 |
| CFM | 122.000 |
| System Type | Bagless |
| Product Warranty | 5 Year Limited Lifetime |
| Capacity (Gallons) | 4 |
| Color | White |
| Product Width (Inches) | 11.25 |
| Product Height (Inches) | 41.75 |
| Product Length (Inches) | 11.25 |
| Visual Interface | None |
| Filter Type | Inverted |
| Filtration | HEPA Self Cleaning Filter |
| Filtration | hepa self cleaning filter |
| Voltage | 120 |
| Amps | 14.30 |
| Decibels | 67.00 |
| Square Footage | 3500 |
| Utility Valve? | Yes |
| Motor Name | N/A |
| Motor Stages | 2 |
Product Description
Product Specifications
Read about the 4B-H503 Honeywell Central Vacuum Unit
Honeywell 4B-H503 Central Vacuum
The Honeywell 4B-H503 is one of the best in central vacuum cleaning systems. Honeywell’s 4B-H503 is suitable for a home up to 3,500 square ft. With 135” water lift, this central vacuum offers 540 air-watts (suction power). Much like the 4B-H403, the 4B-H503 provides maximum suction for a truly deep clean for the small-medium sized home. The 4B-H503 is equipped with a premium Ametek motor and is constructed out of durable material providing years of longevity and performance. The 4B-H503 is covered under a 5-year warranty offering a piece of mind and hassle-free maintenance.
No venting is required, the 4B-H503 has a permanent self-cleaning filter, giving the consumer no filter to wash or replace for the lifetime of the machine. Honeywell’s 4B-H503 provides adequate dirt disposal with its 4-gallon dirt receptacle and debris view window. The 4B-H503 is a closed system, designed to remove everyday pollutants like dirt, dust, mites and other allergies laden debris from the living space. The 4B-H503 is a great choice for a central vacuum system.
Honeywell 4B-H503 Power Unit
Honeywell central vacuum systems are among the most popular in the world. With a permanent Teflon Hepa filtration, the Honeywell central vacuum offers the best in indoor air quality. We carry all Honeywell central vacuum models as well as a wide variety of Honeywell central vacuum accessories including Honeywell hoses, carpet nozzles, and tools.
Features:
- Heavy-duty steel body
- Permanent self-cleaning filter
- No filter to wash or replace
- No venting required
- Plastic dirt receptacle with window
- Quiet models
- Either side intake option models
- Mounting bracket included for easy and secure wall mounting
Specs:
- Model # 4B-H503
- Square Footage (Covers): Up to 3,500 sq.ft.
- Max Airwatts Suction Power: 540
- Airflow (cfm) | Waterlift: 122 | 135
- Max Amps: 14.3
- Warranty: 5 Year
- Diameter: 11 1/4"
- Height: 41 3/4"
- Dirt Capacity: 4 Gallons
- Volts: 120v
-
