NuTone CV353 Motor
$350.00
MT:0077-NuTone CV353
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

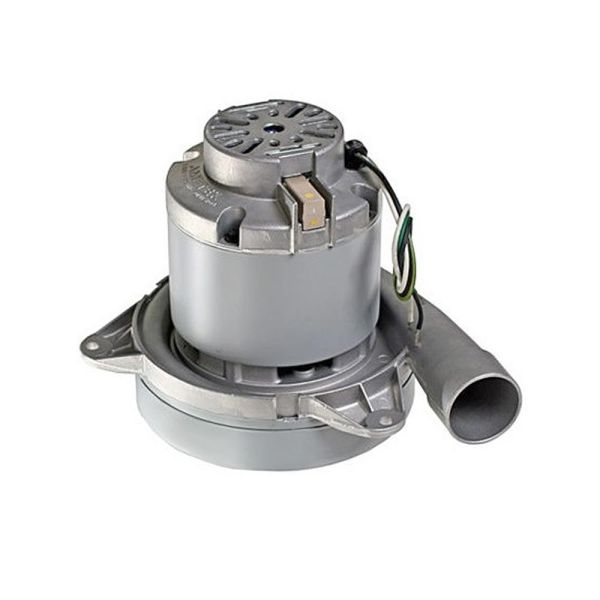

Replace the worn or failed motor in your NuTone CV353 central vacuum with a high-performance Ametek-Lamb 117507 replacement motor. This 120-volt, 3-stage bypass motor restores strong suction and reliable cleaning performance to compatible NuTone central vacuum systems. It replaces motor number 116507 and is also compatible with select NuTone CV353, CV553, and CV653 systems.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
NuTone CV353 Central Vacuum Motor Replacement
Restore your NuTone central vacuum system's cleaning performance with a quality replacement motor designed for the NuTone CV353. The Ametek-Lamb 117507 is a 120-volt, 3-stage tangential bypass motor that is commonly used as a replacement for the original motor in compatible NuTone central vacuum power units.
The NuTone CV353 features a single 3-stage bypass motor and delivers up to 406 Air Watts, 94 CFM, and 134 inches of water lift, making a properly functioning motor essential to maintaining strong suction throughout your central vacuum system.
The Ametek-Lamb 117507 replacement motor replaces NuTone motor #116507 and is listed for the NuTone CV353, as well as several other compatible central vacuum models.
Designed for Reliable Central Vacuum Performance
A worn central vacuum motor can cause reduced suction, unusual noises, overheating, intermittent operation, or a complete loss of vacuum power. Replacing the motor can cost-effectively restore an existing central vacuum power unit without replacing the entire system.
This replacement motor features a 3-stage bypass design, 7.2-inch fan diameter, ball bearings, tangential air discharge, and 120-volt operation. The motor is designed for intermittent-duty central vacuum applications.
Replacement Motor for NuTone CV353
The Ametek-Lamb 117507 is a direct replacement option for compatible NuTone CV353 applications and is also listed for NuTone CV553 and CV653 models. Always compare the motor specifications, mounting configuration, electrical connections, and original motor number before ordering to ensure compatibility with your specific power unit.
Key Features
- Replacement motor for compatible NuTone CV353 central vacuum systems
- Ametek-Lamb 117507 replacement motor
- Replaces NuTone motor #116507
- 120-volt operation
- 3-stage bypass motor
- 7.2-inch fan diameter
- Tangential air discharge
- Ball-bearing motor design
- Up to 406 maximum Air Watts
- Up to 94 CFM airflow
- Designed for central vacuum applications
- Compatible with select NuTone CV353, CV553, and CV653 systems
The Ametek 117470 Will Also Fit the Following NuTone Models:
- NuTone CV353
- NuTone CV553
- NuTone CV653
It is also used in select central vacuum systems from other manufacturers, so verify the original motor number and configuration before ordering.
Important Installation Note
Before installing a replacement central vacuum motor, compare your existing motor with the replacement to verify the voltage, fan diameter, mounting arrangement, wiring, and motor specifications. A replacement motor may also require a compatible motor gasket for proper sealing.
If your original motor is marked 116507, the Ametek-Lamb 117507 is listed as its replacement.
Why Replace the Motor?
Replacing the motor can be an economical alternative to replacing an entire central vacuum power unit when the tank, electrical components, filtration system, and other components remain in good condition.
A new motor can help restore:
- Strong central vacuum suction
- Consistent airflow
- Reliable motor operation
- Proper cleaning performance
- Performance of the existing NuTone power unit
For older systems, inspect the entire power unit before ordering a motor replacement. If the tank, relay, filtration, wiring, or other major components are also worn, replacing the complete power unit may be a better long-term solution.
Frequently Asked Questions
What motor replaces the NuTone CV353 motor?
The Ametek-Lamb 117507 is commonly listed as the replacement motor for the NuTone CV353. It replaces NuTone motor #116507.
What voltage is the NuTone CV353 replacement motor?
The Ametek-Lamb 117507 replacement motor operates at 120 volts.
How many stages does the CV353 replacement motor have?
The replacement motor is a 3-stage bypass motor. The original NuTone CV353 power unit also uses a single 3-stage bypass motor.
What is the airflow of the NuTone CV353 motor?
The CV353 system is rated at 94 CFM at a 2-inch opening, while the Ametek-Lamb 117507 motor is also listed with a maximum airflow of 94 CFM.
How much water lift does the NuTone CV353 have?
The NuTone CV353 is specified at 134 inches of water lift.
Will this motor fit a NuTone CV553 or CV653?
The Ametek-Lamb 117507 is also listed for the NuTone CV553 and CV653. Verify your original motor number and configuration before purchasing.
Should I replace the motor or the entire central vacuum?
If the power unit's tank and other components are in good condition, replacing the motor can be a practical repair. If the system has multiple aging components, significant corrosion, or electrical problems, replacing the entire power unit may be more appropriate.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 833450-57 |
| Motor Watts | 1400 |
| Motor Stages | 3 |
| Motor Fan Diameter | 7.200 |
| Air Discharge | Bypass Tangential |
| Motor Bearing | Ball |
| Weight (lbs) | 9.000000 |
