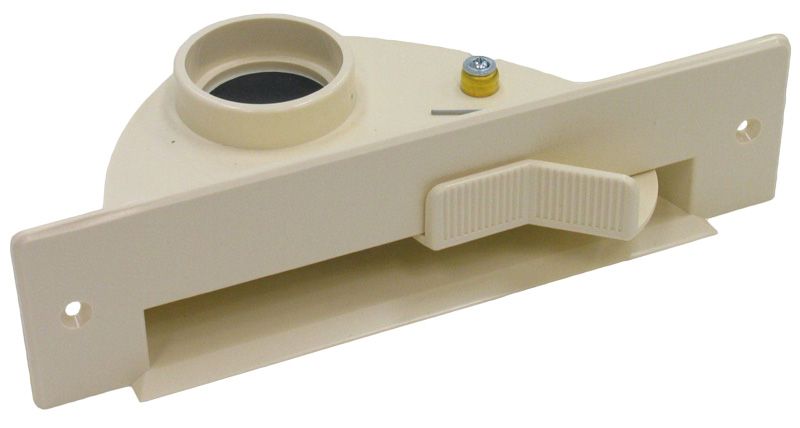

VacPan Automatic Dustpan (Ivory)
$29.74
AD:0004
Flush mountable to your wall or cabinet kickboard, the VacPan is the convenient way to clean up dirt and debris when using a broom.
- Auto-On Inlet Yes
- Trim Available Yes
- General Construction Material ABS Plastic
Quick & Easy
Ordering
Ordering
1SELECT PRODUCT OPTIONS
Using the VacPan is easy. Simply turn the convenient foot switch to the on position and sweep dirt and debris toward the VacPan. The powerful suction from your central vacuum system does the rest.
The VacPan is a perfect fit for any room where you sweep - kitchens, workshops and garages. Installation is easy using standard fittings and pipe and can be installed in new and existing homes features a central vacuum system.
VacPan Installation Tips
-
Plan the location of your Original VacPan to be conveniently located for sweeping clean-ups. Also consider ease of access of vacuum tube piping connections during installation.
-
The leading edge of the Original VacPan must sit flush with the finished floor.
-
For maximum clearance, use Plastiflex part #SV8052 Universal Short 90 degree Elbow for connections to VacPan.
-
Do not glue the connection between Original VacPan and elbow, to allow for future removal.
-
Prior to final installation, check for an airtight seal between Original VacPan and elbow. Teflon tape may be used if required.
-
Allow for 1/2" vertical play in vacuum tube piping a Original VacPan location, so that final piping connections can be made.
In Wall Installations
-
Original VacPan can be installed between wall studs inside walls. -
Original VacPan should be located tight to one side in stud space.
-
Once the Original VacPan location is determined, cut a 6-3/4" long x 1-3/4" high slot in the wall and baseboard to accept the Original VacPan.
-
The 2 x 4 wall bottom plate between the two studs must be removed. This can be achieved from below using a hole saw.
-
In new home construction, the bottom wall plate can be removed directly. A 6-3/4" length of 2 x 4 can be used as a temporary rough in block, that will force all trades to finish around, leaving a slot for the Original VacPan Floor contractor must run flooring under block.
-
Run vacuum tube piping and low voltage wire from the main line to Original VacPan location.
-
Access for final piping connections must be made.
Inlet Types and Installation Diagrams
|
|
||
 Under Cabinet Installations
|
||
| Auto-On Inlet | Yes |
|---|---|
| Trim Available | Yes |
| General Construction Material | ABS Plastic |
| Color | Ivory |
Product Description
Product Specifications
Product Reviews
Read about the Ivory VacPan Dustpan
Using the VacPan is easy. Simply turn the convenient foot switch to the on position and sweep dirt and debris toward the VacPan. The powerful suction from your central vacuum system does the rest.
The VacPan is a perfect fit for any room where you sweep - kitchens, workshops and garages. Installation is easy using standard fittings and pipe and can be installed in new and existing homes features a central vacuum system.
VacPan Installation Tips
-
Plan the location of your Original VacPan to be conveniently located for sweeping clean-ups. Also consider ease of access of vacuum tube piping connections during installation.
-
The leading edge of the Original VacPan must sit flush with the finished floor.
-
For maximum clearance, use Plastiflex part #SV8052 Universal Short 90 degree Elbow for connections to VacPan.
-
Do not glue the connection between Original VacPan and elbow, to allow for future removal.
-
Prior to final installation, check for an airtight seal between Original VacPan and elbow. Teflon tape may be used if required.
-
Allow for 1/2" vertical play in vacuum tube piping a Original VacPan location, so that final piping connections can be made.
In Wall Installations
-
Original VacPan can be installed between wall studs inside walls.
-
Original VacPan should be located tight to one side in stud space.
-
Once the Original VacPan location is determined, cut a 6-3/4" long x 1-3/4" high slot in the wall and baseboard to accept the Original VacPan.
-
The 2 x 4 wall bottom plate between the two studs must be removed. This can be achieved from below using a hole saw.
-
In new home construction, the bottom wall plate can be removed directly. A 6-3/4" length of 2 x 4 can be used as a temporary rough in block, that will force all trades to finish around, leaving a slot for the Original VacPan Floor contractor must run flooring under block.
-
Run vacuum tube piping and low voltage wire from the main line to Original VacPan location.
-
Access for final piping connections must be made.
Inlet Types and Installation Diagrams
|
|
||
| Under Cabinet Installations
|
||
