Vacuflo 360 Motor
$350.00
MT:0077-Vacuflo 360
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

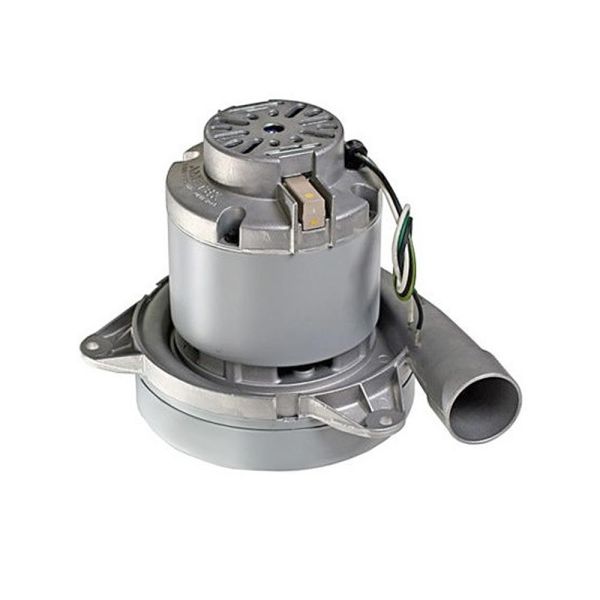

The Ametek-Lamb 117470 is a genuine replacement motor for the VACUFLO 360 central vacuum system. This powerful 120-volt, 3-stage, 7.2-inch bypass motor features a tangential discharge and ball-bearing construction. The 117470 is also compatible with the VACUFLO 860 and select NuTone central vacuum systems.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The 117470 is a heavy-duty central vacuum motor designed for reliable operation in residential and commercial central vacuum applications. It features a 3-stage motor design, 7.2-inch fan, 1,400-watt rating, 120-volt operation, bypass cooling, tangential air discharge, and ball-bearing construction.
This motor is specifically listed as a replacement for the VACUFLO 360 and VACUFLO 860. It is also used in select NuTone central vacuum systems, including the CV353, CV553, and CV653.
Replacing a worn motor can be an economical way to extend the life of an existing VACUFLO 360 power unit when the tank, wiring, relay, and other components remain in good condition.
Powerful 3-Stage Motor
The Ametek-Lamb 117470 uses a 3-stage, 7.2-inch motor design that provides strong vacuum performance for central vacuum applications. Its bypass configuration keeps the cooling air separate from the dirt-laden vacuum airflow, helping protect the motor during operation.
The motor uses tangential bypass discharge and ball bearings for dependable operation.
Designed for the VACUFLO 360
The 117470 is specifically cross-referenced to the:
- VACUFLO 360
- VACUFLO 860
The VACUFLO 860 uses two motors, while the VACUFLO 360 uses one.
Important: Always compare the motor number on your existing motor before ordering. Central vacuum motors can vary by model and production year.
Key Features
- Genuine Ametek-Lamb 117470 replacement motor
- Designed for VACUFLO 360 central vacuum systems
- Also compatible with VACUFLO 860
- 120-volt operation
- Powerful 3-stage motor
- Large 7.2-inch fan
- 1,400-watt motor
- Bypass cooling design
- Tangential air discharge
- Ball-bearing construction
- Carbon brush 833450-57
- Suitable for residential and commercial central vacuum applications
- Ideal for replacing a worn or failed VACUFLO 360 motor
VACUFLO 360 Motor Replacement
If your VACUFLO 360 has reduced suction or unusual motor performance, replacing the motor may restore proper operation.
Common symptoms of a failing central vacuum motor include:
- Weak or reduced suction
- Motor running louder than normal
- Excessive vibration
- Motor overheating
- Motor shutting off during use
- Motor failing to start
- Burning or electrical odor
- Excessive carbon brush sparking
- Circuit breaker tripping
Before replacing the motor, inspect the hose, inlet valves, tubing, filters, and other components for restrictions. A clogged hose or blocked tubing can cause reduced suction even when the motor is functioning properly.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 833450-57 |
| Motor Watts | 1400 |
| Motor Stages | 3 |
| Motor Fan Diameter | 7.200 |
| Air Discharge | Bypass Tangential |
| Motor Bearing | Ball |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Product Videos
Product Reviews
Read about the 117470 Ametek Lamb Motor
The 117470 is a heavy-duty central vacuum motor designed for reliable operation in residential and commercial central vacuum applications. It features a 3-stage motor design, 7.2-inch fan, 1,400-watt rating, 120-volt operation, bypass cooling, tangential air discharge, and ball-bearing construction.
This motor is specifically listed as a replacement for the VACUFLO 360 and VACUFLO 860. It is also used in select NuTone central vacuum systems, including the CV353, CV553, and CV653.
Replacing a worn motor can be an economical way to extend the life of an existing VACUFLO 360 power unit when the tank, wiring, relay, and other components remain in good condition.
Powerful 3-Stage Motor
The Ametek-Lamb 117470 uses a 3-stage, 7.2-inch motor design that provides strong vacuum performance for central vacuum applications. Its bypass configuration keeps the cooling air separate from the dirt-laden vacuum airflow, helping protect the motor during operation.
The motor uses tangential bypass discharge and ball bearings for dependable operation.
Designed for the VACUFLO 360
The 117470 is specifically cross-referenced to the:
- VACUFLO 360
- VACUFLO 860
The VACUFLO 860 uses two motors, while the VACUFLO 360 uses one.
Important: Always compare the motor number on your existing motor before ordering. Central vacuum motors can vary by model and production year.
Key Features
- Genuine Ametek-Lamb 117470 replacement motor
- Designed for VACUFLO 360 central vacuum systems
- Also compatible with VACUFLO 860
- 120-volt operation
- Powerful 3-stage motor
- Large 7.2-inch fan
- 1,400-watt motor
- Bypass cooling design
- Tangential air discharge
- Ball-bearing construction
- Carbon brush 833450-57
- Suitable for residential and commercial central vacuum applications
- Ideal for replacing a worn or failed VACUFLO 360 motor
VACUFLO 360 Motor Replacement
If your VACUFLO 360 has reduced suction or unusual motor performance, replacing the motor may restore proper operation.
Common symptoms of a failing central vacuum motor include:
- Weak or reduced suction
- Motor running louder than normal
- Excessive vibration
- Motor overheating
- Motor shutting off during use
- Motor failing to start
- Burning or electrical odor
- Excessive carbon brush sparking
- Circuit breaker tripping
Before replacing the motor, inspect the hose, inlet valves, tubing, filters, and other components for restrictions. A clogged hose or blocked tubing can cause reduced suction even when the motor is functioning properly.
-
