Vacuflo 560 Motor
$322.00
MT:0032-Vacuflo 560
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

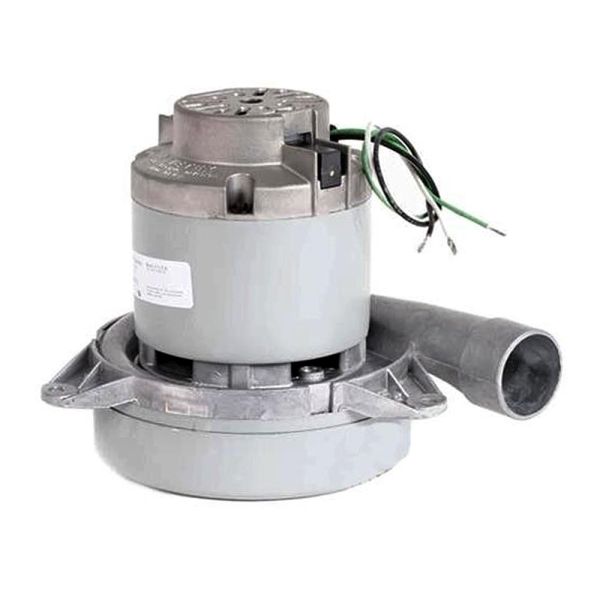

The Ametek-Lamb 117549-12 is a high-quality replacement motor designed for the VACUFLO 560 central vacuum system. This 120V, 2-stage, 7.2-inch bypass motor delivers approximately 111 CFM, 125.4 inches of waterlift, and 483 Air Watts for strong, dependable cleaning performance. Featuring tangential air discharge and ball-bearing construction, the 117549-12 is built for reliable operation and is also compatible with the VACUFLO 960, which requires two motors.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The 117549-12 is a powerful 120V, 2-stage central vacuum motor designed to provide reliable airflow and strong vacuum performance. With its 7.2-inch fan, bypass motor design, tangential air discharge, and ball-bearing construction, this replacement motor is an excellent choice for restoring a VACUFLO 560 that has a worn or failed motor.
The motor produces approximately 111 CFM, 125.4 inches of waterlift, and 483 Air Watts, providing the suction needed for effective whole-home central vacuum cleaning.
Designed for the VACUFLO 560
The Ametek-Lamb 117549-12 is designed as a replacement motor for the VACUFLO 560 central vacuum system. It is also used in the VACUFLO 960, which features a dual-motor configuration.
The VACUFLO 560 uses one motor, while the VACUFLO 960 uses two motors.
Powerful 2-Stage Bypass Motor
The 117549-12 features a 2-stage motor design and a large 7.2-inch fan to provide strong vacuum performance. Its bypass configuration separates the motor's cooling airflow from the air being pulled through the vacuum system, helping protect the motor from dirt and debris.
The tangential air discharge directs exhaust air away from the motor, while the ball-bearing construction provides smooth and dependable operation.
Motor Specifications
- Motor: Ametek-Lamb 117549-12
- Voltage: 120V
- Motor Stages: 2-Stage
- Fan Diameter: 7.2 inches
- Motor Type: Bypass
- Air Discharge: Tangential
- Airflow: Approximately 111 CFM
- Waterlift: Approximately 125.4 inches
- Air Watts: Approximately 483
- Bearing: Ball Bearing
- Carbon Brush: 833450-57
- VACUFLO Application: 560
- Also Compatible With: VACUFLO 960
Signs Your VACUFLO 560 Motor May Need Replacement
A central vacuum motor can wear down over time. If your VACUFLO 560 is experiencing any of the following symptoms, the motor may need to be replaced:
- Reduced suction
- Poor vacuum performance
- Unusual or excessive motor noise
- Increased vibration
- Motor overheating
- Motor shutting off during operation
- Motor failing to start
- Burning or electrical odor
- Excessive sparking
- Circuit breaker tripping
Before replacing the motor, check the hose, inlet valves, tubing, filter, and other components for blockages. A restriction in the vacuum system can also cause reduced suction.
Replace the Motor Instead of the Entire Power Unit
Replacing the motor can be a cost-effective way to extend the life of your VACUFLO 560 when the power unit tank and other components are still in good condition.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33450-2 Replaced by 833450-57 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 7.200 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32 |
| Motor High Temp | 104 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 6.000000 |
Product Description
Product Specifications
Product Videos
Product Reviews
Read about the 117549-12 Ametek Lamb Motor
The 117549-12 is a powerful 120V, 2-stage central vacuum motor designed to provide reliable airflow and strong vacuum performance. With its 7.2-inch fan, bypass motor design, tangential air discharge, and ball-bearing construction, this replacement motor is an excellent choice for restoring a VACUFLO 560 that has a worn or failed motor.
The motor produces approximately 111 CFM, 125.4 inches of waterlift, and 483 Air Watts, providing the suction needed for effective whole-home central vacuum cleaning.
Designed for the VACUFLO 560
The Ametek-Lamb 117549-12 is designed as a replacement motor for the VACUFLO 560 central vacuum system. It is also used in the VACUFLO 960, which features a dual-motor configuration.
The VACUFLO 560 uses one motor, while the VACUFLO 960 uses two motors.
Powerful 2-Stage Bypass Motor
The 117549-12 features a 2-stage motor design and a large 7.2-inch fan to provide strong vacuum performance. Its bypass configuration separates the motor's cooling airflow from the air being pulled through the vacuum system, helping protect the motor from dirt and debris.
The tangential air discharge directs exhaust air away from the motor, while the ball-bearing construction provides smooth and dependable operation.
Motor Specifications
- Motor: Ametek-Lamb 117549-12
- Voltage: 120V
- Motor Stages: 2-Stage
- Fan Diameter: 7.2 inches
- Motor Type: Bypass
- Air Discharge: Tangential
- Airflow: Approximately 111 CFM
- Waterlift: Approximately 125.4 inches
- Air Watts: Approximately 483
- Bearing: Ball Bearing
- Carbon Brush: 833450-57
- VACUFLO Application: 560
- Also Compatible With: VACUFLO 960
Signs Your VACUFLO 560 Motor May Need Replacement
A central vacuum motor can wear down over time. If your VACUFLO 560 is experiencing any of the following symptoms, the motor may need to be replaced:
- Reduced suction
- Poor vacuum performance
- Unusual or excessive motor noise
- Increased vibration
- Motor overheating
- Motor shutting off during operation
- Motor failing to start
- Burning or electrical odor
- Excessive sparking
- Circuit breaker tripping
Before replacing the motor, check the hose, inlet valves, tubing, filter, and other components for blockages. A restriction in the vacuum system can also cause reduced suction.
Replace the Motor Instead of the Entire Power Unit
Replacing the motor can be a cost-effective way to extend the life of your VACUFLO 560 when the power unit tank and other components are still in good condition.
-
