Vacuflo 860 Motor
$350.00
MT:0077-Vacuflo 860
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

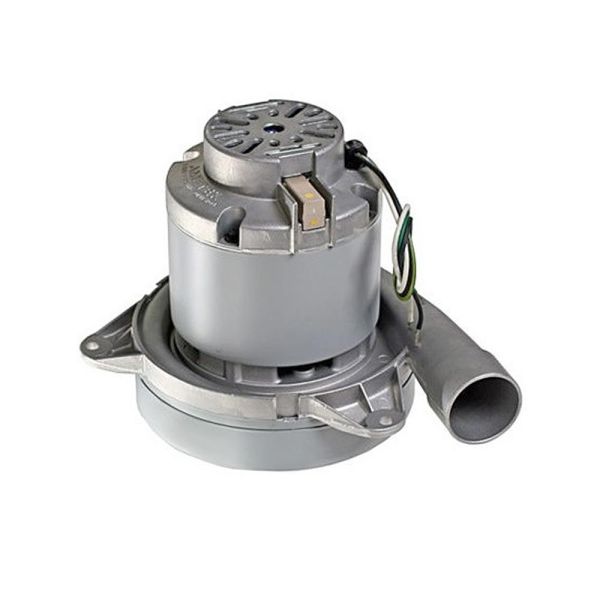

The Ametek-Lamb 117470 replaces the motor in the VACUFLO 860 central vacuum system. This powerful 120V, 3-stage, 7.2-inch bypass motor features a 1,400-watt rating, tangential exhaust, and ball-bearing construction. The VACUFLO 860 uses two motors, so you need two 117470 motors when replacing both.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The 117470 is a heavy-duty, 3-stage, 120-volt central vacuum motor with a large 7.2-inch fan and a 1,400-watt motor rating. Its bypass design separates the motor's cooling airflow from the dirt-laden vacuum airflow, helping protect the motor during operation.
The VACUFLO 860 is a dual-motor power unit, so you need two motors when replacing both original motors. The Ametek-Lamb 117470 is also used in compatible VACUFLO 360 applications.
Powerful 3-Stage Motor Design
The Ametek-Lamb 117470 features a 3-stage motor and 7.2-inch fan designed to provide strong vacuum performance for demanding central vacuum applications.
Its bypass configuration keeps cooling air separate from the air being pulled through the vacuum system. The motor also features tangential air discharge and ball-bearing construction for dependable operation.
Key Features
- Replacement motor for VACUFLO 860 central vacuum systems
- Ametek-Lamb 117470
- 120V operation
- 1,400-watt motor
- Powerful 3-stage design
- Large 7.2-inch fan
- Bypass motor configuration
- Tangential exhaust
- Ball-bearing construction
- Uses 833450-57 carbon brushes
- Also compatible with select VACUFLO 360 systems
- Two motors required to replace both motors in a VACUFLO 860
VACUFLO 860 Motor Replacement
A worn motor can significantly reduce your central vacuum system's performance. If your VACUFLO 860 is experiencing weak suction, excessive noise, overheating, or intermittent operation, the motor may need to be replaced.
Common signs of a failing motor include:
- Reduced suction
- Weak cleaning performance
- Excessive motor noise
- Motor vibration
- Overheating
- Motor shutting off during operation
- Motor failing to start
- Burning or electrical odor
- Excessive sparking
- Circuit breaker tripping
Before replacing the motor, check the hose, inlet valves, tubing, filters, and other components for blockages or restrictions.
Two Motors Required for VACUFLO 860
The VACUFLO 860 is designed with two motors.
If both motors require replacement:
Quantity Required: 2 × Ametek-Lamb 117470
If only one motor has failed, a single replacement motor may be sufficient. However, if both motors are the same age, replacing both at the same time can help maintain consistent performance.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 833450-57 |
| Motor Watts | 1400 |
| Motor Stages | 3 |
| Motor Fan Diameter | 7.200 |
| Air Discharge | Bypass Tangential |
| Motor Bearing | Ball |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Product Videos
Product Reviews
Read about the 117470 Ametek Lamb Motor
The 117470 is a heavy-duty, 3-stage, 120-volt central vacuum motor with a large 7.2-inch fan and a 1,400-watt motor rating. Its bypass design separates the motor's cooling airflow from the dirt-laden vacuum airflow, helping protect the motor during operation.
The VACUFLO 860 is a dual-motor power unit, so you need two motors when replacing both original motors. The Ametek-Lamb 117470 is also used in compatible VACUFLO 360 applications.
Powerful 3-Stage Motor Design
The Ametek-Lamb 117470 features a 3-stage motor and 7.2-inch fan designed to provide strong vacuum performance for demanding central vacuum applications.
Its bypass configuration keeps cooling air separate from the air being pulled through the vacuum system. The motor also features tangential air discharge and ball-bearing construction for dependable operation.
Key Features
- Replacement motor for VACUFLO 860 central vacuum systems
- Ametek-Lamb 117470
- 120V operation
- 1,400-watt motor
- Powerful 3-stage design
- Large 7.2-inch fan
- Bypass motor configuration
- Tangential exhaust
- Ball-bearing construction
- Uses 833450-57 carbon brushes
- Also compatible with select VACUFLO 360 systems
- Two motors required to replace both motors in a VACUFLO 860
VACUFLO 860 Motor Replacement
A worn motor can significantly reduce your central vacuum system's performance. If your VACUFLO 860 is experiencing weak suction, excessive noise, overheating, or intermittent operation, the motor may need to be replaced.
Common signs of a failing motor include:
- Reduced suction
- Weak cleaning performance
- Excessive motor noise
- Motor vibration
- Overheating
- Motor shutting off during operation
- Motor failing to start
- Burning or electrical odor
- Excessive sparking
- Circuit breaker tripping
Before replacing the motor, check the hose, inlet valves, tubing, filters, and other components for blockages or restrictions.
Two Motors Required for VACUFLO 860
The VACUFLO 860 is designed with two motors.
If both motors require replacement:
Quantity Required: 2 × Ametek-Lamb 117470
If only one motor has failed, a single replacement motor may be sufficient. However, if both motors are the same age, replacing both at the same time can help maintain consistent performance.
-
