Vacuflo FC650 Motor
$223.00
MT:0061-Vacuflo FC650
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

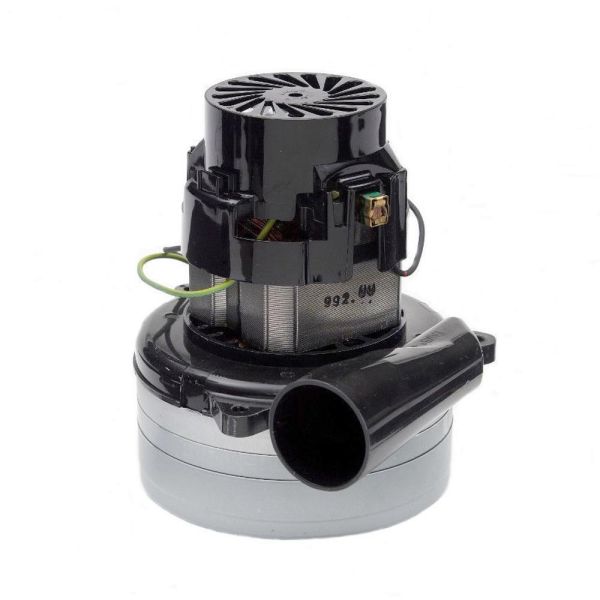

The Ametek-Lamb 119914-45 is a replacement motor designed for the VACUFLO FC650 and FC650-C central vacuum systems. This powerful 120V, 2-stage, 5.7-inch bypass motor features tangential air discharge and ball-bearing construction. The 119914-45 replaces older Ametek-Lamb motor numbers 119956 and 119914-07.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
VACUFLO FC650 Replacement Motor – Ametek-Lamb 119914-45
Restore the suction and cleaning performance of your VACUFLO FC650 central vacuum system with the Ametek-Lamb 119914-45 replacement motor.
The 119914-45 is a powerful 120-volt, 2-stage bypass motor designed for central vacuum applications. With a 5.7-inch fan, tangential air discharge, and ball-bearing construction, this motor provides the airflow and vacuum pressure needed for residential central vacuum cleaning.
The Ametek-Lamb 119914-45 is specifically compatible with the VACUFLO FC650 and FC650-C. It also replaces the older Ametek-Lamb motor numbers 119956 and 119914-07.
If your VACUFLO FC650 has developed weak suction, excessive motor noise, overheating, or stopped operating altogether, replacing the motor can be an economical way to restore your existing central vacuum system.
Powerful 2-Stage Bypass Motor
The Ametek-Lamb 119914-45 uses a 2-stage motor design with a 5.7-inch fan. The bypass configuration keeps the motor's cooling air separate from the air being pulled through the vacuum system.
This design protects the motor from dirt and debris while delivering strong vacuum performance.
The motor features:
- 120V operation
- 2-stage fan system
- 5.7-inch fan diameter
- Bypass motor design
- Tangential air discharge
- Ball-bearing construction
- Lead-wire electrical connections
VACUFLO FC650 Compatibility
The 119914-45 is specifically listed for:
- VACUFLO FC650
- VACUFLO FC650-C
It is also a replacement for:
- Ametek-Lamb 119956
- Ametek-Lamb 119914-07
Always compare the motor number on your existing motor before ordering. Central vacuum motors can look similar but have different electrical and mounting specifications.
Key Features
- Replacement motor for VACUFLO FC650
- Compatible with VACUFLO FC650-C
- Genuine Ametek-Lamb 119914-45
- 120V motor
- Powerful 2-stage design
- 5.7-inch fan
- Bypass cooling design
- Tangential air discharge
- Ball-bearing construction
- Uses 33505-1 carbon brushes
- Replaces 119956
- Replaces 119914-07
- Suitable for residential central vacuum applications
VACUFLO FC650 Motor Replacement
A central vacuum motor operates every time the system is turned on, making it one of the most important components in the power unit. Over time, motor brushes, bearings, and other internal components can wear out.
A failing VACUFLO FC650 motor may cause:
- Reduced suction
- Poor cleaning performance
- Unusual or excessive noise
- Motor overheating
- Intermittent operation
- Motor shutting off during use
- Motor failing to start
- Burning or electrical odor
- Excessive motor sparking
- Circuit breaker trips
Before replacing the motor, check the hose, wall inlets, tubing, filter, and other components for blockages. A restriction in the vacuum system can also result in poor suction.
Primary Motor Number
119914-45
Replaces
- 119956
- 119914-07
VACUFLO Applications
- FC650
- FC650-C
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33505-1 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Tangential |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Plastic |
| Motor Fan Bracket Material | Plastic |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 119914-45 Ametek Lamb Motor
VACUFLO FC650 Replacement Motor – Ametek-Lamb 119914-45
Restore the suction and cleaning performance of your VACUFLO FC650 central vacuum system with the Ametek-Lamb 119914-45 replacement motor.
The 119914-45 is a powerful 120-volt, 2-stage bypass motor designed for central vacuum applications. With a 5.7-inch fan, tangential air discharge, and ball-bearing construction, this motor provides the airflow and vacuum pressure needed for residential central vacuum cleaning.
The Ametek-Lamb 119914-45 is specifically compatible with the VACUFLO FC650 and FC650-C. It also replaces the older Ametek-Lamb motor numbers 119956 and 119914-07.
If your VACUFLO FC650 has developed weak suction, excessive motor noise, overheating, or stopped operating altogether, replacing the motor can be an economical way to restore your existing central vacuum system.
Powerful 2-Stage Bypass Motor
The Ametek-Lamb 119914-45 uses a 2-stage motor design with a 5.7-inch fan. The bypass configuration keeps the motor's cooling air separate from the air being pulled through the vacuum system.
This design protects the motor from dirt and debris while delivering strong vacuum performance.
The motor features:
- 120V operation
- 2-stage fan system
- 5.7-inch fan diameter
- Bypass motor design
- Tangential air discharge
- Ball-bearing construction
- Lead-wire electrical connections
VACUFLO FC650 Compatibility
The 119914-45 is specifically listed for:
- VACUFLO FC650
- VACUFLO FC650-C
It is also a replacement for:
- Ametek-Lamb 119956
- Ametek-Lamb 119914-07
Always compare the motor number on your existing motor before ordering. Central vacuum motors can look similar but have different electrical and mounting specifications.
Key Features
- Replacement motor for VACUFLO FC650
- Compatible with VACUFLO FC650-C
- Genuine Ametek-Lamb 119914-45
- 120V motor
- Powerful 2-stage design
- 5.7-inch fan
- Bypass cooling design
- Tangential air discharge
- Ball-bearing construction
- Uses 33505-1 carbon brushes
- Replaces 119956
- Replaces 119914-07
- Suitable for residential central vacuum applications
VACUFLO FC650 Motor Replacement
A central vacuum motor operates every time the system is turned on, making it one of the most important components in the power unit. Over time, motor brushes, bearings, and other internal components can wear out.
A failing VACUFLO FC650 motor may cause:
- Reduced suction
- Poor cleaning performance
- Unusual or excessive noise
- Motor overheating
- Intermittent operation
- Motor shutting off during use
- Motor failing to start
- Burning or electrical odor
- Excessive motor sparking
- Circuit breaker trips
Before replacing the motor, check the hose, wall inlets, tubing, filter, and other components for blockages. A restriction in the vacuum system can also result in poor suction.
Primary Motor Number
119914-45
Replaces
- 119956
- 119914-07
VACUFLO Applications
- FC650
- FC650-C
-
