Vacuflo Maxum Whisper Motor
$161.00
MT:0048-Vacuflo Maxum Whisper
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

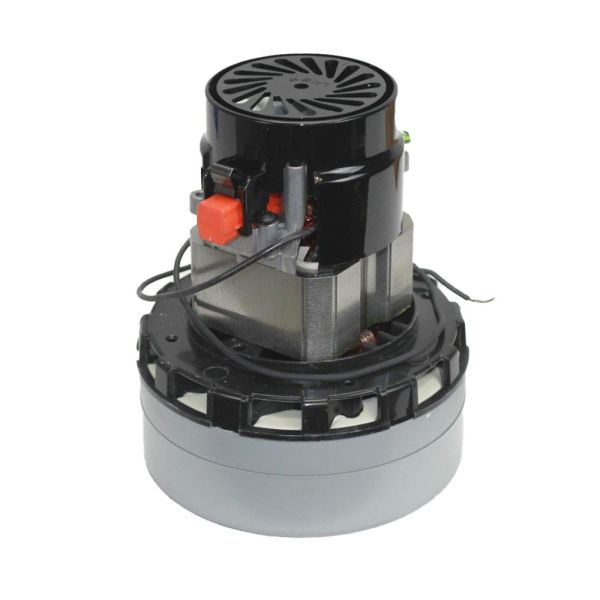

Replace the worn or failed motor in your VACUFLO Maxum Whisper central vacuum with the Ametek Lamb 116763 replacement motor. This genuine 120V, 2-stage bypass motor features a 5.7-inch fan and restores suction and performance in compatible VACUFLO Maxum Whisper systems.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
VACUFLO Maxum Whisper Replacement Motor – Ametek Lamb 116763
Restore your VACUFLO Maxum Whisper central vacuum's cleaning performance with the genuine Ametek Lamb 116763 replacement motor. This powerful 120-volt, 2-stage bypass motor is specifically cross-referenced for the VACUFLO Maxum Whisper and is also used in select AirVac and BEAM central vacuum systems.
The Ametek Lamb 116763 features a 5.7-inch fan diameter, a 1,200-watt rating, a 2-stage design, and a bypass/peripheral discharge configuration. Published performance specifications include approximately 110 CFM of maximum airflow, 107.1 inches of sealed vacuum, and 387 Air Watts.
A central vacuum motor is one of the most important components in the power unit. When the motor begins to wear out, you may notice reduced suction, excessive noise, overheating, intermittent operation, or a complete loss of vacuum power. Replacing the motor can restore your existing VACUFLO system without replacing the entire power unit.
Genuine Ametek Lamb 116763 Motor
The 116763 is a genuine Ametek Lamb central vacuum motor designed for compatible residential and commercial vacuum applications. It uses a 2-stage bypass design that separates motor-cooling airflow from the air vacuumed through the system.
The motor is also listed as a replacement for:
- VACUFLO Maxum Whisper
- BEAM 168C
- AirVac 395
VACUFLO Maxum Whisper Compatibility
If your central vacuum is a VACUFLO Maxum Whisper, the Ametek Lamb 116763 is the motor number commonly specified for this system. ThinkVacuums also lists the 116763 as compatible with the VACUFLO Maxum Whisper.
Important: Always verify the motor number printed on your existing motor before ordering. Central vacuum motors can look very similar while having different electrical, mounting, or performance specifications.
Key Features
- Genuine Ametek Lamb 116763 replacement motor
- Designed for VACUFLO Maxum Whisper
- 120V electrical configuration
- Powerful 2-stage motor design
- 5.7-inch fan diameter
- 1,200-watt motor
- Bypass motor construction
- Up to 110 CFM airflow
- Up to 107.1 inches of sealed vacuum
- Up to 387 Air Watts
- Peripheral air discharge
- Suitable for compatible residential and commercial central vacuum applications
- Common replacement for AirVac 395 and BEAM 168C
- Brand-new replacement motor
Compatible Central Vacuum Models
The Ametek Lamb 116763 is commonly cross-referenced with:
VACUFLO
- Maxum Whisper
BEAM
- 168C
AirVac
- 395
Signs Your VACUFLO Motor May Need Replacement
A failing central vacuum motor may produce several warning signs:
- Loss of suction
- Reduced cleaning performance
- Unusual or excessive motor noise
- Motor overheating
- Motor shutting off during use
- Motor failing to start
- Electrical odor
- Excessive motor sparking
- Circuit breaker repeatedly tripping
Before replacing the motor, check the hose, inlet valves, piping, filter, bag, and other components for blockages or restrictions. A clogged filter or obstruction can sometimes create symptoms that resemble motor failure.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33392-17 |
| Motor Watts | 1200 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Bypass |
| Air Discharge | Peripheral |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Plastic |
| Weight (lbs) | 9.000000 |
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 116763 Ametek Lamb Motor
VACUFLO Maxum Whisper Replacement Motor – Ametek Lamb 116763
Restore your VACUFLO Maxum Whisper central vacuum's cleaning performance with the genuine Ametek Lamb 116763 replacement motor. This powerful 120-volt, 2-stage bypass motor is specifically cross-referenced for the VACUFLO Maxum Whisper and is also used in select AirVac and BEAM central vacuum systems.
The Ametek Lamb 116763 features a 5.7-inch fan diameter, a 1,200-watt rating, a 2-stage design, and a bypass/peripheral discharge configuration. Published performance specifications include approximately 110 CFM of maximum airflow, 107.1 inches of sealed vacuum, and 387 Air Watts.
A central vacuum motor is one of the most important components in the power unit. When the motor begins to wear out, you may notice reduced suction, excessive noise, overheating, intermittent operation, or a complete loss of vacuum power. Replacing the motor can restore your existing VACUFLO system without replacing the entire power unit.
Genuine Ametek Lamb 116763 Motor
The 116763 is a genuine Ametek Lamb central vacuum motor designed for compatible residential and commercial vacuum applications. It uses a 2-stage bypass design that separates motor-cooling airflow from the air vacuumed through the system.
The motor is also listed as a replacement for:
- VACUFLO Maxum Whisper
- BEAM 168C
- AirVac 395
VACUFLO Maxum Whisper Compatibility
If your central vacuum is a VACUFLO Maxum Whisper, the Ametek Lamb 116763 is the motor number commonly specified for this system. ThinkVacuums also lists the 116763 as compatible with the VACUFLO Maxum Whisper.
Important: Always verify the motor number printed on your existing motor before ordering. Central vacuum motors can look very similar while having different electrical, mounting, or performance specifications.
Key Features
- Genuine Ametek Lamb 116763 replacement motor
- Designed for VACUFLO Maxum Whisper
- 120V electrical configuration
- Powerful 2-stage motor design
- 5.7-inch fan diameter
- 1,200-watt motor
- Bypass motor construction
- Up to 110 CFM airflow
- Up to 107.1 inches of sealed vacuum
- Up to 387 Air Watts
- Peripheral air discharge
- Suitable for compatible residential and commercial central vacuum applications
- Common replacement for AirVac 395 and BEAM 168C
- Brand-new replacement motor
Compatible Central Vacuum Models
The Ametek Lamb 116763 is commonly cross-referenced with:
VACUFLO
- Maxum Whisper
BEAM
- 168C
AirVac
- 395
Signs Your VACUFLO Motor May Need Replacement
A failing central vacuum motor may produce several warning signs:
- Loss of suction
- Reduced cleaning performance
- Unusual or excessive motor noise
- Motor overheating
- Motor shutting off during use
- Motor failing to start
- Electrical odor
- Excessive motor sparking
- Circuit breaker repeatedly tripping
Before replacing the motor, check the hose, inlet valves, piping, filter, bag, and other components for blockages or restrictions. A clogged filter or obstruction can sometimes create symptoms that resemble motor failure.
-
