VacuMaid P-60 Motor
$116.00
Compatible with the following Brands & Models
(hover over each)
- AstroVacAstroVac SR-34
- VacuMaid VacuMaid P-60
- CV International CV International CV612, CV International CV-612
- Pullman Holt Pullman Holt 2 MTR
MT:0016-VacuMaid P-60
Please Make Sure to
Double-check the Motor Number Before you Purchase.
Double-check the Motor Number Before you Purchase.
If you are Not Sure if this Motor Will Fit Your Unit,
Please Call
Please Call
1-800-322-2965 Before you Purchase.
Motors are Non-Refundable

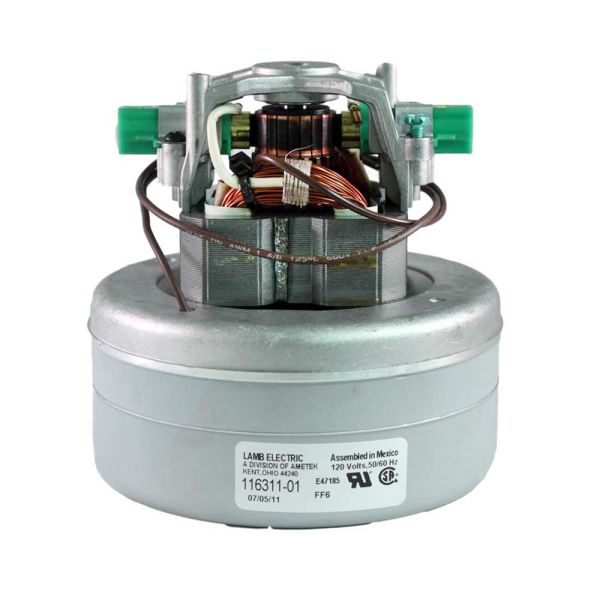

This genuine Ametek-Lamb 116311 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 116311 motor and would rather upgrade your system then call us at 1.800.322.2965 for Central Vacuum Recommendations.
Attention Consumer
Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
This genuine Ametek-Lamb 116311 is one of the most common central vacuum motor in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 116311 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 116311 Replacement Motor for the Following Central Vacuum Models
- AstroVac SR-34
- VacuMaid P-60
- Pullman Holt 2 mtr
- CV International CV612
- CV International CV-612
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
| Replacement Part Type | Motors |
|---|---|
| Voltage | 120 |
| Carbon Brush | 33384 |
| Motor Stages | 2 |
| Motor Speeds | 1 |
| Motor Type | Series Universal |
| Motor Frequency | 50/60Hz |
| Motor Fan Diameter | 5.700 |
| Fan System Style | Through-Flow |
| Motor Low Temp | 32.000 |
| Motor High Temp | 104.000 |
| Motor Bearing | Ball/Sleeve Bearings |
| Motor Comm Bracket Material | Aluminum |
| Motor Fan Bracket Material | Aluminum |
| Motor Insulation Class | A |
| Motor Fan Shell Coat | none |
| Motor Duty Cycle | Intermittent |
| Motor Electrical Connection | Lead Wires |
| Weight (lbs) | 9.000000 |
-
-20%
FlipBUS Central Vacuum Cleaning Balls
Was $62.75
Save $12.80 (20%) through 01/16/2025
Save: 20%
On Sale: $49.95
Save $12.80 through 01/16/2025$49.95
-
-17%
Tornado Power Central Vacuum Maintenance Cloths
Was $29.95
Save $5.00 (17%) through 01/16/2025
Save: 17%
On Sale: $24.95
Save $5.00 through 01/16/2025$24.95
Product Description
Product Specifications
Download Instructions
Product Videos
Product Reviews
Read about the 116311 Ametek Lamb Motor
This genuine Ametek-Lamb 116311 is one of the most common central vacuum motor in the industry today. This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 116311 motor and would rather upgrade your system then click for Central Vacuum Recommendations.
Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.
We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.
Ametek-Lamb 116311 Replacement Motor for the Following Central Vacuum Models
- AstroVac SR-34
- VacuMaid P-60
- Pullman Holt 2 mtr
- CV International CV612
- CV International CV-612
* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.
* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.
