VacuMaid SR46 Central Vacuum System
$1,179.95
PU:D:0205
- 14.0 Max Amps, 663 Airwatts, 139 CFM, 132 Waterlift
- For Homes Up To 9,500 Sq Ft
- Large 6.75-Gallon Dirt Canister
- Provides Cyclonic Filtration with Added Inverted Bag Barrier
- Quiet Operation 60 dB When Vented Exhaust
- Utility Valve on Front of Unit Allows You to Plug Directly Into the Power Unit
- Ametek Lamb 6.6" 2-Stage Tangential Motor
- Made in the USA
The Vacumaid SR46 6.75 Gallon System Power Unit has the dirt capacity of 27 QT, with an easy inverted bag canister for quick disposal of all allergens and dirt produced inside your home. This improves the air quality and may alleviate any allergy symptoms experienced due to dust mites.
Attention Consumer
Important Maintenance Tips: Vacumaid highly recommends emptying the dirt canister every 4 to 6 months to promote maximum airflow and prolong the life of the motor. Don't forget to order Tornado cloths and other maintenance items below to keep your vacuum performing properly.
Easy Ordering
As Simple As 1-2-3
As Simple As 1-2-3
1SELECT PRODUCT OPTIONS
The VacuMaid SR46 Central Vacuum System delivers powerful suction and efficient cleaning for large homes up to 9,500 square feet. Its 6.6-inch 2-stage tangential bypass motor produces 663 air watts, 139 CFM airflow, and 132 inches of water lift, giving you strong cleaning performance.
This model features a large 6.75-gallon dirt canister, which means less frequent emptying. It uses cyclonic filtration with an inverted bag system to keep dirt separated and maintain suction over time.
Built with durable materials for long-lasting reliability, the SR46 operates quietly at just 58 decibels, so cleaning won’t disrupt your household. Backed by a 10-year warranty, it’s a dependable choice for thorough whole-home cleaning.
VacuMaid SR46 Power Unit Features:
Durable Steel Construction
- Manufactured in the USA
- Made From Rolled Galvannealed Steel
- Powder-Coated for Tough, Corrosion Resistant Lifetime of Use
Power & Design
- Ametek Lamb High Air Watt 6.6" 2-Stage Tangential Bypass Motor
- Long Life Motor; Approx. 1500 Hours

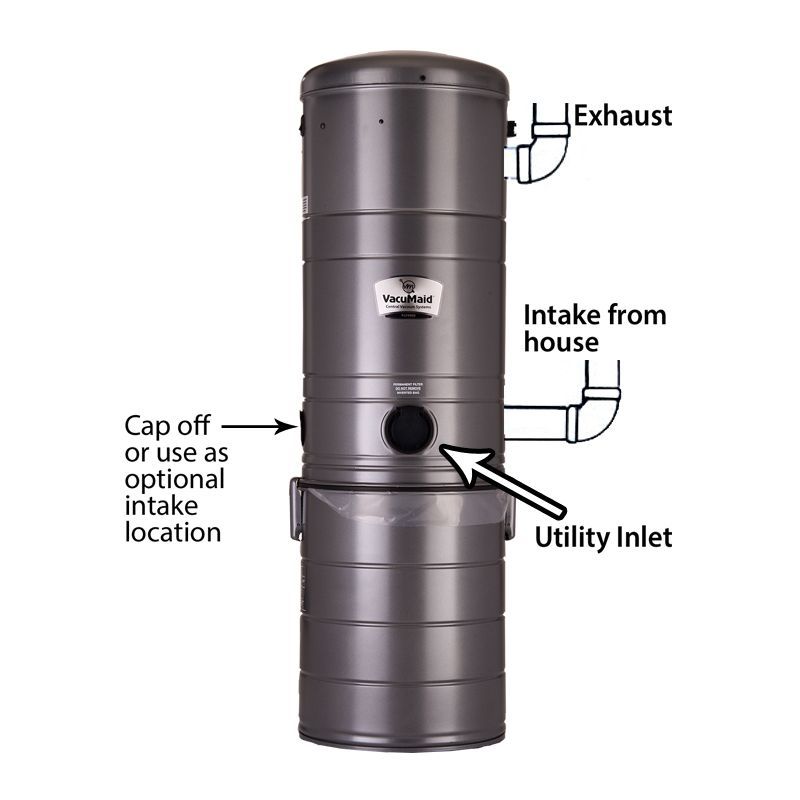

- Utility Valve on The Unit Allows You To Plug Directly Into The Unit
Inverted Bag Filtration
- Provides Cyclonic Filtration With Added Inverted Bag Barrier
SR14 Central Vacuum Specs:
- 6.6" 2-Stage Tangential Bypass Motor
- Cyclonic Inverted Bag
- 6.75 Dirt Canister
- dB Rating With Vented Exhaust: 58
- Power Unit Dimensions: Diameter: 12-7/8 in / Height: 39-7/8 in
- For Homes Up To 9,500 Sq Ft
SR14 Motor Specs:
- Volts....................120
- Max Amps...........14.0
- Max Airwatts........663
- Airflow...................139 (CFM)
- Sealed Vacuum......132 (Waterlift)
| Square Footage | 95000 |
|---|---|
| Waterlift | 132.000 |
| Max Air Watts | 663.000 |
| System Type | Filtered Cyclonic |
| Product Warranty | 10 Year Limited Lifetime Warranty |
| Capacity (Gallons) | 6.75 |
| Color | Black |
| Product Width (Inches) | 12.88 |
| Product Height (Inches) | 39.88 |
| Product Length (Inches) | 12.88 |
| Visual Interface | None |
| Filter Type | Inverted |
| Voltage | 120 |
| Amps | 14.00 |
| Decibels | 60.00 |
| Square Footage | 95000 |
| Utility Valve? | Yes |
Product Description
Product Specifications
Product Reviews
Read about the SR46 Vacumaid Central Vacuum Unit
The VacuMaid SR46 Central Vacuum System delivers powerful suction and efficient cleaning for large homes up to 9,500 square feet. Its 6.6-inch 2-stage tangential bypass motor produces 663 air watts, 139 CFM airflow, and 132 inches of water lift, giving you strong cleaning performance.
This model features a large 6.75-gallon dirt canister, which means less frequent emptying. It uses cyclonic filtration with an inverted bag system to keep dirt separated and maintain suction over time.
Built with durable materials for long-lasting reliability, the SR46 operates quietly at just 58 decibels, so cleaning won’t disrupt your household. Backed by a 10-year warranty, it’s a dependable choice for thorough whole-home cleaning.
VacuMaid SR46 Power Unit Features:
Durable Steel Construction
- Manufactured in the USA
- Made From Rolled Galvannealed Steel
- Powder-Coated for Tough, Corrosion Resistant Lifetime of Use
Power & Design
- Ametek Lamb High Air Watt 6.6" 2-Stage Tangential Bypass Motor
- Long Life Motor; Approx. 1500 Hours
- Utility Valve on The Unit Allows You To Plug Directly Into The Unit
Inverted Bag Filtration
- Provides Cyclonic Filtration With Added Inverted Bag Barrier
SR14 Central Vacuum Specs:
- 6.6" 2-Stage Tangential Bypass Motor
- Cyclonic Inverted Bag
- 6.75 Dirt Canister
- dB Rating With Vented Exhaust: 58
- Power Unit Dimensions: Diameter: 12-7/8 in / Height: 39-7/8 in
- For Homes Up To 9,500 Sq Ft
SR14 Motor Specs:
- Volts....................120
- Max Amps...........14.0
- Max Airwatts........663
- Airflow...................139 (CFM)
- Sealed Vacuum......132 (Waterlift)
-
