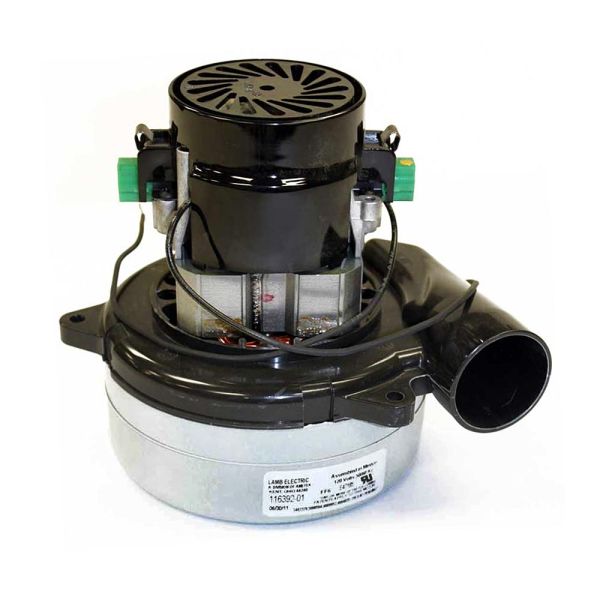

Ametek-Lamb 116392-01 Central Vacuum Motor

More Views
Product may vary from image displayed.
MT:0050

Recommendation: Click Here for 10 Reasons to Replace Your Power Unit, Instead of your Central Vacuum Motor

$171.00
In stock
SKU
MT:0050
$171.00

Compatible with the following Brands & Models
(hover over each)

  • NuToneNuTone CV450 Lower Motor, NuTone CV750 Lower Motor, NuTone CV570 Upper Motor
  • Broan Broan CV40 Upper Motor
  • Filtex Filtex FX500A Lower Motor, Filtex FX675A Requires Two of These Motors
  • AirVac AirVac FX500A Lower Motor, AirVac FX675A Requires Two of These Motors, AirVac AV525 Requires Two of These Motors
  • M&S M&S FX500A Lower Motor, M&S FX675A Requires Two of These Motors, M&S AV525 Requires Two of These Motors
This genuine Ametek-Lamb 116392-01 is one of the most common central vacuum motors in the industry today. This motor is typically used in home & commercial applications. If you choose not to replace the Ametek-Lamb 116392-01 motor and would rather upgrade your system please call us at 1-800-322-2965.
  • Replacement Part Type Motors
  • Voltage 120
  • Carbon Brush 33384

central vacuums usa

Attention Consumer

Ametek-Lamb recommends replacing your carbon brushes and motor gaskets routinely to prolong the life of your new motor. Stock up now, have your supplies on hand.

Easy Ordering
As Simple As 1-2-3
Product-Smiley
1SELECT PRODUCT OPTIONS
2 DON'T FORGET YOUR ADD YOUR "MUST HAVE ITEMS"
Final Price
$171.00
3

This genuine Ametek-Lamb 116392-01 is one of the most common central vacuum motors in the industry today, This motor is typically used in home and commercial applications. If you choose not to replace the Ametek-Lamb 116392-01 motor and would rather upgrade your system then click Central Vacuum Recommendations.

Our professional advice: If your central vacuum is over 10 to 12 years old consider replacing it with a new more modern, energy-efficient, quieter, and certainly more powerful unit. If you do decide to replace the central vacuum, it is easy and takes less than approximately 20 minutes.

We can help you find a new central vacuum motor, determine if you need to replace the motor or the entire central vacuum system. Contact our technical support team 1.800.322.2965. Most consumers choose to upgrade their central vacuum rather than hassle with motor installation.

* Rule #1, Remember to keep your old motor gasket when ordering a new replacement motor for your central vacuum! These brand new genuine Ametek Lamb motors are drop shipped directly from the manufacturer and will be coded and dated.

* In most cases, motors will arrive in 3-5 business days. In the rare event that your central vacuum motor needs to be special-ordered, it may take longer. If so, we will call with an ETA. These items are non-returnable and are not covered under our 30-day return policy.

116392-01  Motor Fits the Following Central Vacuums

NuTone

Broan

Filtex

AirVac

M&S (Music & Sound)

Replacement Part Type Motors
Voltage 120
Carbon Brush 33384
Motor Watts 1000
Motor Stages 2
Motor Speeds 1
Motor Type Series Universal
Motor Frequency 50/60Hz
Motor Fan Diameter 5.700
Fan System Style Bypass
Air Discharge Tangential
Motor Low Temp 32
Motor High Temp 104
Motor Bearing Double Ball Bearing
Motor Comm Bracket Material Aluminum
Motor Fan Bracket Material Plastic
Motor Thermal Protection None
Motor Insulation Class A
Motor Fan Shell Coat None
Motor Duty Cycle Intermittent
Motor Electrical Connection Lead Wires
Product Height (Inches) 6.333
