Disclaimer: The information on this page reflects our opinions based upon our many years of experience in the industry.
We've done all the research for you...
The Higher The Air-Watts, The Better The Pickup.
More Airwatts = More Suction Power
|Brand||Model||Suction Power||Air Watts||Warranty||Filtration||Type||Sound||Rating||See Price|

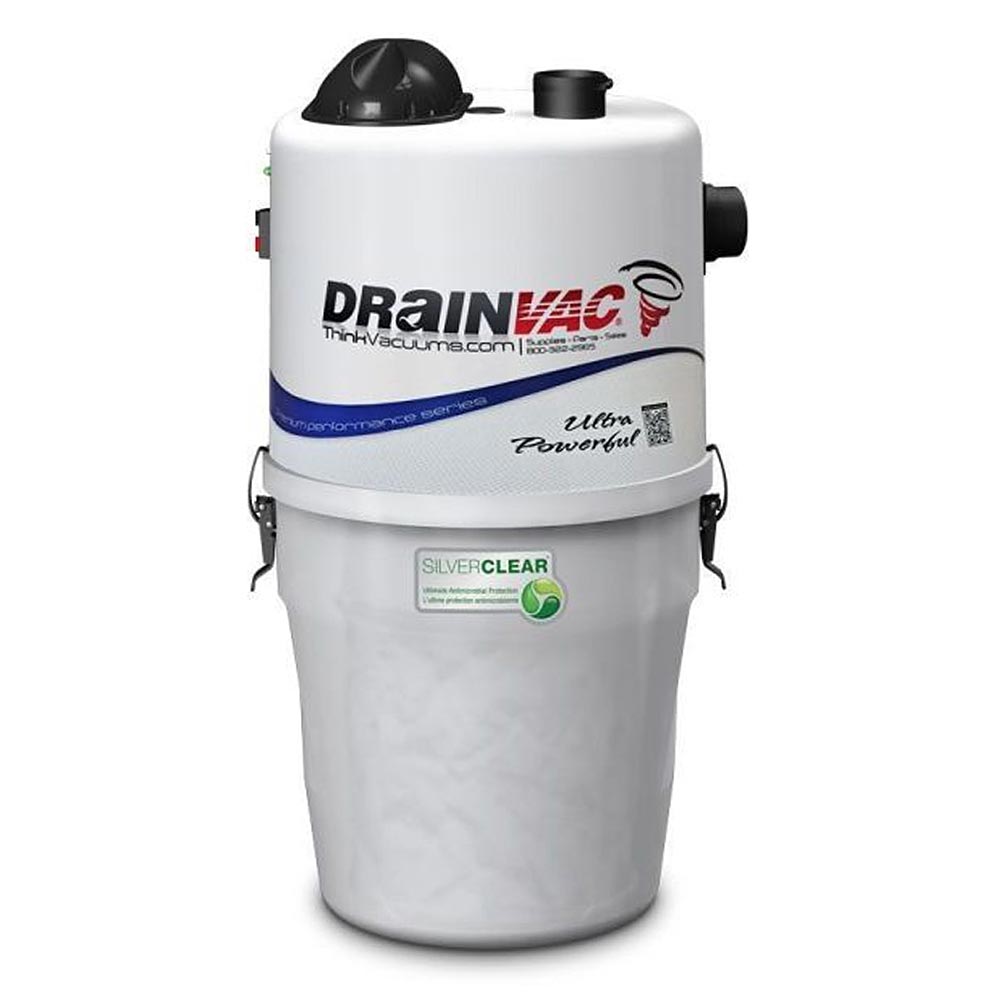

|Drainvac||T3- Turbo||900||Lifetime*||Teflon HEPA||Bag / Bagless||62||Click|

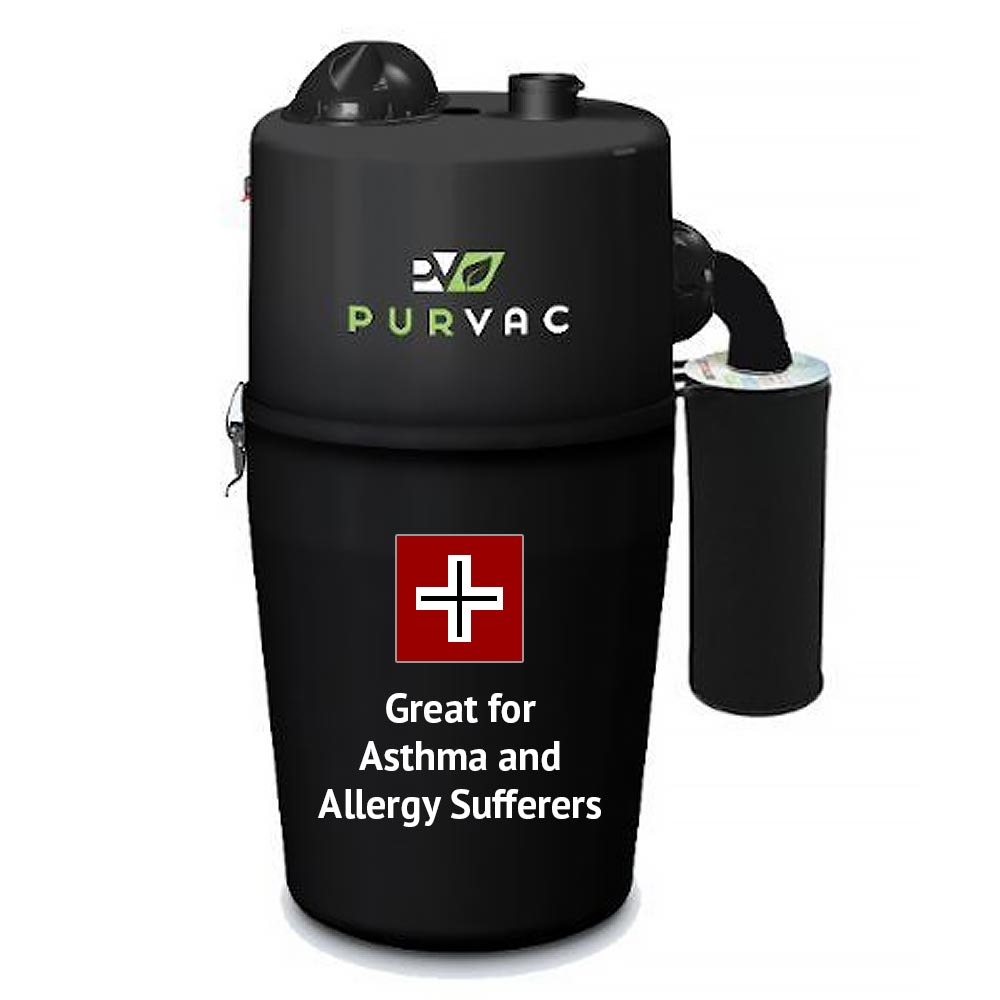

|Purvac||Great White||900||Lifetime*||Teflon HEPA||Bag / Bagless||62||Click|
|Duovac||Star Plus||806||Lifetime*||Teflon HEPA||Bag / Bagless||60||Click|
|Drainvac||T2- Viper||780||Lifetime*||Teflon HEPA||Bag / Bagless||59||Click|
|PurVac||780||Lifetime*||Teflon HEPA||Bag / Bagless||58||Click|
|Duovac||SYM180i||760||True Lifetime||HEPA Type||Bag / Bagless||59||Click|
|Drainvac||727||Lifetime*||Teflon HEPA||Bag / Bagless||58||Click|
|Duovac||SIL1609Q||708||True Lifetime||HEPA Type||Bag / Bagless||62.5||N/A|
|Drainvac||Summum||700||Lifetime*||SilverBlock||Bag / Bagless||59||Click|
|Drainvac||Generation||700||Lifetime*||SilverBlock||Bag / Bagless||59||Click|
|Cana-Vac||511-XLS||720||20 years||Micro-Tex||Bag / Bagless||57||Click|
|2000||661||Limited Life*||Double HEPA||Bagless||75||n/a|
|Riccar||RCU-H3||655||N/A||HEPA||Bag / Bagless||N/A||n/a|
|Powerstar||Optima||650||5 Years*||Teflon HEPA||Bag||63||Click|
|Dust Care||655||7 Years||Dacron||Bag / Bagless||69||Click|
|3000||653||Limited Life*||Double HEPA||Bagless||59||n/a|
|Valet||ATQ1500||630||5 Years||Teflon HEPA||Bag / Bagless||60||Click|
|Vacuflo||Maxum 7||601||Lifetime*||Triple Layer||Bag||62.0||Click|
|Nutone||PP650||650||10 Years*||Sealed HEPA||Bag / Bagless||65||Click|
|Electrolux||PU3450A||600||10 Years||CleanStream||Paper Bag||N/A||Click|
|Eureka||600||7 Years||Triumph HEPA||Bag / Bagless||N/A||N/A|
|Honeywell||590||3 Years||Teflon HEPA||Bagless||66||Click|
|Riccar||Deluxe||655||Lifetime*||HEPA Type||Bag / Bagless||N/A||Click|
|Dirt Devil||CV2600||575||5 Years||Cartridge||Cyclonic||62||N/A|
|Nutone||550||4 Years||Teflon||Bag / Bagless||74||Click|
|Hayden||SV5000||550||7 Years||Self-Cleaning||High-Efficiency Cloth||84||Click|
||Lifetime*||Cloth||Bag / Bagless||N/A||Click|
|Nutone||PP600||600||8 Years*||Sealed HEPA||Bag||68||Click|
|Allegro||MU5500||575||10 Years||Micron||Dump Out||n/a||Click|
|AirVac||AVP7500||551||10 Years||Micron||Bag / Bagless||72||Click|
|Eureka||CV137H||520||7 Years||Triumph||Bag / Bagless||76||Click|
|Allegro||MU4400||465||10 Years||Paper Bag||Dump Out||69||n/a|
|Brand||Model||Suction Power||Air Watts||Warranty||Filtration||Type||Sound||Rating||See Price|
|Drainvac||Power House||727||Lifetime*||Teflon HEPA||Bag / Bagless||58||Click|
|DuoVac||air 10||694||True Lifetime||HEPA Type||Bag / Bagless||58||Click|
|Drainvac||Little Giant||670||Lifetime*||Teflon HEPA||Bag / Bagless||58||Click|
|PurVac||Stingray||670||Lifetime*||Teflon HEPA||Bag / Bagless||58||Click|
|Drainvac||Pro 1||600||Lifetime*||SilverBlock||Bag / Bagless||59||Click|
|Cana-Vac||700-LS||625||20 Years||Micro-Tex||Bag / Bagless||55||Click|
|AspirTech||1500||591||Limited Life*||Double HEPA||Bagless||56||n/a|
|PurVac||Piranha||562||Lifetime*||Teflon HEPA||Bag / Bagless||60||Click|
|Drainvac||AC15-L||562||Lifetime*||Teflon HEPA||Bag / Bagless||60||Click|
|Simplicity||SCU-H3||600||Lifetime*||HEPA Media||Bag / Bagless||55||Click|
|Powerstar||UPS500A||560||5 Years*||Safety Filter||Bag / Bagless||55||Click|
|Cana-Vac||399-LS||465||15 Years||Micro-Tex||Bag / Bagless||57||Click|
|Valet||ATQ160||561||5 Years||Teflon HEPA||Bag / Bagless||60||Click|
|Riccar||RCU-H3||600||Lifetime*||HEPA||Bag / Bagless||N/A||Click|
|Eureka||ECV5200A||550||7 Years||Triumph HEPA||Bag / Bagless||N/A||Click|
|DuoVac||SIG1465||465||Lifetime*||HEPA Type||Bag / Bagless||62||Click|
|Honeywell||H503||540||3 Years||Teflon HEPA||Bagless||67||Click|
|Nutone||VX475||475||2 Years||Teflon||Bag / Bagless||71||Click|
|AirVac||AVP3000||537||10 Years||Micron||Bag / Bagless||72||Click|
|Eureka||CV1004B||425||7 Years||Triumph||Bag / Bagless||75||Click|
|Signature||427||412||5 Years||Cloth||Bag / Bagless||N/A||Click|
|Honeywell||H403||500||3 Years||Teflon HEPA||Bagless||67||Click|
*Lifetime typically means the whole body of the machine. Manufacturers warranties may differ, check specifications for complete details.
* The data represents peak air watts with motor tolerances as set forth by Ametek-Lamb/Domel/Electro Motor. Individual motor performance may vary due to normal manufacturing variations, accepted ranges, voltage, apertures, altitude and installation circumstances.
Clean & Easy
Unclip & Empty!
The first consumer publications on central vacuums came out in 2004, which means all machines were tested in 2003. This particular publication was generally not accepted in the central vacuum industry as accurate. There was a very small amount of vacuums tested at this time, therefore limiting the results they could of had. A lot of variables such as filtration type, bag or bagless style, quietness, etc. were left out of the equation. This means any vacuums that were featured in this publication were not compared to all the other central vacuums on the market and can be misleading. This industry changes rapidly with stronger, more quieter vacuum units and with more advanced technology going into central vacuums, consumer report magazines simply can't keep up with the changes. Our staff continuously attends vacuum conventions and seminars to make sure we are aware of all the latest advances in the central vacuum industry. The question is, do you want to make your investment based on something a writer for a magazine wrote or from the advice from a central vacuum expert? With over 30 years of experience, we eat and breath this business.
Although the different consumer magazines can be a good guide to purchasing a good central vacuum, many individual needs are not taken into consideration. For example, if you have a child that suffers from asthma you may need a certain filtration. Another example would be the sound level of a central vacuum. You may need to install the unit in a interior closet, requiring a quiet unit. They also do not talk about the units track record of service or repairs. These are just some examples of individual needs that make a in depth comparison chart a better guide when purchasing a central vacuum.
We were approached in the fall of 2009 by two popular and leading consumer magazines because of our unbiased, comprehensive and truthful knowledge of the central vacuum industry. They wanted the most of complete overview of the central vacuum industry so they could form their own opinion based on thousands of hours of research. They actually purchased the majority of the vacuums they tested. Seven of the 13 units that were purchased from us were to be tested for future publications. They choose our site to buy that day, and when we got that phone call we felt like we were on cloud 9
There are 10 universal factors that go into these ratings. These factors are power, warranty, quietness, convenience, longevity, durability, maintenance, state-of-the-art materials, number of service calls and best dollar value.
Cyclonic Central Vacs
You will hear sales people make many claims such as..100% Efficiency At All Times, No Loss of Power, NoFilters To Clean, Always Constant, No Bags To Buy,Always Cleaning With Full Power, etc.
Now...The Truth...Click Here
Selecting the Right System
When choosing a built-in central vacuum system, the process begins with the power unit. Power units vary in size, motors, separation techniques and filtration methods. All these elements directly affect the overall performance and cleaning power of any central vacuum system.
In order to evaluate and compare the different manufactured power units in the marketplace, it is important to know and understand the industry's standards by which they are measured and assessed.
Amps represent the amount of electrical current consumed by the motor during use. This implies that the more electricity the motor uses, the more powerful it is. However, this is not necessarily true. A motor that uses more electrical current does not always mean the current is being used more efficiently. Amps has nothing to do with the power of a central vacuum. Period.
Horsepower measures the power of a motor. (Central vacuums are not rated in horsepower)
Horsepower can vary according to voltages, motor loads and temperature variances, and is not an accurate measure of how well a vacuum system will pick up dirt.
Airwatts is a combination of water lift (suction) and CFM (airflow). This is the truest measure of cleaning power. 97% of all central vacuum manufactures measure the power of their units by Airwatts. Maximum Airwatts is recognized by the American Society of Testing and Materials (ASTM) as the best way to measure the actual cleaning power of a central vacuum system. Other misleading terms such as Airflow, CFM's and Waterlift are not a true measurement of power, but rather part of an equation that equals Airwatts.
Airwatts is the only recognized testing method as set forth by the American Society of Testing and Materials. F558-98 Standard Test Method for Measuring Air Performance Characteristics of Vacuum Cleaners that tests the actual (suction) cleaning power of a central vacuum.
Waterlift is NOT a true measure of suction, however it is a form of measurement and part of the equation when measuring Air Watts. This is the most misleading measurement of suction power. Please note certain companies will inflate this number to influence a consumer by making the suction power appear stronger - Wrong!
This measures the maximum volume of air the motor is capable of moving and works in tandem with "Suction". Maximum CFM ratings occur when the vacuum system if operating without restrictions to airflow. In normal vacuuming conditions, hoses, cleaning attachments, bags, filters and accumulated dust create restrictions to airflow, reducing the CFM.
Airflow can be a bit confusing however, since performance measurements are taken from the motor and do not factor any resistance found in a typical central vacuum system. Filtration, piping, hoses and accessories all restrict and reduce the amount of actual Airflow a system has. While Airflow is important to system performance, Suction or the "pulling of air" maintains the Airflow velocity necessary to sweep dirt and debris away at the hose end where vacuuming takes place.
CFM alone is NOT a good indicator of vacuum cleaning performance, or a true measure of suction, however it is a form of measurement and part of the equation when measuring Air Watts. This is a misleading measurement of suction power. Please note certain companies will lower this number in order to inflate the waterlift. This is done to influence a consumer by making the suction power appear stronger - Wrong!
What is an airwatt anyway? This is the truest measurement of suction power.
An "airwatt" is derived by mathematically combining two crucial performance measures for any vacuum. These are "Waterlift", which measures the power of a vacuum, and "CFM" - Cubic Feet of Air Moved per Minute. Both measures are important to the performance of your vacuum. In order to get a full picture when comparing two vacuum units, it is always advisable to compare all three parameters.
Airwatt is the only recognized testing method as set forth by the American Society of Testing and Materials (ASTM)* F558-98 Standard Test Method for Measuring Air Performance Characteristics of Vacuum Cleaners that tests the actual cleaning power of a vacuum.
HEPA rated media helps remove microscopically small dirt particles, much more so than conventional filter materials. The very best filtration in the central vacuum industry. Ideal for allergy and asthma sufferers, a must-have for every central vacuum.
Installing the right power unit in your home is critical to the overall performance of a central vacuum system, and insures you the customer having total satisfaction.
POWER UNIT SELECTION
We recommend the power unit based on the size of a home, the longest run of tubing and the number of inlet valves. These figures are estimates, and need to be used in conjunction with the actual tube layout and valve placement.
RECOMMENDED NUMBER OF INLET VALVES
When determining the number of inlet valves it is important to provide maximum coverage with a minimum number of inlet valves. However, there is not a maximum number of valves per unit. As a general rule of thumb, the approximate number of inlet valves needed for a home can be calculated by dividing the total square footage by 600 (if a 30-foot hose is being used).
THE LONGEST RUN OF TUBING
Excessively long tube runs can affect performance. Therefore, the length of tubing running from the exhaust location to the furthest inlet valve from the power unit should be no longer than the recommended amount.
|False||Built-in systems are hard to install.|
Built-in systems can be installed during construction of a new home or can easily be retrofitted in existing homes! It's extremely easy to install. Any central vacuum unit may be installed virtually anywhere in your home: a basement, garage (preferable), closet pantry, or a crawl space. Most companies prefer using a bagged system versus bagless for more hygienic reasons.
|False||Installation can't be completed in one day.|
Installation of the thin wall PVC piping and the PVC fittings, installing the wall inlet valves, running the low voltage wire to the valves and mounting the power unit can be accomplished in most homes in less than one day!
|False||Built-in central vacuum cleaning systems are a rich person's indulgence.|
Innovation in designing and function continues to bring greater convenience and superior cleaning results for considerably less money than might be expected, in many cases for less than the cost of portables.
Central Vacuum PVC Pipe vs Plumbing PVC Pipe
100% of the companies in America will tell you; never use regular plumbing pvc when installing a central vacuum system in your home. Plumbing pvc inside wall surfaces are too rough and elbows are too tight, and will provide insufficient air flow. Central vacuum pvc pipe has a thin wall and will prevent clogging for many years to come. This thin wall is a schedule 20 gauge as apposed to a schedule 40 gauge. We will only sell you the highest
quality virgin thin wall pvc tubing (new style easy fit bell ends). NO REGRINDS. We only use top quality fittings which are made in stainless steel molds and are 25% heavier than inferior fittings.
